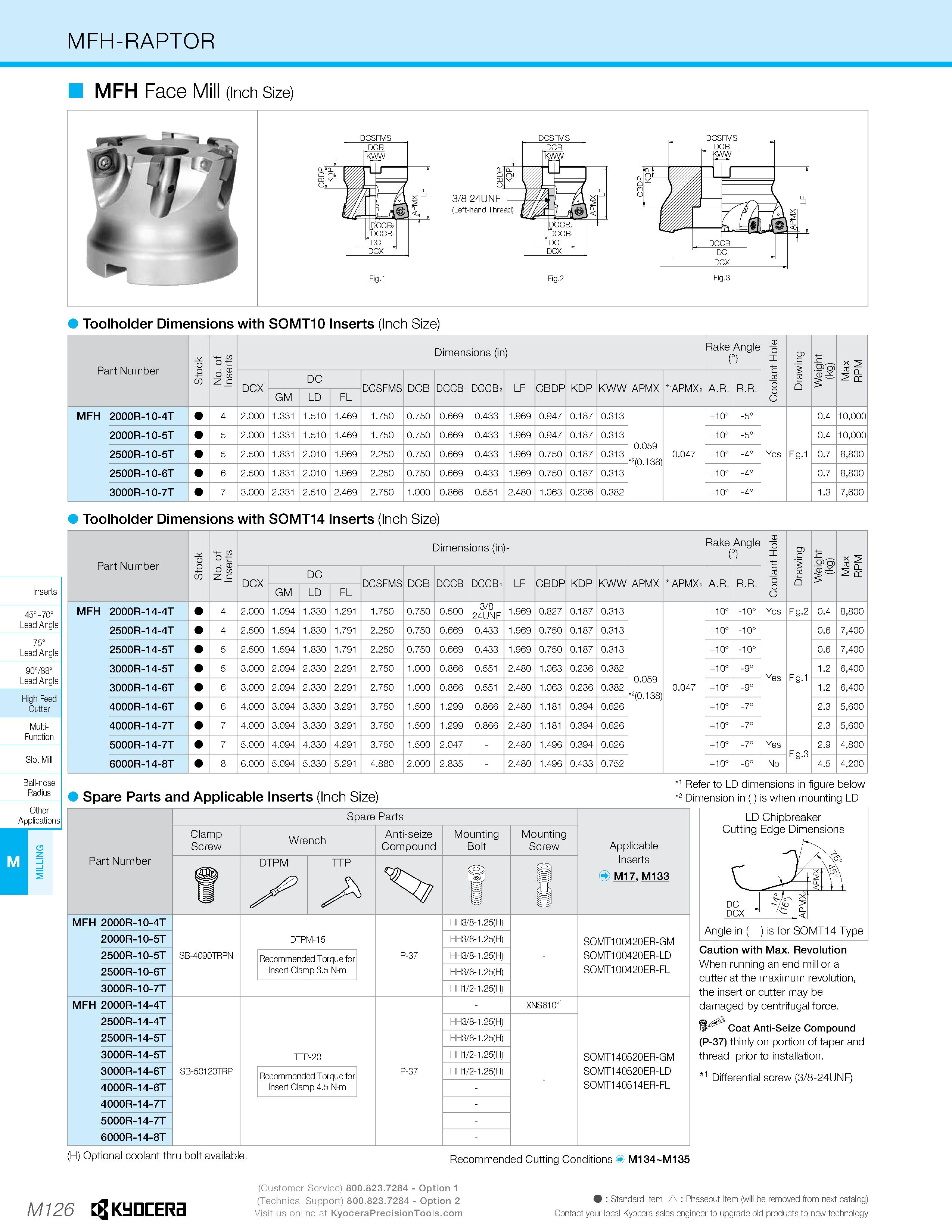

MFH-RAPTOR MFH Face Mill (Inch Size) Toolholder Dimensions with SOMTIO Inserts (Inch Size) Part Number o No. of Inserts Dimensions (in) Rake Angle n 0 o X Drawing £ Max RPM DCX DC DCB DCCB DCCBs LF CBDP KDP KWW APMX apmx2 A.R. R.R. O 0 5 GM LD FL o MFH 2000R-10-4T 4 2.000 1.331 1.510 1.469 1.750 0.750 0.669 0.433 1.969 0.947 0.187 0.313 +10° -5° 0.4 10,000 2000R-10-5T 5 2.000 1.331 1.510 1.469 1.750 0.750 0.669 0.433 1.969 0.947 0.187 0.313 0.059 2(0.138) +10° -5° 0.4 10,000 2500R-10-5T 5 2.500 1.831 2.010 1.969 2.250 0.750 0.669 0.433 1.969 0.750 0.187 0.313 0.047 +10° -4° Yes Fig-1 0.7 8,800 2500R-10-6T 6 2.500 1.831 2.010 1.969 2.250 0.750 0.669 0.433 1.969 0.750 0.187 0.313 +10° -4° 0.7 8,800 3000R-10-7T 7 3.000 2.331 2.510 2.469 2.750 1.000 0.866 0.551 2.480 1.063 0.236 0.382 +10° -4° 1.3 7,600 Toolholder Dimensions with SOMT14 Inserts (Inch Size) Part Number o No. of Inserts Dimensions (in)- Rake Angle n 0 o X Drawing £ Max RPM DCX DC DCSFMS DCB DCCB DCCBs LF CBDP KDP KWW APMX apmx2 A.R. R.R. O 0 5 GM LD FL MFH 2000R-14-4T 4 2.000 1.094 1.330 1.291 1.750 0.750 0.500 3/8 24UNF 1.969 0.827 0.187 0.313 + 0° -10° Yes Fig.2 0.4 8,800 2500R-14-4T 4 2.500 1.594 1.830 1.791 2.250 0.750 0.669 0.433 1.969 0.750 0.187 0.313 + 0° -10° 0.6 7,400 2500R-14-5T 5 2.500 1.594 1.830 1.791 2.250 0.750 0.669 0.433 1.969 0.750 0.187 0.313 + 0° -10° 0.6 7,400 3000R-14-5T 5 3.000 2.094 2.330 2.291 2.750 1.000 0.866 0.551 2.480 1.063 0.236 0.382 0.059 2(0.138) + 0° -9° Yes Fig.1 1.2 6,400 3000R-14-6T 6 3.000 2.094 2.330 2.291 2.750 1.000 0.866 0.551 2.480 1.063 0.236 0.382 0.047 + 0° -9° 1.2 6,400 4000R-14-6T 6 4.000 3.094 3.330 3.291 3.750 1.500 1.299 0.866 2.480 1.181 0.394 0.626 + 0° -7° 2.3 5,600 4000R-14-7T 7 4.000 3.094 3.330 3.291 3.750 1.500 1.299 0.866 2.480 1.181 0.394 0.626 + 0° -7° 2.3 5,600 5000R-14-7T 7 5.000 4.094 4.330 4.291 3.750 1.500 2.047 - 2.480 1.496 0.394 0.626 + 0° -7° Yes Fig.3 2.9 4,800 6000R-14-8T 8 6.000 5.094 5.330 5.291 4.880 2.000 2.835 - 2.480 1.496 0.433 0.752 + 0° -6° No 4.5 4,200 45" 70" Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Spare Parts and Applicable Inserts (Inch Size) 1 Refer to LD dimensions in figure below Dimension in ) is when mounting LD Part Number Spare Parts Applicable Inserts M>) M17. M133 Clamp Screw Wrench Anti-seize Compound Mounting Bolt Mounting Screw u DTPM TTP MFH 2000R-10-4T SB-4090TRPN DTPM-15 P-37 HH3/8- 1.25(H) SOMT100420ER-GM SOMT100420ER-LD SOMT100420ER-FL 2000R-10-5T HH3/8- 1.25(H) 2500R-10-5T Recommended Torque for Insert Clamp 3.5 N-m HH3/8- 1.25(H) 2500R-10-6T HH3/8- 1.25(H) 3000R-10-7T HH1/2- 1.25(H) MFH 2000R-14-4T XNS610” 2500R-14-4T HH3/8- 1.25(H) 2500R-14-5T HH3/8- 1.25(H) 3000R-14-5T TTP-20 HH1/2- 1.25(H) SOMT140520ER-GM 3000R-14-6T SB-50120TRP P-37 HH1/2- 1.25(H) SOMT140520ER-LD 4000R-14-6T Insert Clamp 4.5 N-m SQMT140514ER-FL 4000R-14-7T 5000R-14-7T 6000R-14-8T LD Chipbreaker Cutting Edge Dimensions Angle in ( ) is for SOMT14 Type Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. 1 Differential screw (3/8-24UNF) (H) Optional coolant thru bolt available. Recommended Cutting Conditions M134 M135 M126 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
