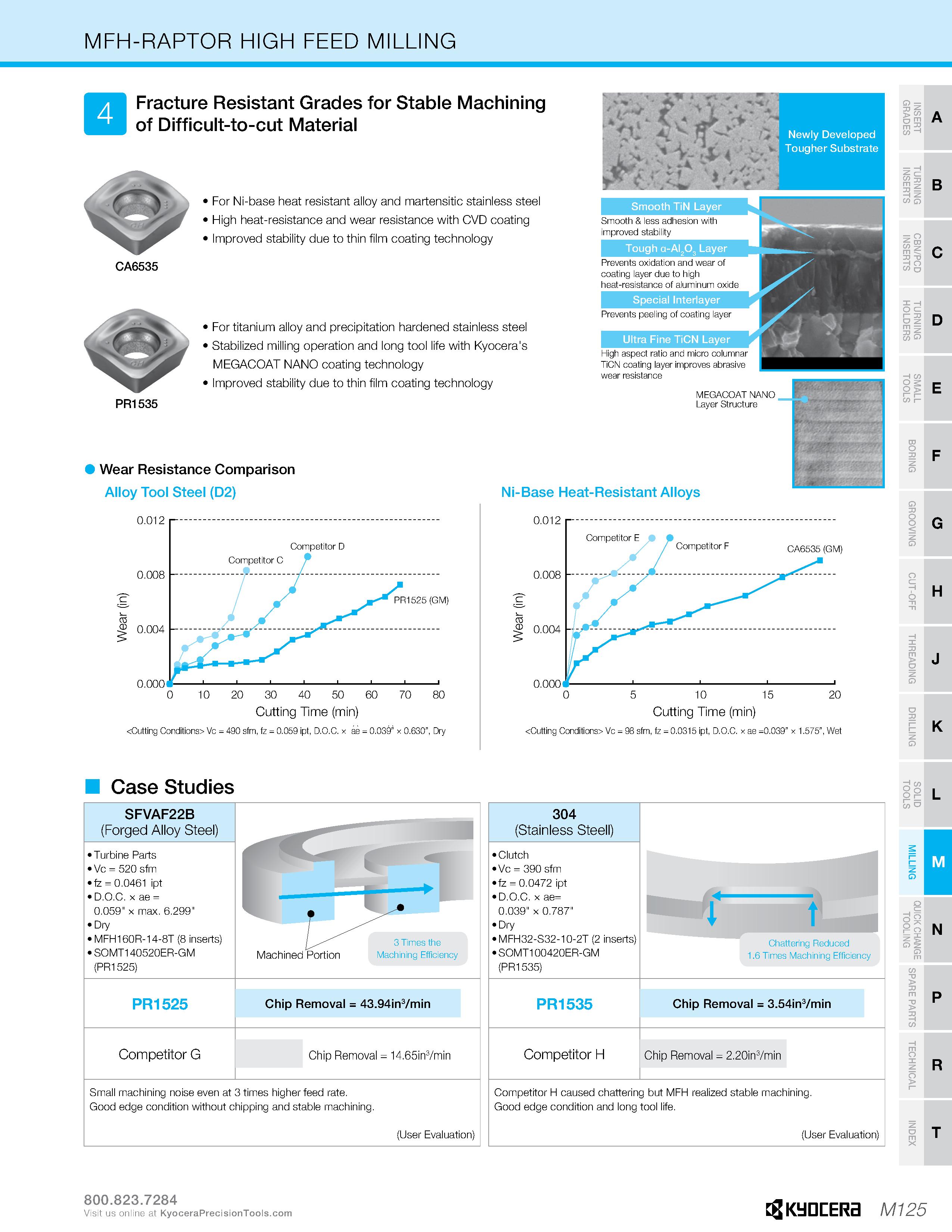

MFH-RAPTOR HIGH FEED MILLING Fracture Resistant Grades for Stable Machining of Difficult-to-cut Material 'O' Newly Developed Tougher Substrate CA6535 1 For Ni-base heat resistant alloy and martensitic stainless steel 1 High heat-resistance and wear resistance with CVD coating 1 Improved stability due to thin film coating technology 1 For titanium alloy and precipitation hardened stainless steel 1 Stabilized milling operation and long tool life with Kyocera's MEGACOAT NANO coating technology 1 Improved stability due to thin film coating technology I l Smooth & less adhesion with improved stability Prevents oxidation and wear of coating layer due to high heat-resistance of aluminum oxide BW Prevents peeling of coating layer PR1535 Wear Resistance Comparison Alloy Tool Steel (D2) Cutting Time (min) Cutting Conditions> Vc = 490 sfm, fz = 0.059 ipt, D.O.C. x ae = 0.039" x 0.630”, Dry Ni-Base Heat-Resistant Alloys High aspect ratio and micro columnar TiCN coating layer improves abrasive wear resistance Cutting Time (min) Cutting Conditions> Vc = 98 sfm, fz = 0.0315 ipt, D.O.C. x ae =0.039” x 1.575”, Wet =5 > o g m 2 c/> “ B T> U S8 O cz I- T> O m = H K Case Studies SFVAF22B (Forged Alloy Steel) c 1 Turbine Parts Vc = 520 sfm fz = 0.0461 ipt D.O.C. x ae 0.059" X max. 6.299" Dry MFH160R-14-8T (8 inserts) SOMT140520ER-GM (PR1525) T "t r> /3 Times the Machined Portion PR1525 Chip Removal = 43.94in3/min Competitor G Chip Removal = 14.65in3/min Small machining noise even at 3 times higher feed rate. Good edge condition without chipping and stable machining. (User Evaluation) 304 (Stainless Steell) Clutch Vc = 390 sfm fz = 0.0472 ipt D.O.C. x ae= 0.039" x 0.787" Dry i t MFH32-S32-10-2T (2 inserts) SOMT100420ER-GM (PR1535) Chattering Reduced 1.6 Times Machining Efficiency PR1535 Chip Removal = 3.54in3/min Competitor H Chip Removal = 2.20in3/min Competitor H caused chattering but MFH realized stable machining. Good edge condition and long tool life. (User Evaluation) N KMnrFRrl Visitusonlineat IXJULLIXU IVI I
