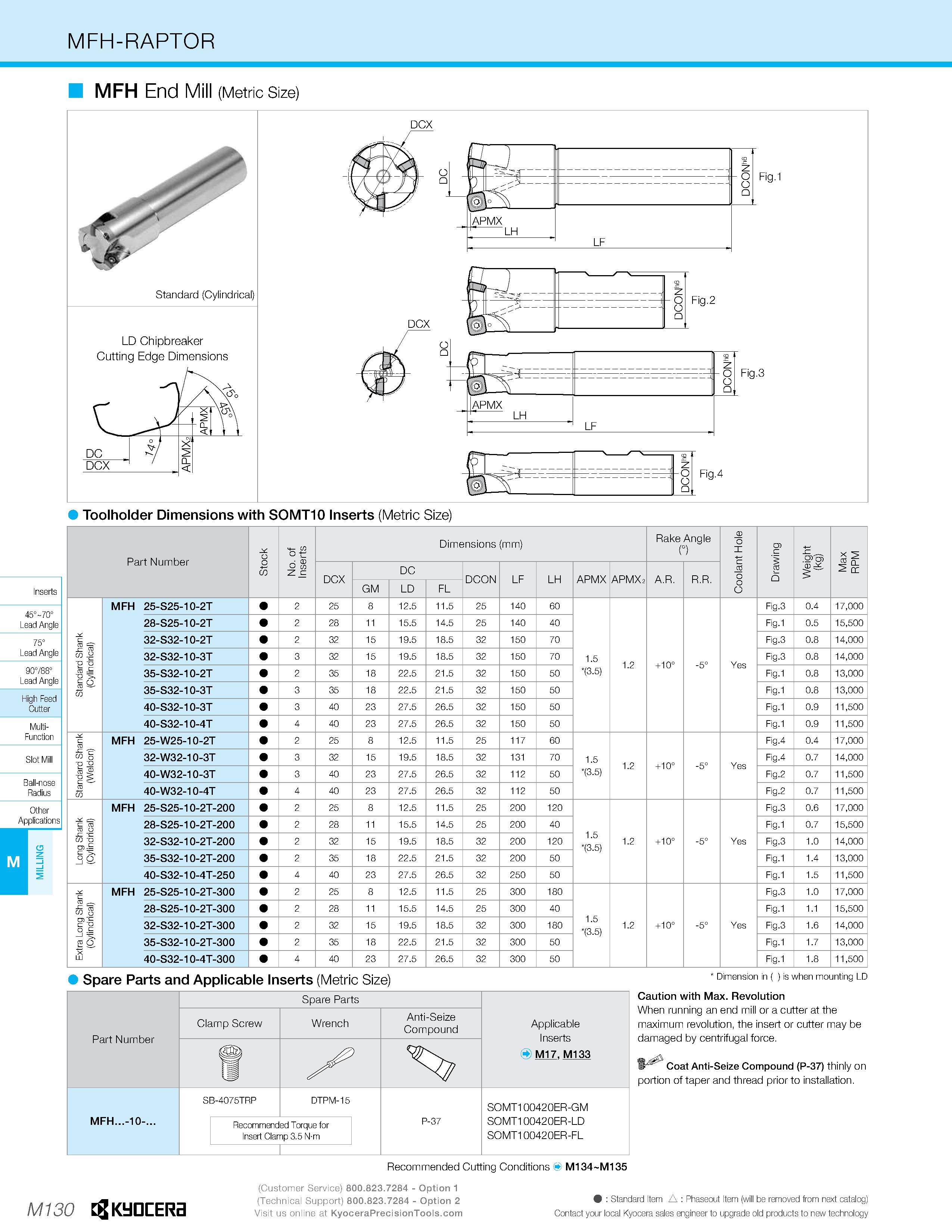

MFH-RAPTOR MFH End Mill (Metric Size) Toolholder Dimensions with SOMTIO Inserts (Metric Size) Part Number o No. of Inserts Dimensions (mm) Rake Angle n 0 o X Drawing £ Max RPM DCX DC DCON LF LH APMX APMX2 A.R. R.R. O CD 5 GM LD FL MFH 25-S25-10-2T 2 25 8 12.5 11.5 25 140 60 Fig.3 0.4 17,000 28-S25-10-2T 2 28 11 15.5 14.5 25 140 40 Fig-1 0.5 15,500 32-S32-10-2T 2 32 15 19.5 18.5 32 150 70 Fig.3 0.8 14,000 o 32-S32-10-3T 3 32 15 19.5 18.5 32 150 70 1.5 1.2 +10° -5° Yes Fig.3 0.8 14,000 "O 35-S32-10-2T 2 35 18 22.5 21.5 32 150 50 (3.5) Fig.1 0.8 13,000 35-S32-10-3T 3 35 18 22.5 21.5 32 150 50 Fig.1 0.8 13,000 40-S32-10-3T 3 40 23 27.5 26.5 32 150 50 Fig.1 0.9 11,500 40-S32-10-4T 4 40 23 27.5 26.5 32 150 50 Fig.1 0.9 11,500 £Z MFH 25-W25-10-2T 2 25 8 12.5 11.5 25 117 60 Fig.4 0.4 17,000 w o 32-W32-10-3T 3 32 15 19.5 18.5 32 131 70 1.5 1.2 +10° -5° Yes Fig.4 0.7 14,000 g £ 40-W32-10-3T 3 40 23 27.5 26.5 32 112 50 (3.5) Fig.2 0.7 11,500 40-W32-10-4T 4 40 23 27.5 26.5 32 112 50 Fig.2 0.7 11,500 MFH 25-S25-10-2T-200 2 25 8 12.5 11.5 25 200 120 Fig.3 0.6 17,000 c "cc 28-S25-10-2T-200 2 28 11 15.5 14.5 25 200 40 1.5 (3.5) Fig.1 0.7 15,500 “Q 32-S32-10-2T-200 2 32 15 19.5 18.5 32 200 120 1.2 +10° -5° Yes Fig.3 1.0 14,000 35-S32-10-2T-200 2 35 18 22.5 21.5 32 200 50 Fig.1 1.4 13,000 40-S32-10-4T-250 4 40 23 27.5 26.5 32 250 50 Fig.1 1.5 11,500 £Z MFH 25-S25-10-2T-300 2 25 8 12.5 11.5 25 300 180 Fig.3 1.0 17,000 o 28-S25-10-2T-300 2 28 11 15.5 14.5 25 300 40 1.5 (3.5) Fig.1 1.1 15,500 CD J -C T3 O C 32-S32-10-2T-300 2 32 15 19.5 18.5 32 300 180 1.2 +10° -5° Yes Fig.3 1.6 14,000 2 o 35-S32-10-2T-300 2 35 18 22.5 21.5 32 300 50 Fig.1 1.7 13,000 LU 40-S32-10-4T-300 4 40 23 27.5 26.5 32 300 50 Fig.1 1.8 11,500 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Spare Parts and Applicable Inserts (Metric Size) Part Number MFH...-10-... Spare Parts Clamp Screw Wrench Recommended Torque for Insert Clamp 3.5 N-m i Anti-Seize Compound Applicable Inserts M M17. M133 Dimension in ( ) is when mounting LD Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. SOMT10042OER-GM SOMT100420ER-LD SOMT100420ER-FL Recommended Cutting Conditions M134 M135 M130 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
