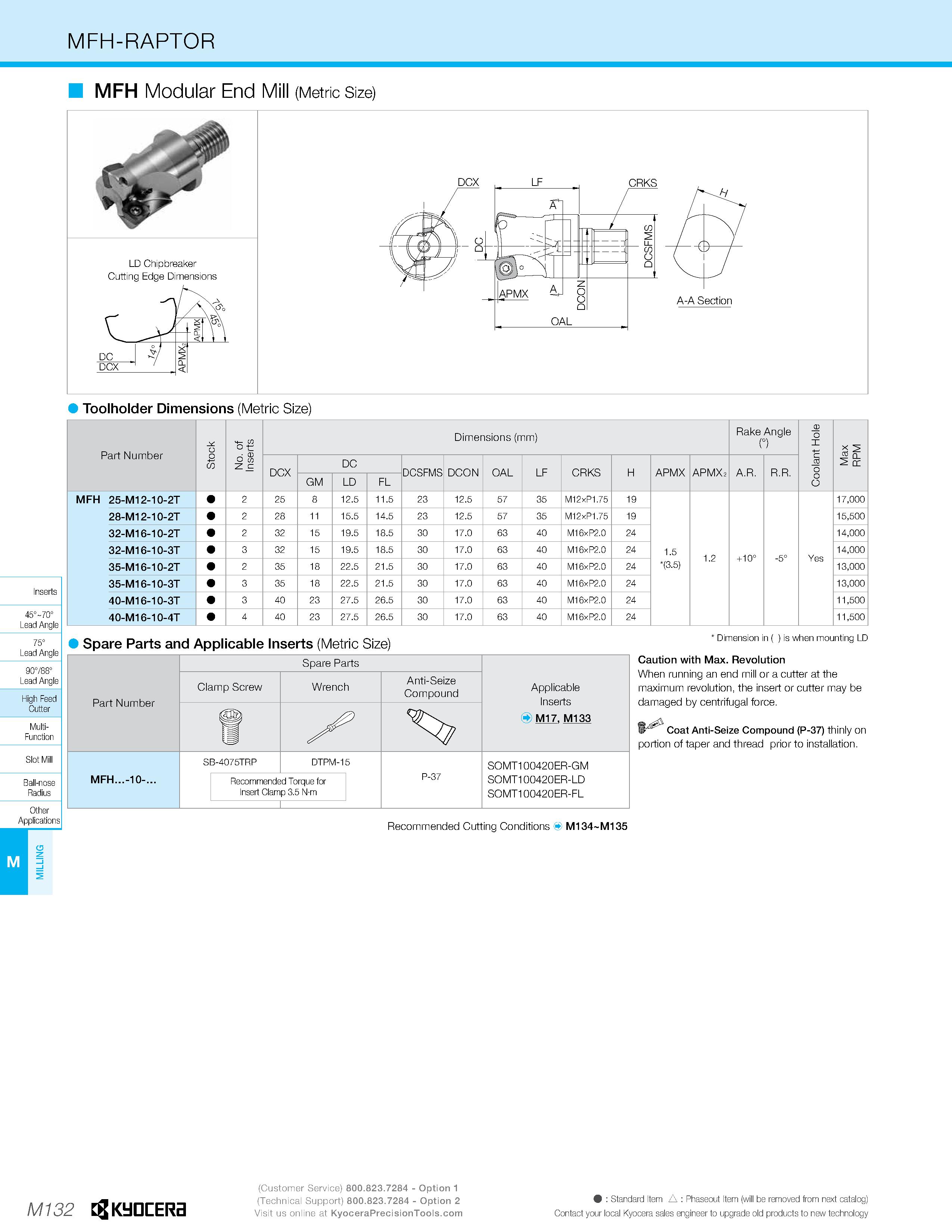

MFH-RAPTOR MFH Modular End Mill (Metric Size) Toolholder Dimensions (Metric Size) Inserts 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function Slot Mill B all-nose Radius Other Applications (5 M Part Number o No. of Inserts Dimensions (mm) Rake Angle n 0 o X Max RPM DCX DC DCSFMS DCON OAL LF CRKS H APMX APMX2 A.R. R.R. o GM LD FL MFH 25-M12-10-2T 2 25 8 12.5 11.5 23 12.5 57 35 M12xP1.75 19 17,000 28-M12-10-2T 2 28 11 15.5 14.5 23 12.5 57 35 M12xP1.75 19 15,500 32-M16-10-2T 2 32 15 19.5 18.5 30 17.0 63 40 M16xP2.0 24 14,000 32-M16-10-3T 3 32 15 19.5 18.5 30 17.0 63 40 M16xP2.0 24 1.5 1.2 +10° -5° Yes 14,000 35-M16-10-2T 2 35 18 22.5 21.5 30 17.0 63 40 M16xP2.0 24 (3.5) 13,000 35-M16-10-3T 3 35 18 22.5 21.5 30 17.0 63 40 M16xP2.0 24 13,000 40-M16-10-3T 3 40 23 27.5 26.5 30 17.0 63 40 M16xP2.0 24 11,500 40-M16-10-4T 4 40 23 27.5 26.5 30 17.0 63 40 M16xP2.0 24 11,500 Spare Parts and Applicable Inserts (Metric Size) Part Number MFH...-10-... Spare Parts Clamp Screw Wrench Recommended Torque for Insert Clamp 3.5 N-m Anti-Seize Compound Applicable Inserts (3)M17. M133 SOMT100420ER-GM SOMT100420ER-LD SOMT100420ER-FL Dimension in ( ) is when mounting LD Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. Recommended Cutting Conditions M134 M135 M132 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
