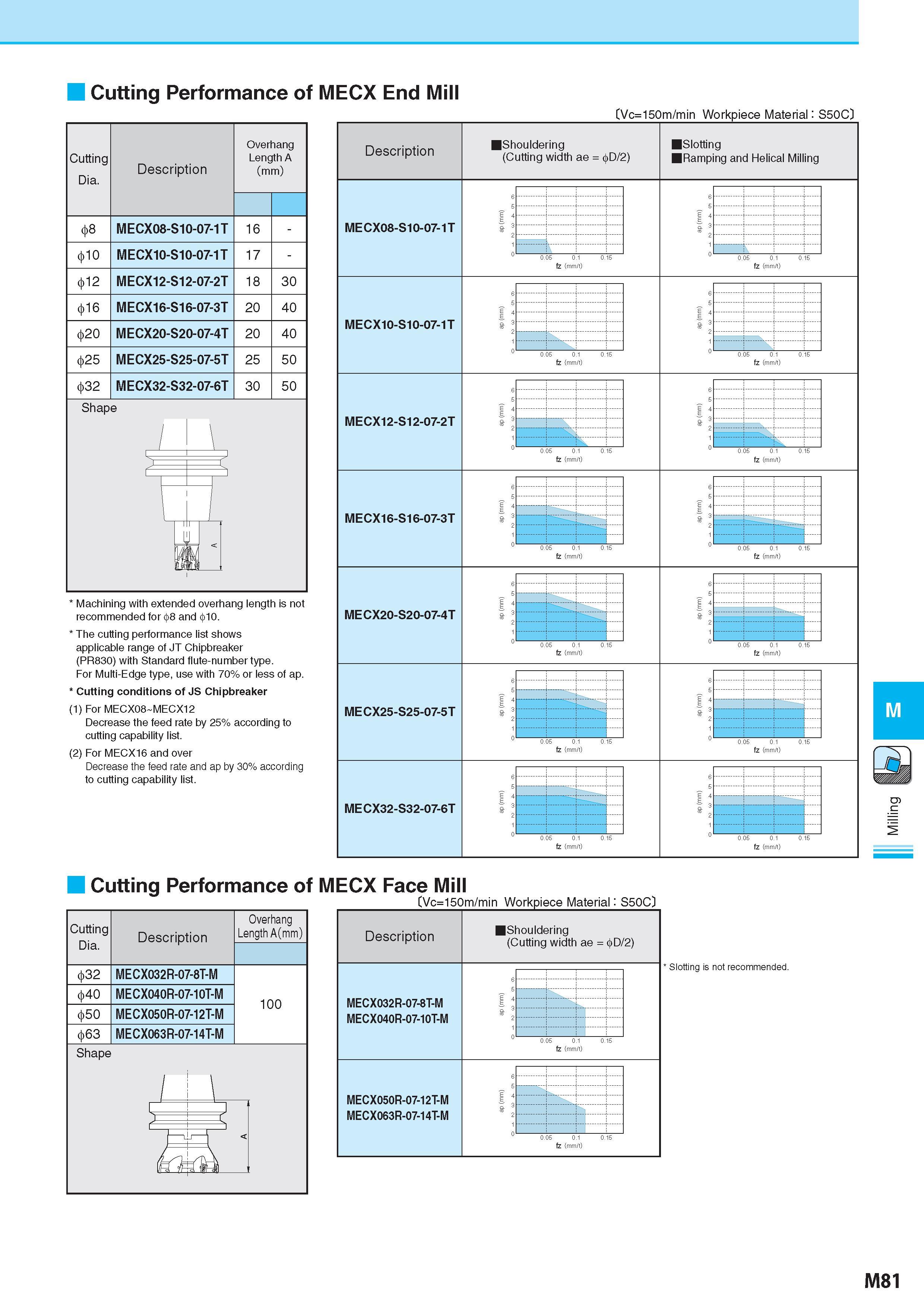

Cutting Performance of MECX End Mill (Vc=150m/min Workpiece Material Обрабатываемый материал : S50C) Cutting Dia. Description Обозначение Overhang Length A (mm) 8 MECX08-S10-07-1T 16 - 10 MECX10-S10-07-1T 17 - 12 MECX12-S12-07-2T 18 30 16 MECX16-S16-07-3T 20 40 20 MECX20-S20-07-4T 20 40 25 MECX25-S25-07-5T 25 50 32 MECX32-S32-07-6T 30 50 Shape Machining with extended overhang length is not recommended for 8 and 10. The cutting performance list shows applicable range of JT Chipbreaker Стружколом сменной пластины (PR830) with Standard flute-number type. For Multi-Edge type, use with 70% or less of ap. Cutting conditions of JS Chipbreaker Стружколом сменной пластины (1) For MECX08 MECX12 Decrease the feed rate by 25% according to cutting capability list. (2) For MECX16 and over Decrease the feed rate and ap by 30% according to cutting capability list. Description Обозначение MECX08-S10-07-1T MECX10-S10-07-1T MECX12-S12-07-2T MECX16-S16-07-3T MECX20-S20-07-4T MECX25-S25-07-5T MECX32-S32-07-6T IShouldering (Cutting width ae = D/2) 0.05 0.1 0.15 fz (mm/t; 0.05 0.1 0.15 fz (mm/t; 4 0.05 0.1 0.15 fz (mm/t) fz (mm/t; ap (mm) 1 i 1 1 fz (mm/t) 0.05 0.1 0.15 fz (mm/t; Slotting Ramping and Helical Milling 0.05 0.1 0.15 fz (mm/t; 0.05 0.1 0.15 fz (mm/t; 0.05 0.1 0.15 fz (mm/t; 0.05 0.1 0.15 fz (mm/t; fz (mm/t; fz (mm/t. fz (mm/t. IZ (mm/t. Cutting Performance of MECX Face Mill Cutting Dia. Description Обозначение Overhang Length A(mm) 32 MECX032R-07-8T-M 100 40 MECX040R-07-10T-M 50 MECX050R-07-12T-M 63 MECX063R-07-14T-M Shape Description Обозначение Shouldering (Cutting width ae = D/2) MECX032R-07-8T-M MECX040R-07-10T-M ap (mm) 0.05 0.1 0.15 fz (mm/t) MECX050R-07-12T-M MECX063R-07-14T-M ap (mm) fz (mm/t) ' Slotting is not recommended. M81
