828 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M78

Каталог KYOCERA 2017 Инструмент режущий Стр. M78 0828 Lab2u

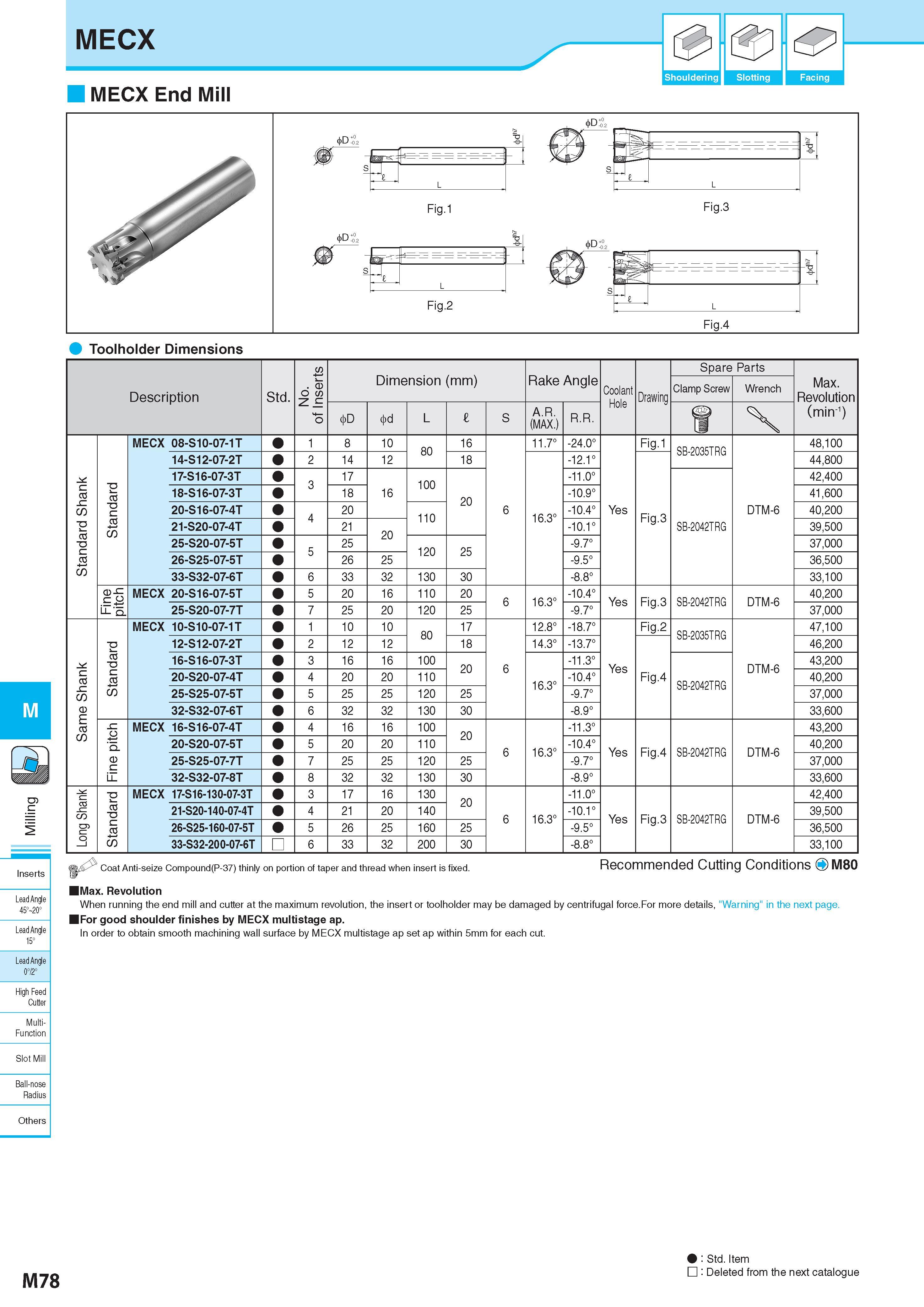

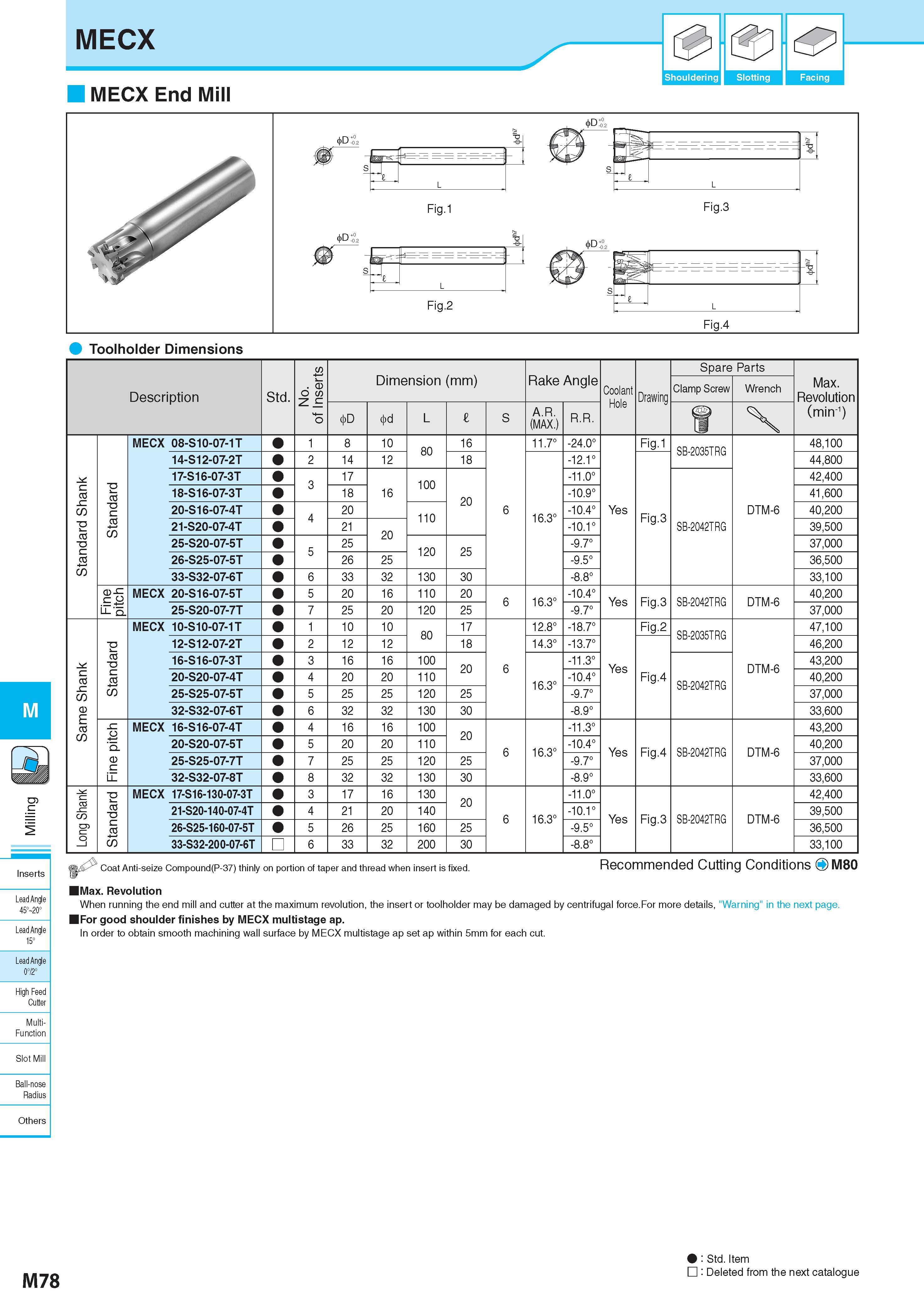

MECX w Shouldering 1 Slotting Facing MECX End Mill Fig.4 Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Drawing Spare Parts Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) Clamp Screw Wrench L I S A.R. (MAX.) R.R. s X Standard Shank "O to T3 C .2 MECX 08-S10-07-1T 1 8 10 80 16 6 11.7° -24.0° Yes Fig.1 SB-2035TRG DTM-6 48,100 14-S12-07-2T 2 14 12 18 16.3° -12.1° Fig.3 44,800 17-S16-07-3T 3 17 16 100 20 -11.0° SB-2042TRG 42,400 18-S16-07-3T 18 -10.9° 41,600 20-S16-07-4T 4 20 110 -10.4° 40,200 21-S20-07-4T 21 20 -10.1° 39,500 25-S20-07-5T 5 25 120 25 -9.7° 37,000 26-S25-07-5T 26 25 -9.5° 36,500 33-S32-07-6T 6 33 32 130 30 -8.8° 33,100 CD -C MECX 20-S16-07-5T 5 20 16 110 20 6 16.3° -10.4° Yes Fig.3 SB-2042TRG DTM-6 40,200 25-S20-07-7T 7 25 20 120 25 -9.7° 37,000 Same Shank "O to T3 n s MECX 10-S10-07-1T 1 10 10 80 17 6 12.8° -18.7° Yes Fig.2 SB-2035TRG DTM-6 47,100 12-S12-07-2T 2 12 12 18 14.3° -13.7° Fig.4 46,200 16-S16-07-3T 3 16 16 100 20 16.3° -11.3° SB-2042TRG 43,200 20-S20-07-4T 4 20 20 110 -10.4° 40,200 25-S25-07-5T 5 25 25 120 25 -9.7° 37,000 32-S32-07-6T 6 32 32 130 30 -8.9° 33,600 .C tc CD in U MECX 16-S16-07-4T 4 16 16 100 20 6 16.3° -11.3° Yes Fig.4 SB-2042TRG DTM-6 43,200 20-S20-07-5T 5 20 20 110 -10.4° 40,200 25-S25-07-7T 7 25 25 120 25 -9.7° 37,000 32-S32-07-8T 8 32 32 130 30 -8.9° 33,600 Long Shank "O to T3 n .2 MECX 17-S16-130-07-3T 3 17 16 130 20 6 16.3° -11.0° Yes Fig.3 SB-2042TRG DTM-6 42,400 21-S20-140-07-4T 4 21 20 140 -10.1° 39,500 26-S25-160-07-5T 5 26 25 160 25 -9.5° 36,500 33-S32-200-07-6T 6 33 32 200 30 -8.8° 33,100 Inserts 45° 20° 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Coat Anti-seize Compound(P-37) thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions Рекомендованные режимы резания на станках O M80 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force.For more details, "Warning" in the next page. For good shoulder finishes by MECX multistage ap. In order to obtain smooth machining wall surface by MECX multistage ap set ap within 5mm for each cut. M78 : Std. Item Стандартная позиция : Deleted from the next catalogue
