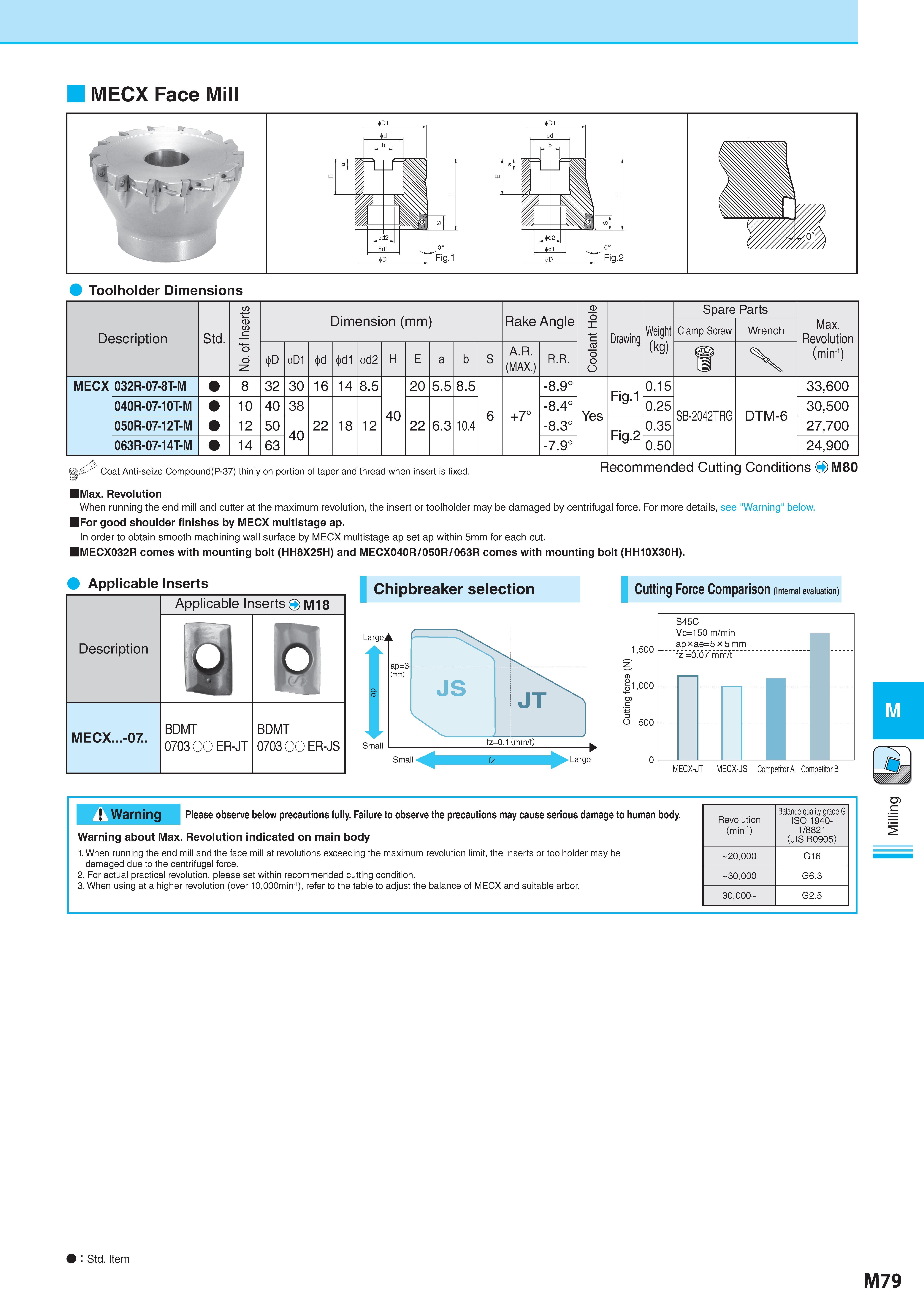

MECX Face Mill Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Drawing Weight (kg) Вес инструмента в кг (kg) Spare Parts Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) Clamp Screw Wrench D1 d 4>d1 d2 H E a b S A.R. (MAX.) R.R. X MECX 032R-07-8T-M N 8 32 30 16 14 8.5 40 20 5.5 8.5 6 +7° -8.9° Yes Fig.1 0.15 SB-2042TRG DTM-6 33,600 040R-07-10T-M N 10 40 38 22 18 12 22 6.3 10.4 -8.4° 0.25 30,500 050R-07-12T-M N 12 50 40 -8.3° Fig.2 0.35 27,700 063R-07-14T-M N 14 63 ° - 0.50 24,900 Coat Anti-seize Compound(P-37) thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions Рекомендованные режимы резания на станках O M80 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. For more details, see "Warning" below. For good shoulder finishes by MECX multistage ap. In order to obtain smooth machining wall surface by MECX multistage ap set ap within 5mm for each cut. MECX032R comes with mounting bolt (HH8X25H) and MECX040R/050R/063R comes with mounting bolt (HH10X30H). Applicable Inserts Description Обозначение Applicable Inserts M18 o MECX...-07. BDMT 0703 OO ER-JT BDMT 0703 OO ER-JS Chipbreaker Стружколом сменной пластины selection Cutting Force Comparison (Internal evaluation) S45C Vc=150 m/min apxae=5x5 mm "fz =o:o7 mm/t 1 MECX-JT MECX-JS Competitor A Competitor B C 500 0 Warning Please observe below precautions fully. Failure to observe the precautions may cause serious damage to human body. Warning about Max. Revolution indicated on main body 1. When running the end mill and the face mill at revolutions exceeding the maximum revolution limit, the inserts or toolholder may be damaged due to the centrifugal force. 2. For actual practical revolution, please set within recommended cutting condition. 3. When using at a higher revolution (over 10,000min-1), refer to the table to adjust the balance of MECX and suitable arbor. Revolution (min-1) Balance quality grade G ISO 19401/8821 (JIS B0905) 20,000 G16 30,000 G6.3 30,000- G2.5 : Std. Item Стандартная позиция M79 Milling
