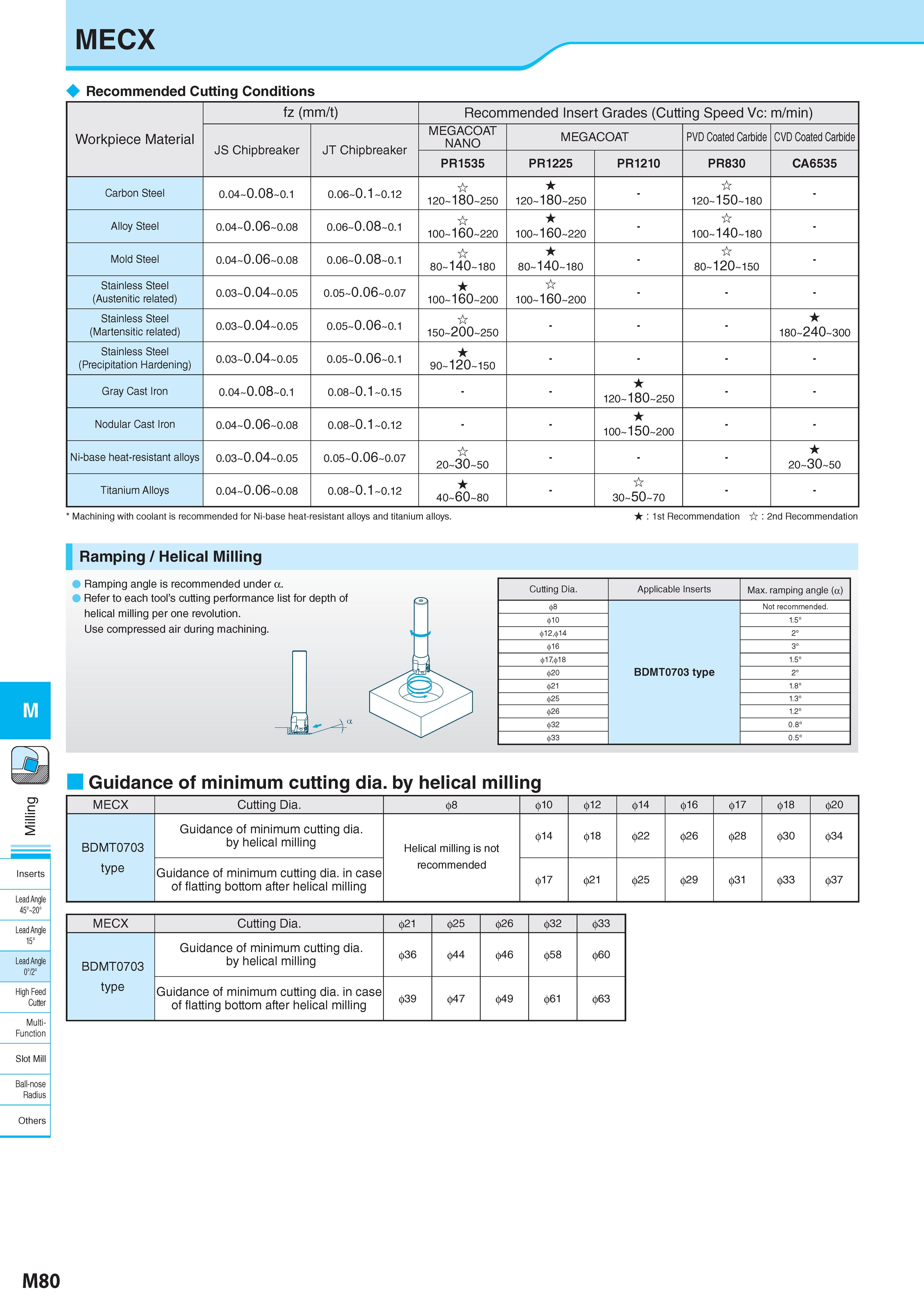

M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MECX Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) JS Chipbreaker Стружколом сменной пластины JT Chipbreaker Стружколом сменной пластины MEGACOAT NANO MEGACOAT PVD Coated Carbide CVD Coated Carbide PR1535 PR1225 PR1210 PR830 CA6535 Carbon Steel 0.04 0.08 0.1 0.06 0.1 0.12 120 180 250 120 180 250 - 120 150 180 - Alloy Steel 0.04 0.06 0.08 0.06 0.08 0.1 100 160 220 100 160 220 - 100 140 180 - Mold Steel 0.04 0.06 0.08 0.06 0.08 0.1 80 140 180 80 140 180 - 80 120 150 - Stainless Steel (Austenitic related) 0.03 0.04 0.05 0.05 0.06 0.07 100 160 200 100 160 200 - Stainless Steel (Martensitic related) 0.03 0.04 0.05 0.05 0.06 0.1 150 200 250 - 180 240 300 Stainless Steel (Precipitation Hardening) 0.03 0.04 0.05 0.05 0.06 0.1 90 120 150 Gray Cast Iron 0.04 0.08 0.1 0.08 0.1 0.15 120 180 250 Nodular Cast Iron 0.04 0.06 0.08 0.08 0.1 0.12 100 150 200 Ni-base heat-resistant alloys 0.03 0.04 0.05 0.05 0.06 0.07 20 30 50 - 20 30 50 Titanium Alloys 0.04 0.06 0.08 0.08 0.1 0.12 40 60 80 - 30 50 70 Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. : 1st Recommendation : 2nd Recommendation Ramping / Helical Milling Ramping angle is recommended under a. Refer to each tool’s cutting performance list for depth of helical milling per one revolution. Use compressed air during machining. Cutting Dia. Applicable Inserts Max. ramping angle (a) 8 Not recommended. 10 1.5° 12, 14 2° 16 3° 17, 18 1.5° 20 BDMT0703 type 2° 21 1.8° 25 1.3° 26 1.2° 32 0.8° 33 0.5° Guidance of minimum cutting dia. by helical milling MECX Cutting Dia. 8 10 12 14 16 17 18 20 BDMT0703 Guidance of minimum cutting dia. by helical milling Helical milling is not 14 18 22 26 28 30 34 type Guidance of minimum cutting dia. in case of flatting bottom after helical milling recommended 17 21 25 29 31 33 37 MECX Cutting Dia. 21 25 26 32 33 BDMT0703 type Guidance of minimum cutting dia. by helical milling 36 44 46 58 60 Guidance of minimum cutting dia. in case of flatting bottom after helical milling 39 47 49 61 63 a M80
