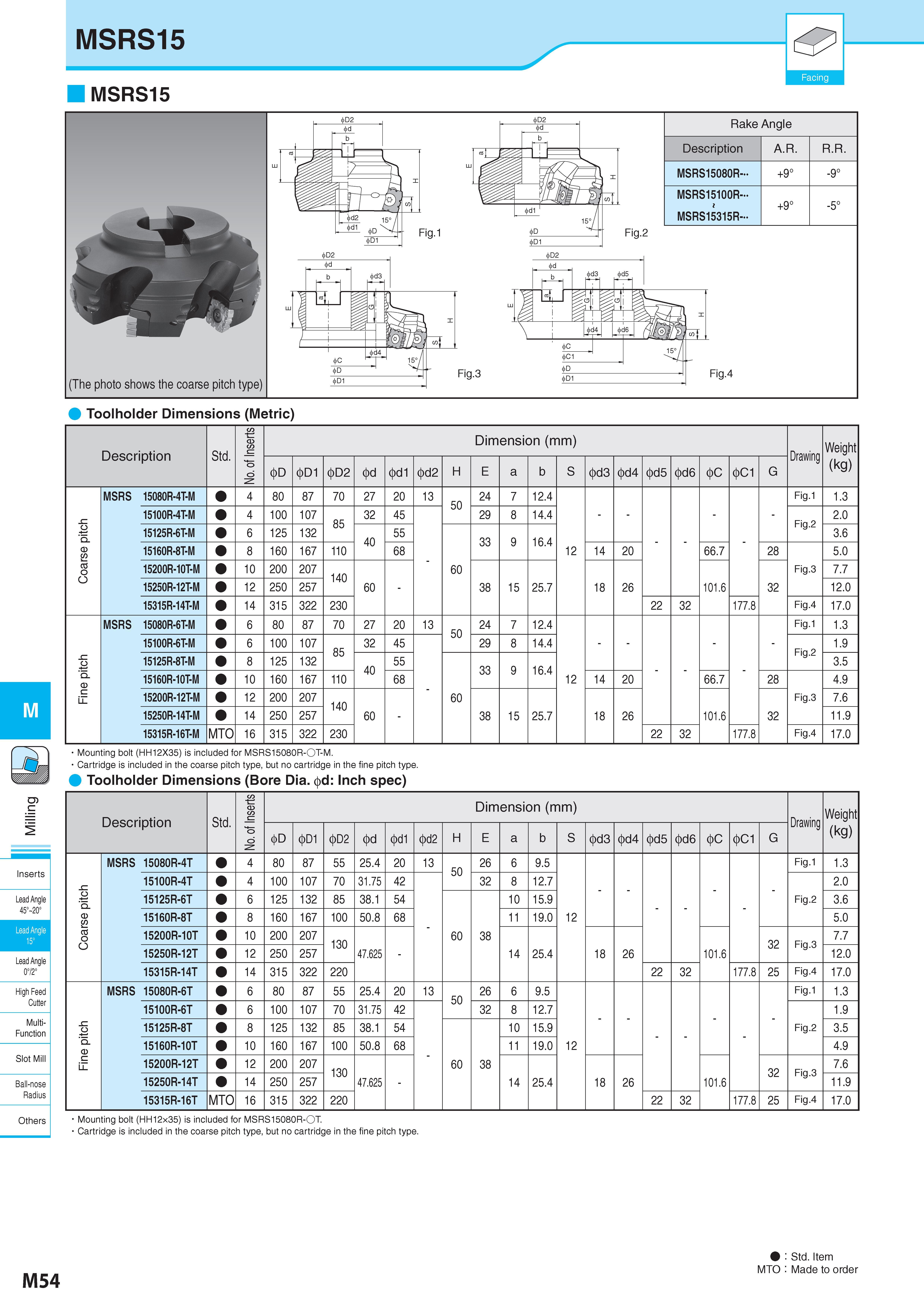

M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others M54 MSRS15 Toolholder Dimensions (Metric) Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Drawing Weight (kg) Вес инструмента в кг 4>D 4>D1 4>D2 4>d 4>d1 4>d2 H E a b S d3 d4 4>d5 d6 4>C 4>C1 G (kg) MSRS 15080R-4T-M N 4 80 87 70 27 20 13 50 24 7 12.4 Fig.1 1.3 Coarse pitch 15100R-4T-M N 4 100 107 85 32 45 29 8 14.4 Fig.2 2.0 15125R-6T-M N 6 125 132 40 55 33 9 16.4 3.6 15160R-8T-M N 8 160 167 110 68 12 14 20 66.7 28 5.0 15200R-10T-M N 10 200 207 140 60 Fig.3 7.7 15250R-12T-M N 12 250 257 60 - 38 15 25.7 18 26 101.6 32 12.0 15315R-14T-M N 14 315 322 230 22 32 177.8 Fig.4 17.0 MSRS 15080R-6T-M N 6 80 87 70 27 20 13 50 24 7 12.4 Fig.1 1.3 15100R-6T-M N 6 100 107 85 32 45 29 8 14.4 Fig.2 1.9 Fine pitch 15125R-8T-M N 8 125 132 40 55 33 9 16.4 3.5 15160R-10T-M N 10 160 167 110 68 12 14 20 66.7 28 4.9 15200R-12T-M N 12 200 207 140 60 Fig.3 7.6 15250R-14T-M N 14 250 257 60 - 38 15 25.7 18 26 101.6 32 11.9 15315R-16T-M MTO 16 315 322 230 22 32 177.8 Fig.4 17.0 Mounting bolt (HH12X35) is included for MSRS15080R-OT-M. Cartridge is included in the coarse pitch type, but no cartridge in the fine pitch type. Toolholder Dimensions (Bore Dia. d: Inch spec) Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Drawing Weight (kg) Вес инструмента в кг D 4>D1 4>D2 d 4>d1 4>d2 H E a b S 4>d3 4>d4 4>d5 4>d6 4>C 4>C1 G (kg) MSRS 15080R-4T N 4 80 87 55 25.4 20 13 50 26 6 9.5 Fig.1 1.3 Coarse pitch 15100R-4T N 4 100 107 70 31.75 42 32 8 12.7 2.0 15125R-6T N 6 125 132 85 38.1 54 10 15.9 Fig.2 3.6 15160R-8T N 8 160 167 100 50.8 68 11 19.0 12 5.0 15200R-10T N 10 200 207 130 60 38 32 Fig.3 7.7 15250R-12T N 12 250 257 47.625 - 14 25.4 18 26 101.6 12.0 15315R-14T N 14 315 322 220 22 32 177.8 25 Fig.4 17.0 MSRS 15080R-6T N 6 80 87 55 25.4 20 13 50 26 6 9.5 Fig.1 1.3 15100R-6T N 6 100 107 70 31.75 42 32 8 12.7 1.9 Fine pitch 15125R-8T N 8 125 132 85 38.1 54 10 15.9 Fig.2 3.5 15160R-10T N 10 160 167 100 50.8 68 11 19.0 12 4.9 15200R-12T N 12 200 207 130 60 38 32 Fig.3 7.6 15250R-14T N 14 250 257 47.625 - 14 25.4 18 26 101.6 11.9 15315R-16T MTO 16 315 322 220 22 32 177.8 25 Fig.4 17.0 Mounting bolt (HH12x35) is included for MSRS15080R-OT. Cartridge is included in the coarse pitch type, but no cartridge in the fine pitch type. : Std. Item Стандартная позиция MTO : Made to order
