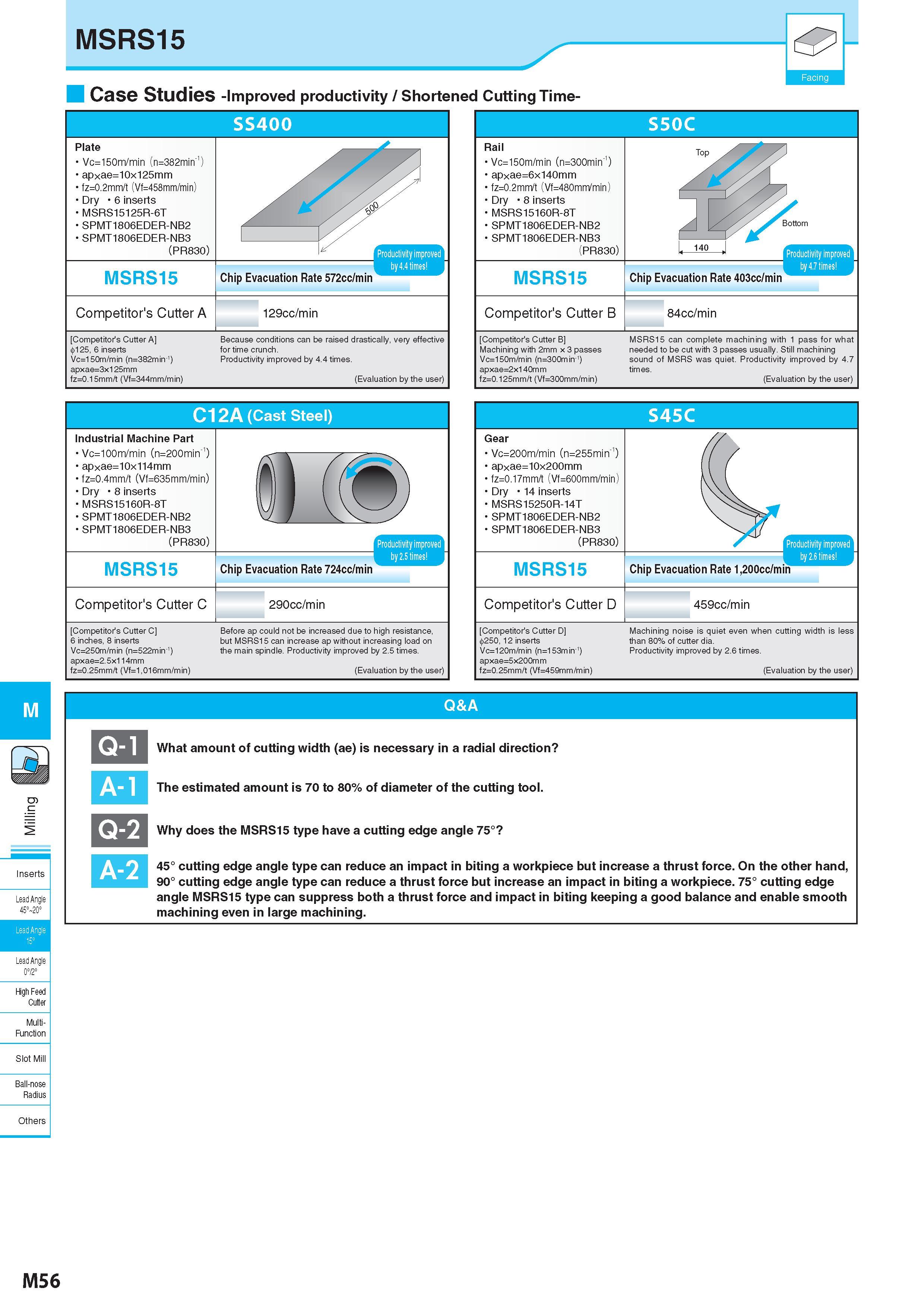

M Inserts Lead Angle 45°'20c Lead Angle 15° Lead Angle 0°/2°V High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Case Studies -Improved productivity / Shortened Cutting Time- SS400 Plate Vc=150m/min (n=382min-1) apxae=10x125mm fz=0.2mm/t (Vf=458mm/min) Dry 6 inserts MSRS15125R-6T SPMT1806EDER-NB2 SPMT1806EDER-NB3 (PR830) S VProducMyimpS MSRS15 Chip Evacuation Rate 572cc/min Competitor's Cutter A 129cc/min Competitor's Cutter A Because conditions can be raised drastically, very effective 125, 6 inserts for time crunch. Vc=150m/min (n=382min-1) Productivity improved by 4.4 times. apxae=3x125mm fz=0.15mm/t (Vf=344mm/min) (Evaluation by the user) S50C Rail Vc=150m/min (n=300min-1) apxae=6x140mm fz=0.2mm/( (Vf=480mm/min) Dry 8 inserts MSRS15160R-8T SPMT1806EDER-NB2 SPMT1806EDER-NB3 ( PR830) /''I y// Bottom / MSRS15 Chip Evacuation Rate 403cc/min d tll73SSil " Competitor's Cutter B 84cc/min Competitor's Cutter B MSRS15 can complete machining with 1 pass for what Machining with 2mm x 3 passes needed to be cut with 3 passes usually. Still machining Vc=150m/min (n=300min-1) sound of MSRS was quiet. Productivity improved by 4.7 apxae=2x140mm times. fz=0.125mm/t (Vf=300mm/min) (Evaluation by the user) C12A (Cast Steel) Industrial Machine Part Vc=100m/min (n=200min-1) apxae=10x114mm fz=0.4mm/t (Vf=635mm/min) Dry 8 inserts MSRS15160R-8T SPMT1806EDER-NB2 SPMT1806EDER-NB3 (PR830) tUD MSRS15 Chip Evacuation Rate 724cc/min Competitor's Cutter C 290cc/min Competitor's Cutter C Before ap could not be increased due to high resistance, 6 inches, 8 inserts but MSRS15 can increase ap without increasing load on Vc=250m/min (n=522min-1) the main spindle. Productivity improved by 2.5 times. apxae=2.5x114mm fz=0.25mm/t (Vf=1,016mm/min) (Evaluation by the user) S45C Gear Vc=200m/min (n=255min-1) apxae=10x200mm fz=0.17mm/t (Vf=600mm/min) Dry 14 inserts MSRS15250R-14T SPMT1806EDER-NB2 SPMT1806EDER-NB3 (PR830) L MSRS15 Chip Evacuation Rate 1,200cc/min Competitor's Cutter D 459cc/min Competitor's Cutter D Machining noise is quiet even when cutting width is less 250, 12 inserts than 80% of cutter dia. Vc=120m/min (n=153min-1) Productivity improved by 2.6 times. apxae=5x200mm fz=0.25mm/t (Vf=459mm/min) (Evaluation by the user) Q&A Q-1 Q-2 A-2 What amount of cutting width (ae) is necessary in a radial direction The estimated amount is 70 to 80% of diameter of the cutting tool. Why does the MSRS15 type have a cutting edge angle 75° 45° cutting edge angle type can reduce an impact in biting a workpiece but increase a thrust force. On the other hand, 90° cutting edge angle type can reduce a thrust force but increase an impact in biting a workpiece. 75° cutting edge angle MSRS15 type can suppress both a thrust force and impact in biting keeping a good balance and enable smooth machining even in large machining. M56
