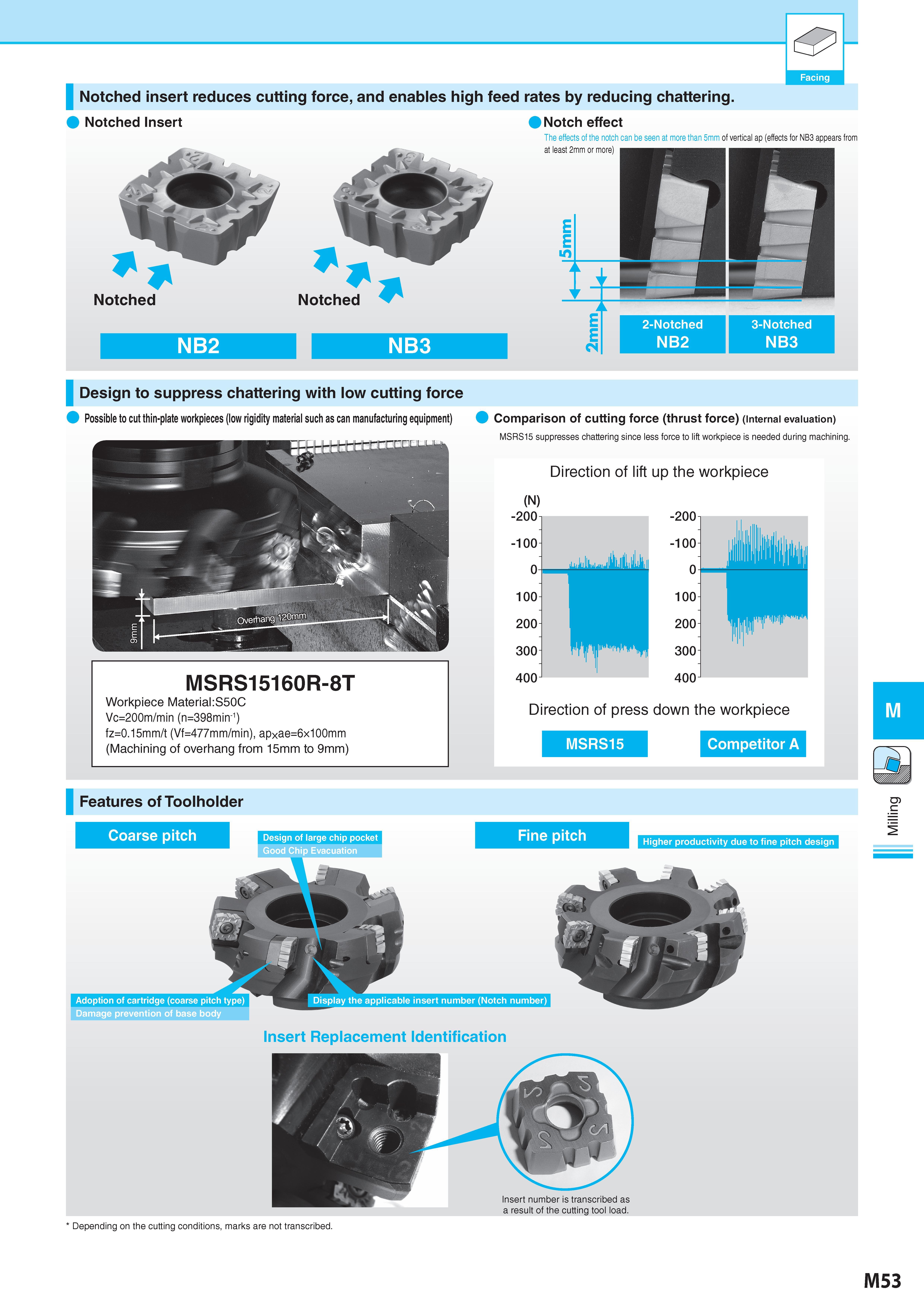

Notched insert reduces cutting force, and enables high feed rates by reducing chattering Notched Insert Notch effect The effects of the notch can be seen at more than 5mm of vertical ap (effects for NB3 appears from at least 2mm or more) Notched Notched NB2 NB3 Design to suppress chattering with low cutting force Possible to cut thin-plate workpieces (low rigidity material such as can manufacturing equipment) Comparison of cutting force (thrust force) (Internal evaluation) MSRS15 suppresses chattering since less force to lift workpiece is needed during machining. MSRS15160R-8T Workpiece Material:S50C Vc=200m/min (n=398min-1) fz=0.15mm/t (Vf=477mm/min), apxae=6x100mm (Machining of overhang from 15mm to 9mm) Features of Toolholder Coarse pitch Design of large chip pocket Good Chip Evacuation Fine pitch Higher productivity due to fine pitch design Adoption of cartridge (coarse pitch type) Display the applicable insert number (Notch number) Damage prevention of base body Insert Replacement Identification Insert number is transcribed as a result of the cutting tool load. Depending on the cutting conditions, marks are not transcribed. M53 Milling
