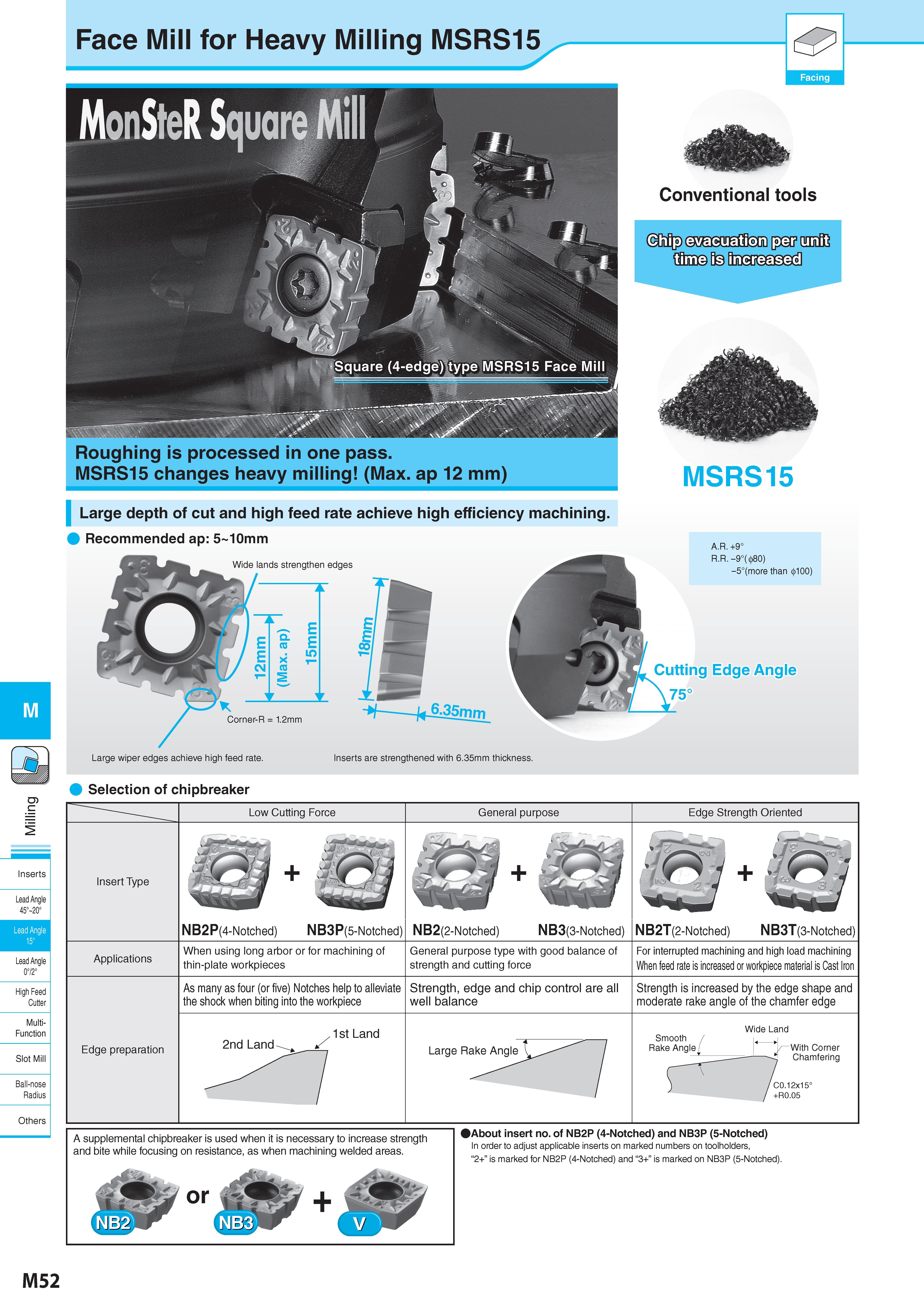

M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Face Mill for Heavy Milling MSRS15 Roughing is processed in one pass. MSRS15 changes heavy milling (Max. ap 12 mm) Conventional tools MSRS15 Large wiper edges achieve high feed rate. Selection of chipbreaker Inserts are strengthened with 6.35mm thickness. Low Cutting Force General purpose Edge Strength Oriented Insert Type + NB2P(4 -Notched) NB3P(5 -Notched) + NB2(2 -Notched) NB3(3 -Notched) Applications When using long arbor or for machining of thin-plate workpieces General purpose type with good balance of strength and cutting force For interrupted machining and high load machining When feed rate is increased or workpiece material is Cast Iron As many as four (or five) Notches help to alleviate the shock when biting into the workpiece Strength, edge and chip control are all well balance Strength is increased by the edge shape and moderate rake angle of the chamfer edge Edge preparation 2nd Land 1st Land Large Rake Angle Smooth / Rake Angle / With Corner Chamfering Wide Land A supplemental chipbreaker is used when it is necessary to increase strength and bite while focusing on resistance, as when machining welded areas. About insert no. of NB2P (4-Notched) and NB3P (5-Notched) In order to adjust applicable inserts on marked numbers on toolholders, “2+” is marked for NB2P (4-Notched) and “3+” is marked on NB3P (5-Notched). A.R. +9° R.R. -9°( 80) -5°(more than 100) Large depth of cut and high feed rate achieve high efficiency machining. Recommended ap: 5 10mm Wide lands strengthen edges Corner-R = 1.2mm Cutting Edge Angle NB2T(2 -Notched) NB3T(3 -Notched) M52
