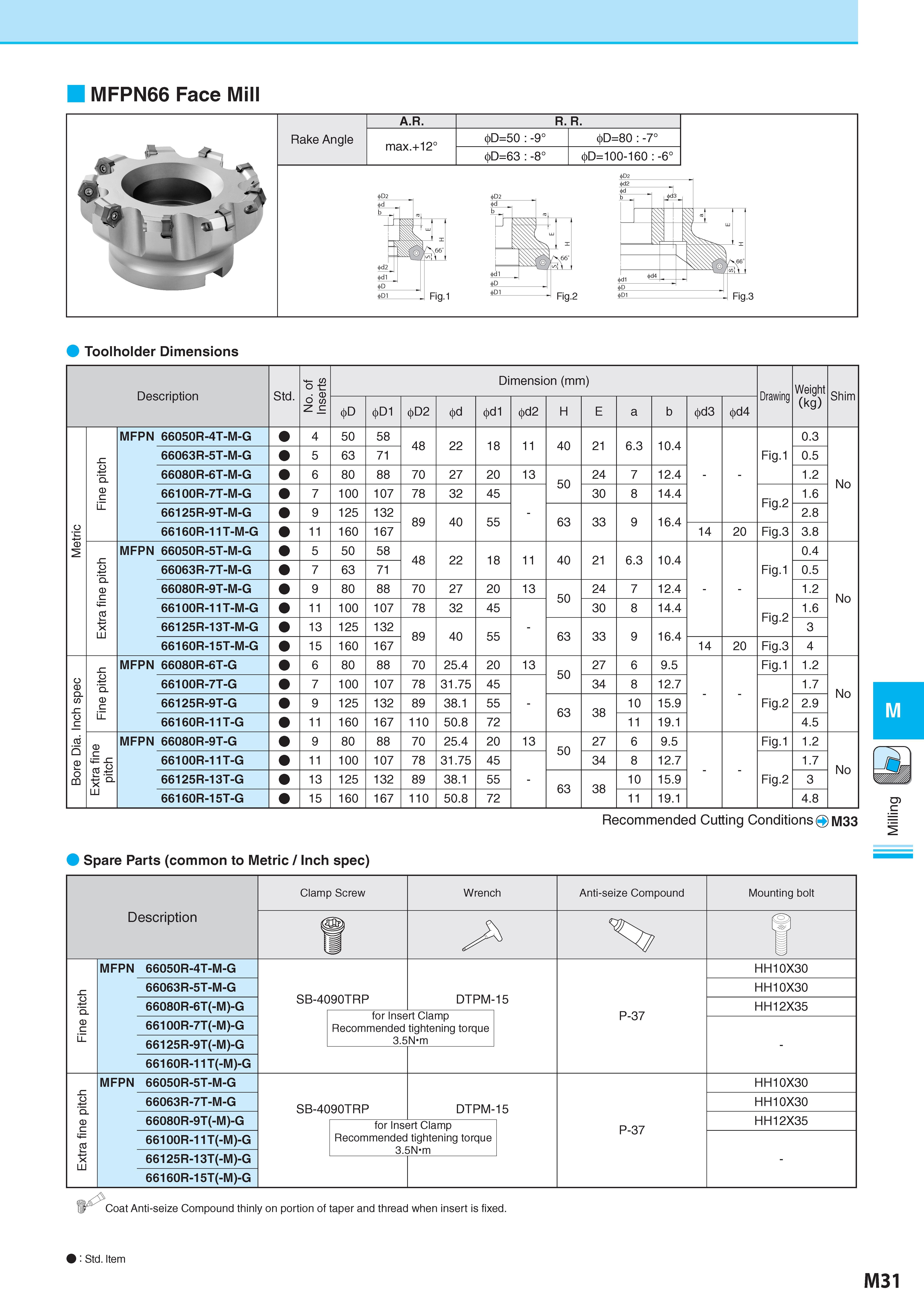

MFPN66 Face Mill Rake Angle A.R. R. R. max.+12° 4>D=50 : -9° 4>D=80 : -7° 4>D=63 : -8° 4>D=100-160 : -6° frd2- frdl Fig.1 frD2 d1 D Fig.2 Fig.3 Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Drawing Weight (kg) Вес инструмента в кг (kg) Shim D D1 D2 d d1 d2 H E a b d3 d4 Metric -C tc CD C Ll MFPN 66050R-4T-M-G 4 50 58 48 22 18 11 40 21 6.3 10.4 Fig.1 0.3 No 66063R-5T-M-G 5 63 71 0.5 66080R-6T-M-G 6 80 88 70 27 20 13 50 24 7 12.4 1.2 66100R-7T-M-G 7 100 107 78 32 45 - 30 8 14.4 Fig.2 1.6 66125R-9T-M-G 9 125 132 89 40 55 63 33 9 16.4 2.8 66160R-11T-M-G 11 160 167 14 20 Fig.3 3.8 h pi CD in £ X LU MFPN 66050R-5T-M-G 5 50 58 48 22 18 11 40 21 6.3 10.4 Fig.1 0.4 No 66063R-7T-M-G 7 63 71 0.5 66080R-9T-M-G 9 80 88 70 27 20 13 50 24 7 12.4 1.2 66100R-11T-M-G 11 100 107 78 32 45 - 30 8 14.4 Fig.2 1.6 66125R-13T-M-G 13 125 132 89 40 55 63 33 9 16.4 3 66160R-15T-M-G 15 160 167 14 20 Fig.3 4 Bore Dia. Inch spec .C tc CD C Ll MFPN 66080R-6T-G 6 80 88 70 25.4 20 13 50 27 6 9.5 Fig.1 1.2 No 66100R-7T-G 7 100 107 78 31.75 45 - 34 8 12.7 Fig.2 1.7 66125R-9T-G 9 125 132 89 38.1 55 63 38 10 15.9 2.9 66160R-11T-G 11 160 167 110 50.8 72 11 19.1 4.5 CD n U= -C cc £ LU MFPN 66080R-9T-G 9 80 88 70 25.4 20 13 50 27 6 9.5 Fig.1 1.2 No 66100R-11T-G 11 100 107 78 31.75 45 - 34 8 12.7 Fig.2 1.7 66125R-13T-G 13 125 132 89 38.1 55 63 38 10 15.9 3 66160R-15T-G 15 160 167 110 50.8 72 11 19.1 4.8 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO M33 Spare Parts (common to Metric / Inch spec) Description Обозначение Clamp Screw Wrench Anti-seize Compound Mounting bolt tc 0 MFPN 66050R-4T-M-G 66063R-5T-M-G 66080R-6T(-M)-G SB-4090TRP DTPM-15 66100R-7T(-M)-G 66125R-9T(-M)-G for Insert Clamp Recommended tightening torque 3.5N m 66160R-11T(-M)-G P-37 HH10X30 HH10X30 HH12X35 MFPN 66050R-5T-M-G e 66063R-7T-M-G 66080R-9T(-M)-G SB-4090TRP DTPM-15 66100R-11T(-M)-G 66125R-13T(-M)-G for Insert Clamp Recommended tightening torque 3.5N m 66160R-15T(-M)-G P-37 HH10X30 HH10X30 HH12X35 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. : Std. Item Стандартная позиция M31 Milling
