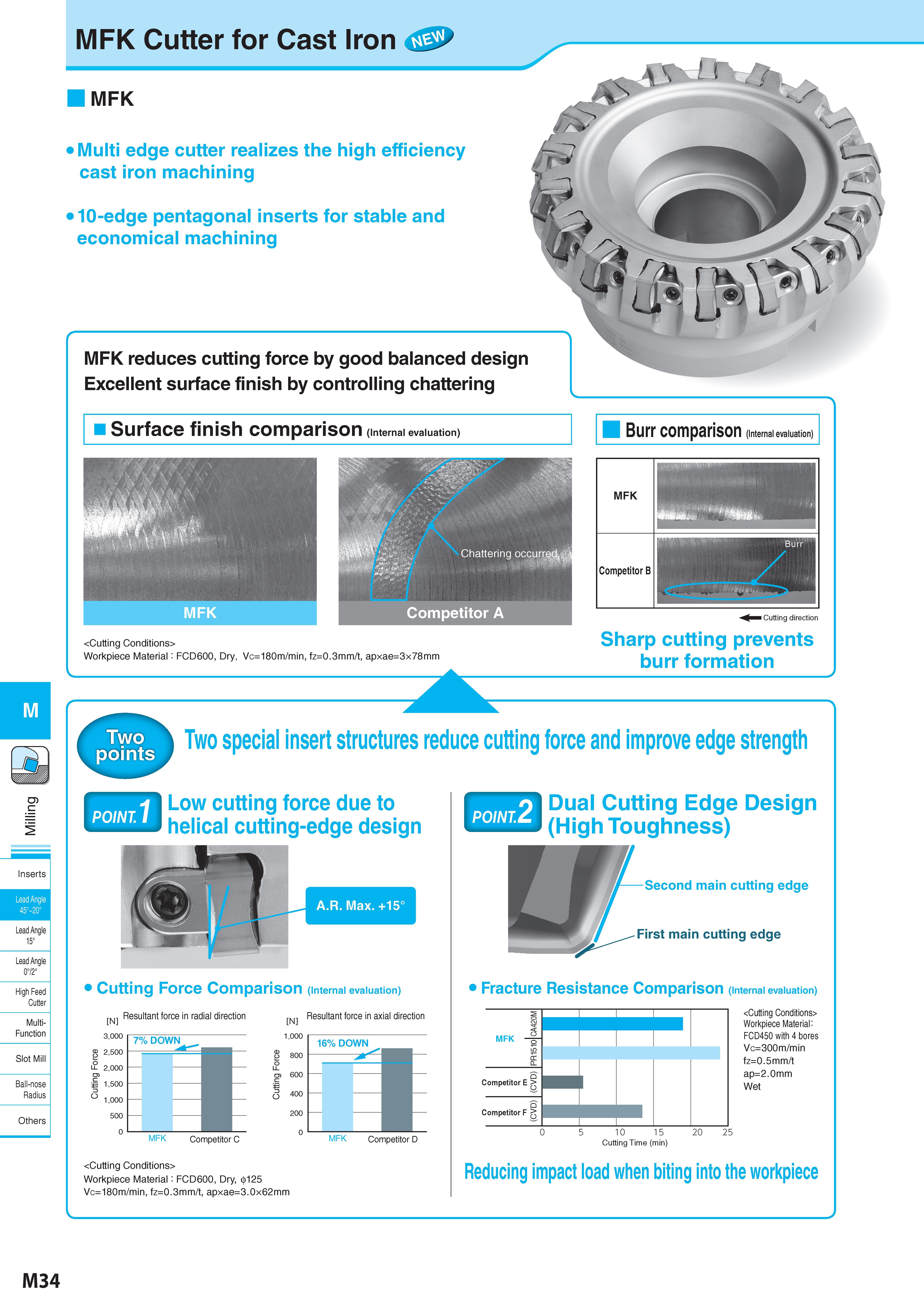

c Inserts Lead Angle 15° 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MFK Cutter for Cast Iron MFK Multi edge cutter realizes the high efficiency cast iron machining 10-edge pentagonal inserts for stable and economical machining MFK reduces cutting force by good balanced design Excellent surface finish by controlling chattering Surface finish comparison (Internal evaluation) Burr comparison (Internal evaluation) MFK Competitor B Cutting direction Workpiece Material: FCD600, Dry, VC=180m/min, fz=0.3mm/t, apxae=3x78mm Sharp cutting prevents burr formation Two special insert structures reduce cutting force and improve edge strength Low cutting force due to helical cutting-edge design A.R. Max. +15° Cutting Force Comparison (Internal evaluation) N Resultant force in radial direction N Resultant force in axial direction 7% down 1,000 16% down I H I 1 800 ra 600 - 3 400 - 200 MFK Competitor C Workpiece Material: FCD600, Dry, 125 VC=180m/min, fz=0.3mm/t, apxae=3.0x62mm MFK Competitor D Dual Cutting Edge Design (High Toughness) Second main cutting edge Fracture Resistance Comparison (Internal evaluation) Competitor E > Competitor F > Workpiece Material: FCD450 with 4 bores VC=300m/min fz=0.5mm/t ap=2.0mm Wet 5 10 15 Cutting Time (min) Reducing impact load when biting into the workpiece MFK 500 0 20 25 M34
