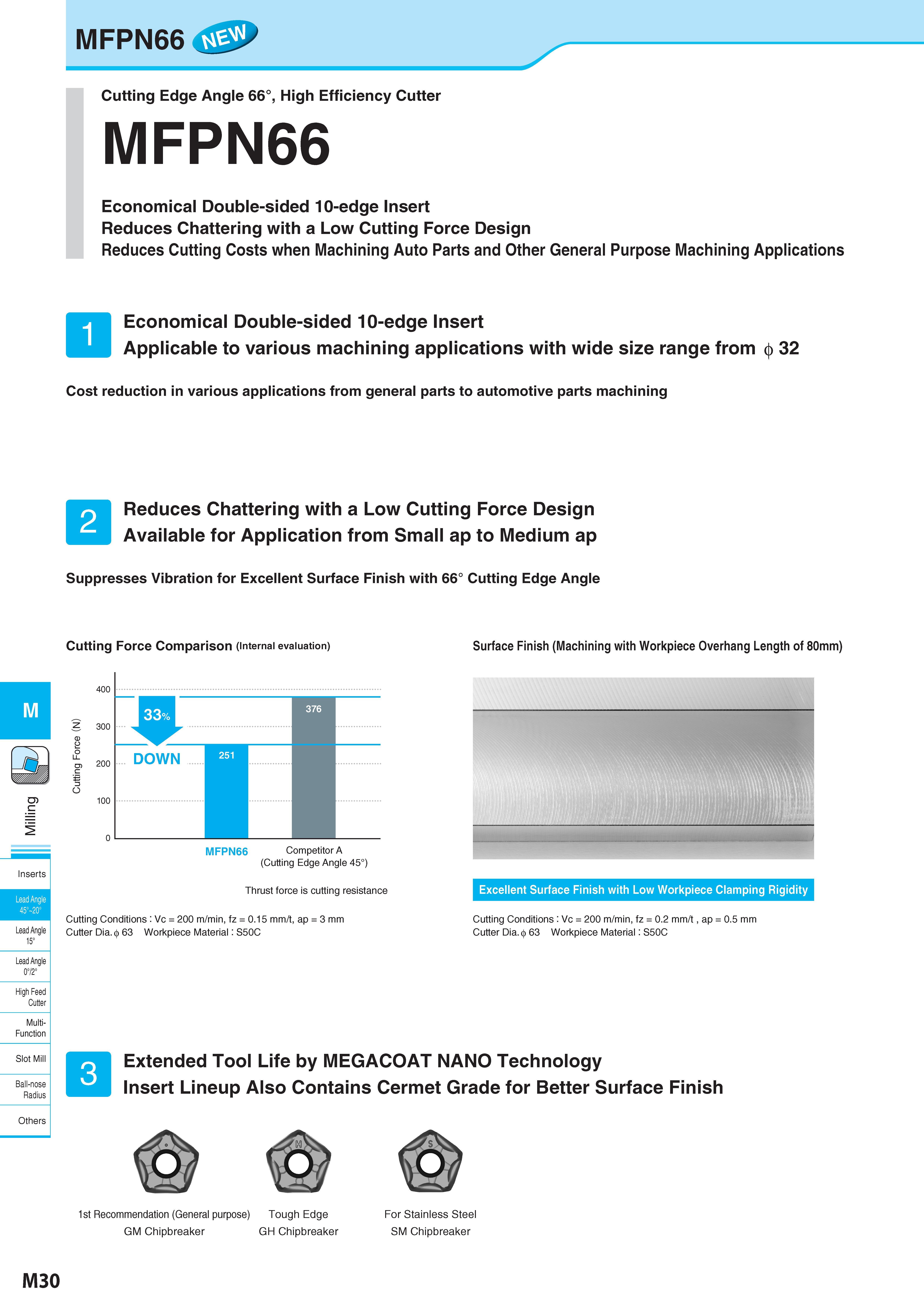

MFPN66 Cutting Edge Angle 66°, High Efficiency Cutter MFPN66 Economical Double-sided 10-edge Insert Reduces Chattering with a Low Cutting Force Design Reduces Cutting Costs when Machining Auto Parts and Other General Purpose Machining Applications Economical Double-sided 10-edge Insert Applicable to various machining applications with wide size range from 32 Cost reduction in various applications from general parts to automotive parts machining Reduces Chattering with a Low Cutting Force Design Available for Application from Small ap to Medium ap Suppresses Vibration for Excellent Surface Finish with 66° Cutting Edge Angle Cutting Force Comparison (Internal evaluation) Surface Finish (Machining with Workpiece Overhang Length of 80mm) Inserts Lead Angle 15° 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MFPN66 Competitor A (Cutting Edge Angle 45°) Thrust force is cutting resistance Cutting Conditions : Vc = 200 m/min, fz = 0.15 mm/t, ap = 3 mm Cutter Dia. 63 Workpiece Material: S50C Excellent Surface Finish with Low Workpiece Clamping Rigidity Cutting Conditions : Vc = 200 m/min, fz = 0.2 mm/t , ap = 0.5 mm Cutter Dia. 63 Workpiece Material: S50C Extended Tool Life by MEGACOAT NANO Technology Insert Lineup Also Contains Cermet Grade for Better Surface Finish 1st Recommendation (General purpose) Tough Edge GM Chipbreaker Стружколом сменной пластины GH Chipbreaker Стружколом сменной пластины For Stainless Steel SM Chipbreaker Стружколом сменной пластины M30
