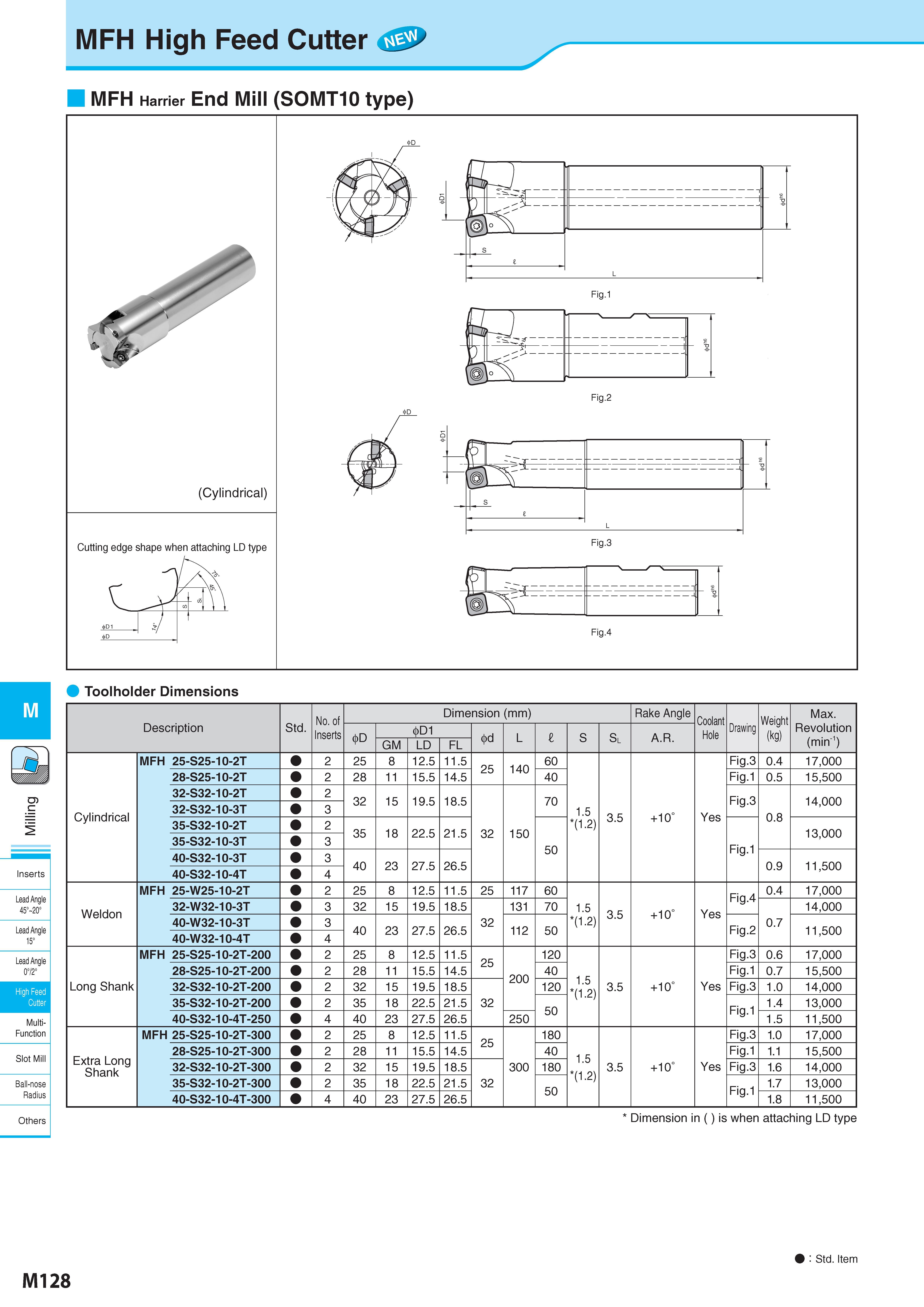

MFH High Feed Cutter M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MFH Harrier End Mill (SOMT10 type) Cutting edge shape when attaching LD type Toolholder Dimensions Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Weight (kg) Вес инструмента в кг (kg) Max. Description Обозначение 4>D 0D1 L I S Sl A.R. Drawing Revolution (min-1) GM LD FL d \,xy/ MFH 25-S25-10-2T 2 25 8 12.5 11.5 25 140 60 Fig.3 0.4 17,000 28-S25-10-2T 2 28 11 15.5 14.5 40 Fig.1 0.5 15,500 32-S32-10-2T 2 32 15 19.5 18.5 70 Fig.3 14,000 Cylindrical 32-S32-10-3T 3 1.5 3.5 +10° Yes 0.8 35-S32-10-2T 2 35 18 22.5 21.5 32 150 (1.2) 13,000 35-S32-10-3T 3 50 Fig.1 40-S32-10-3T 3 40 23 27.5 26.5 0.9 11,500 40-S32-10-4T 4 MFH 25-W25-10-2T 2 25 8 12.5 11.5 25 117 60 Fig.4 0.4 17,000 Weldon 32-W32-10-3T 3 32 15 19.5 18.5 131 70 1.5 3.5 +10° Yes 14,000 40-W32-10-3T 3 40 23 27.5 26.5 32 112 50 (1.2) Fig.2 0.7 11,500 40-W32-10-4T 4 MFH 25-S25-10-2T-200 2 25 8 12.5 11.5 25 120 Fig.3 0.6 17,000 28-S25-10-2T-200 2 28 11 15.5 14.5 200 40 1.5 (1.2) Fig.1 0.7 15,500 Long Shank 32-S32-10-2T-200 2 32 15 19.5 18.5 120 3.5 +10° Yes Fig.3 1.0 14,000 35-S32-10-2T-200 2 35 18 22.5 21.5 32 50 Fig.1 1.4 13,000 40-S32-10-4T-250 4 40 23 27.5 26.5 250 1.5 11,500 MFH 25-S25-10-2T-300 2 25 8 12.5 11.5 25 180 Fig.3 1.0 17,000 Extra Long Shank 28-S25-10-2T-300 2 28 11 15.5 14.5 40 1.5 (1.2) Fig.1 1.1 15,500 32-S32-10-2T-300 2 32 15 19.5 18.5 300 180 3.5 +10° Yes Fig.3 1.6 14,000 35-S32-10-2T-300 2 35 18 22.5 21.5 32 50 Fig.1 1.7 13,000 40-S32-10-4T-300 4 40 23 27.5 26.5 1.8 11,500 Dimension in is when attaching LD type M128 : Std. Item
