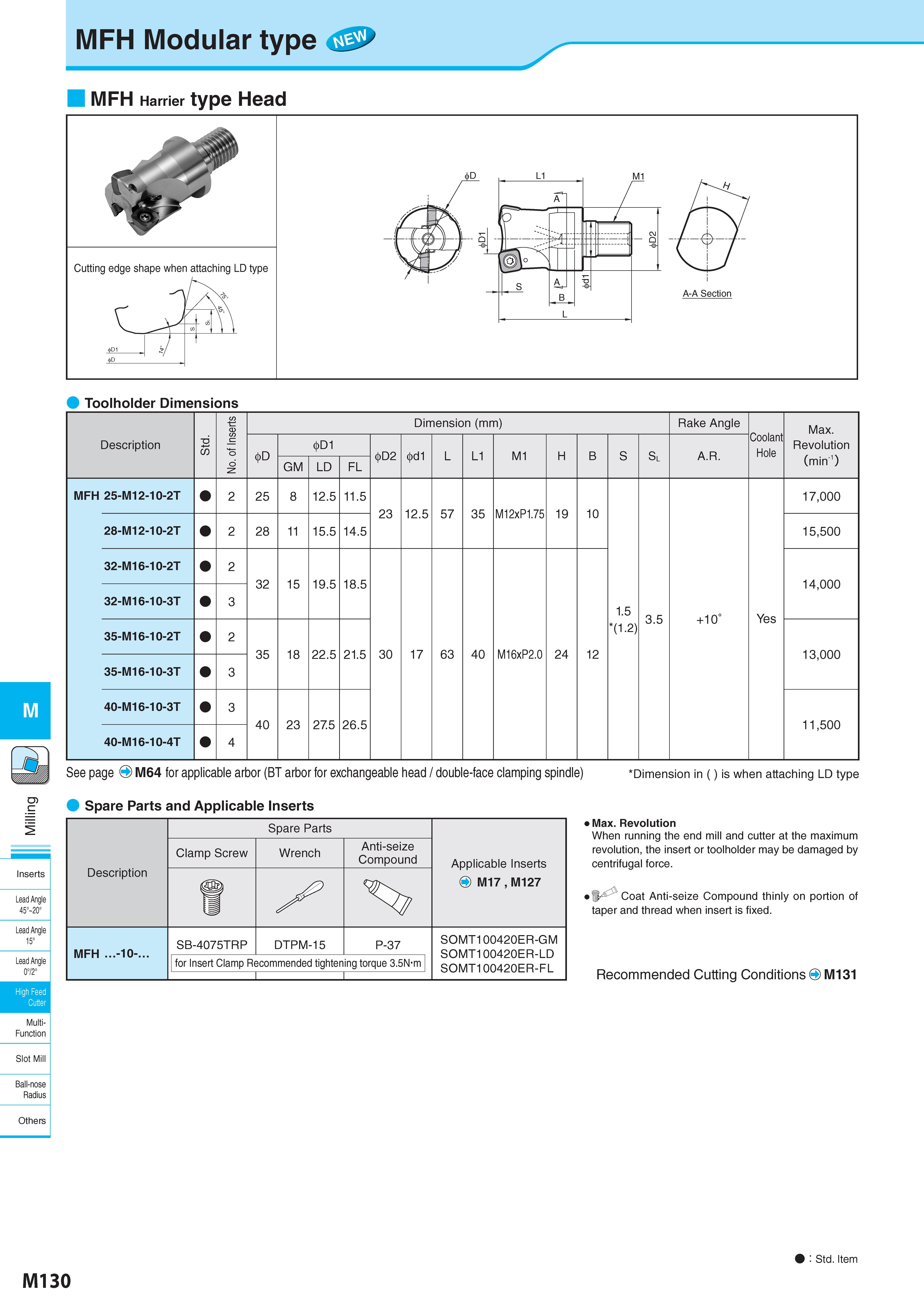

MFH Modular type M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius MFH Harrier type Head Toolholder Dimensions Description Обозначение TD No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) D D1 D2 d1 L L1 M1 H B S Sl A.R. GM LD FL MFH 25-M12-10-2T 2 25 8 12.5 11.5 23 12.5 57 35 M12xP1.75 19 10 1.5 (1.2) 3.5 +10° Yes 17,000 28-M12-10-2T 2 28 11 15.5 14.5 15,500 32-M16-10-2T 2 32 15 19.5 18.5 30 17 63 40 M16xP2.0 24 12 14,000 32-M16-10-3T 3 35-M16-10-2T 2 35 18 22.5 21.5 13,000 35-M16-10-3T 3 40-M16-10-3T 3 40 23 27.5 26.5 11,500 40-M16-10-4T 4 See page O M64 for applicable arbor (BT arbor for exchangeable head / double-face clamping spindle) Dimension in is when attaching ld type Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions Рекомендованные режимы резания на станках O M131 Spare Parts and Applicable Inserts Запасные части и применяемые сменные пластины Description Обозначение Spare Parts Applicable Inserts O M17 , M127 Clamp Screw Wrench Anti-seize Compound u X MFH ...-10-... SB-4075TRP DTPM-15 P-37 SOMT100420ER-GM SOMT100420ER-LD SOMT100420ER-FL for Insert Clamp Recommended tightening torque 3.5N-m 1 1 M130 : Std. Item
