875 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M125

Каталог KYOCERA 2017 Инструмент режущий Стр. M125 0875 Lab2u

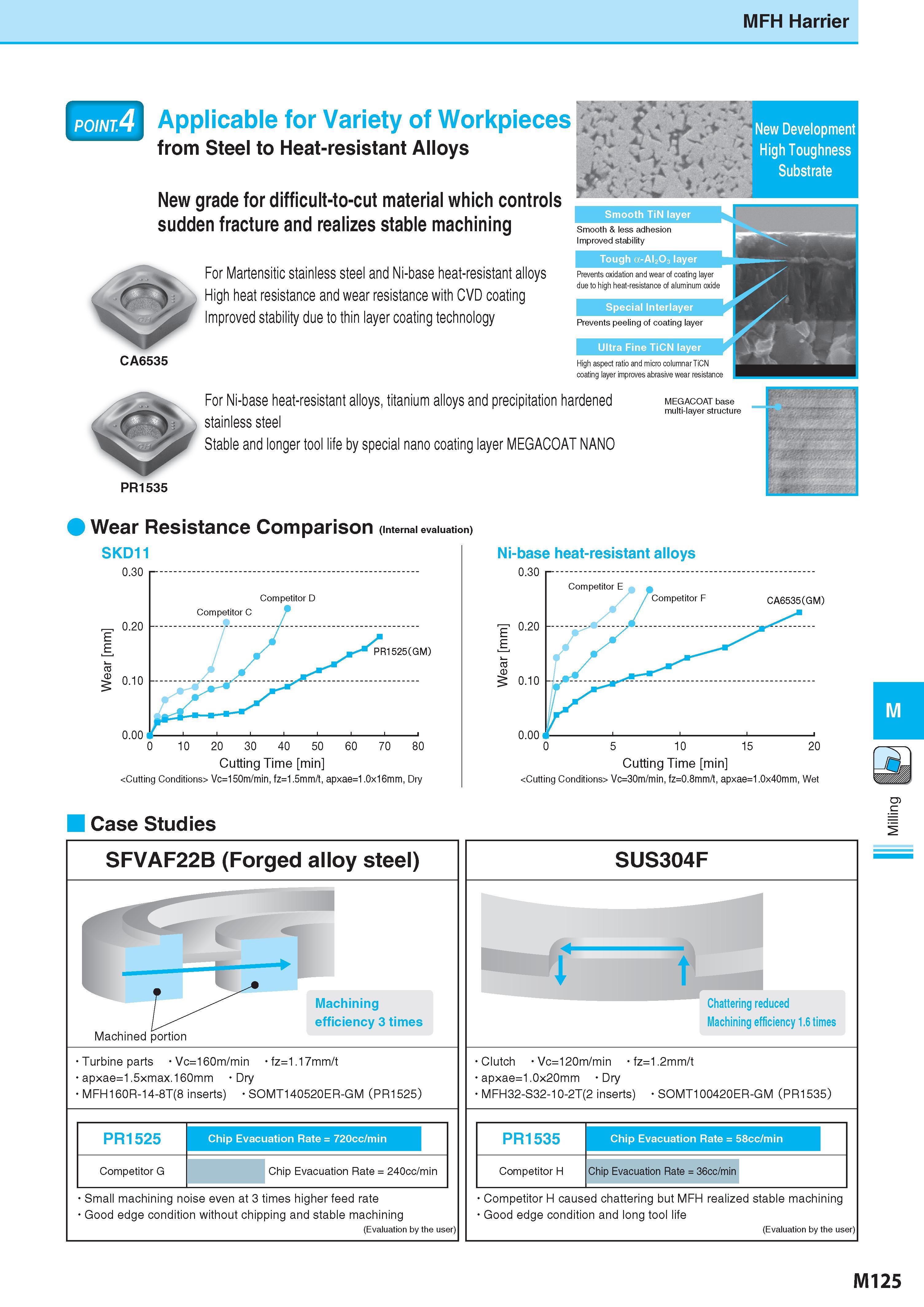

MFH Harrier Applicable for Variety of Workpieces from Steel to Heat-resistant Alloys New grade for difficult-to-cut material which controls sudden fracture and realizes stable machining is. < .fSa New Development High Toughness Substrate CA6535 For Martensitic stainless steel and Ni-base heat-resistant alloys High heat resistance and wear resistance with CVD coating Improved stability due to thin layer coating technology Smooth & less adhesion Improved stability Tough a-Al2O3 layer Prevents oxidation and wear of coating layer due to high heat-resistance of aluminum oxide Prevents peeling of coating layer High aspect ratio and micro columnar TiCN coating layer improves abrasive wear resistance For Ni-base heat-resistant alloys, titanium alloys and precipitation hardened stainless steel Stable and longer tool life by special nano coating layer MEGACOAT NANO MEGACOAT base multi-layer structure PR1535 Wear Resistance Comparison (Internal evaluation) SKD11 Cutting Time min Vc=150m/min, fz=1.5mm/t, apxae=1.0x16mm, Dry Ni-base heat-resistant alloys Cutting Time min Vc=30m/min, fz=0.8mm/t, apxae=1.0x40mm, Wet Case Studies SFVAF22B (Forged alloy steel) i Machining efficiency 3 times Machined portion Turbine parts Vc=160m/min fz=1.17mm/t apxae=1.5xmax.160mm Dry MFH160R-14-8T(8 inserts) SOMT140520ER-GM (PR1525) PR1525 Chip Evacuation Rate = 720cc/min Competitor G Chip Evacuation Rate = 240cc/min Small machining noise even at 3 times higher feed rate Good edge condition without chipping and stable machining (Evaluation by the user) SUS304F I t m Chattering reduced Machining efficiency 1.6 times Clutch Vc=120m/min fz=1.2mm/t apxae=1.0x20mm Dry MFH32-S32-10-2T(2 inserts) SOMT100420ER-GM (PR1535) PR1535 Chip Evacuation Rate = 58cc/min Competitor H Chip Evacuation Rate = 36cc/min Competitor H caused chattering but MFH realized stable machining Good edge condition and long tool life (Evaluation by the user) M125 Milling
