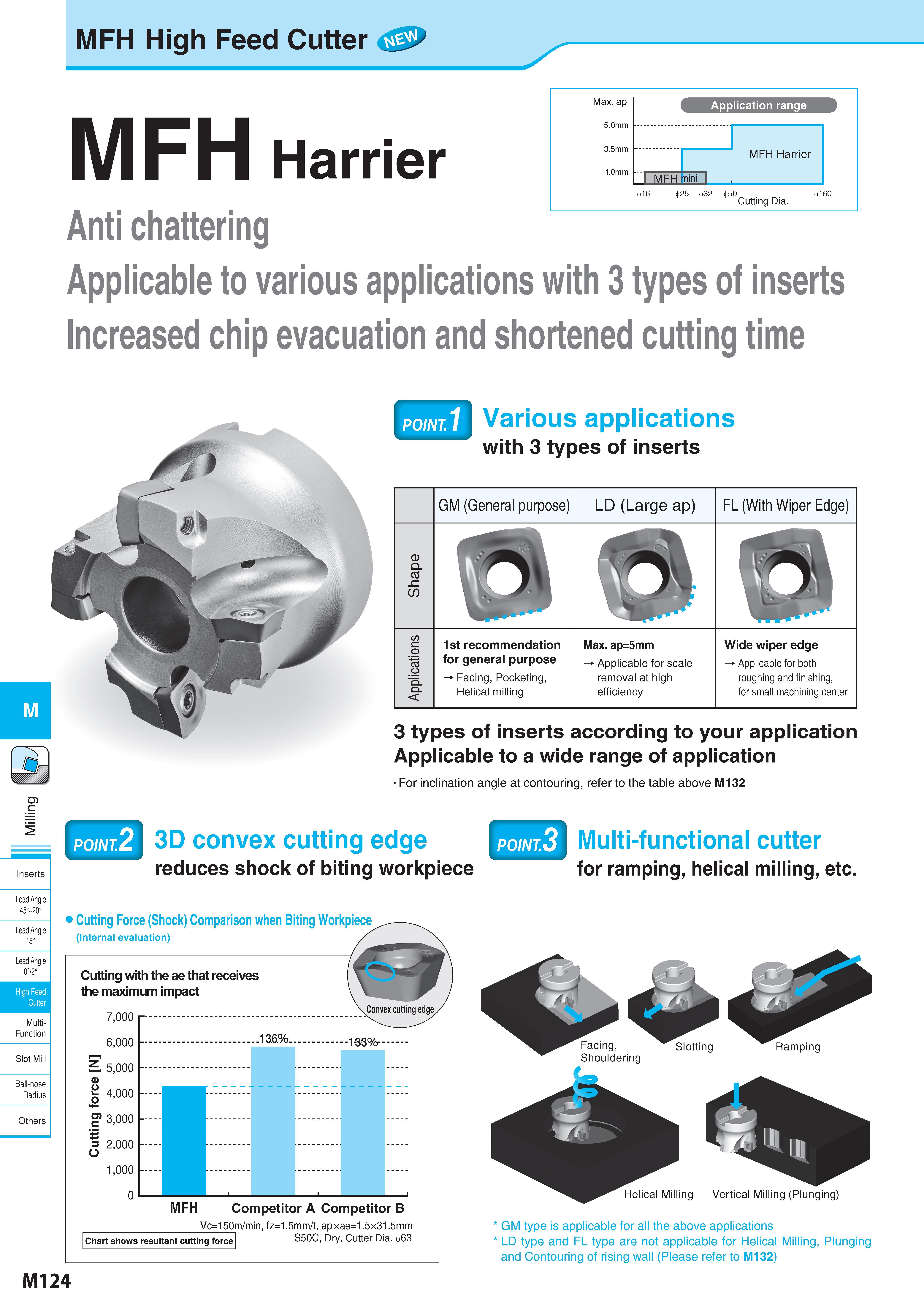

MFH High Feed Cutter MFH Harrier Max. ap 5.0mm 3.5mm 1.0mm 16 25 32 50 Cutting Dia. 160 Anti chattering Applicable to various applications with 3 types of inserts Increased chip evacuation and shortened cutting time c Inserts Lead Angle 45° 20° Lead Angle 15° 0°/2° Multi- Function Slot Mill Ball-nose Radius Others Various applications with 3 types of inserts GM (General purpose) LD (Large ap) FL (With Wiper Edge) Shape 0 Applications 1st recommendation for general purpose Facing, Pocketing, Helical milling Max. ap=5mm Applicable for scale removal at high efficiency Wide wiper edge Applicable for both roughing and finishing, for small machining center 3 types of inserts according to your application Applicable to a wide range of application For inclination angle at contouring, refer to the table above M132 3D convex cutting edge reduces shock of biting workpiece Multi-functional cutter for ramping, helical milling, etc. Cutting Force (Shock) Comparison when Biting Workpiece (Internal evaluation) Cutting with the ae that receives the maximum impact 7.000 6.000 EL 5,000 Chart shows resultant cutting force MFH Competitor A Competitor B Vc=150m/min, fz=1.5mm/t, apxae=1.5x31.5mm S50C, Dry, Cutter Dia. Helical Milling Vertical Milling (Plunging) GM type is applicable for all the above applications LD type and FL type are not applicable for Helical Milling, Plunging and Contouring of rising wall (Please refer to M132) M124 High Feed Cutter
