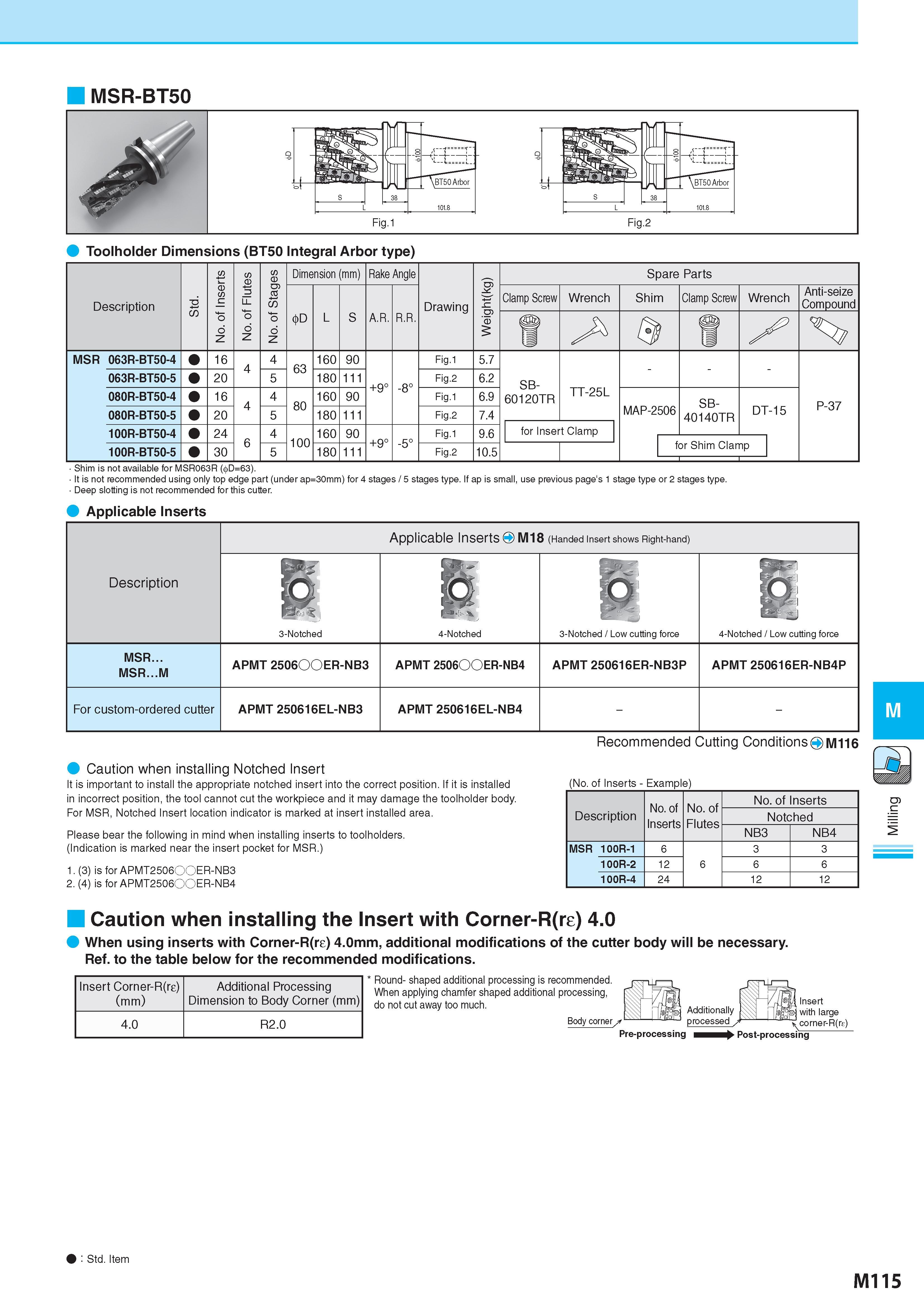

MSR-BT50 Tcnlholder Dimensions (BT50 Integral Arbor type) Description Обозначение T3 00 No. of Inserts No. of Flutes No. of Stages Dimension (mm) Размеры в мм Rake Angle Drawing Weight(kg) Spare Parts D L S A.R. R.R. Clamp Screw Wrench Shim Clamp Screw Wrench Anti-seize Compound u MSR 063R-BT50-4 16 4 4 63 160 90 +9° -8° Fig.1 5.7 SB- 60120TR TT-25L - P-37 063R-BT50-5 20 5 180 111 Fig.2 6.2 080R-BT50-4 16 4 4 80 160 90 Fig.1 6.9 MAP-2506 SB- 40140TR DT-15 080R-BT50-5 20 5 180 111 Fig.2 7.4 100R-BT50-4 24 6 4 100 160 90 +9° -5° Fig.1 9.6 for Insert Clamp for Shim Clamp 100R-BT50-5 30 5 180 111 Fig.2 10.5 Shim is not available for MSR063R ( D=63). It is not recommended using only top edge part (under ap=30mm) for 4 stages / 5 stages type. If ap is small, use previous page's 1 stage type or 2 stages type. Deep slotting is not recommended for this cutter. Applicable Inserts Description Обозначение Applicable Inserts O M18 (Handed Insert shows Right-hand) 3-Notched 4-Notched H 3-Notched / Low cutting force 4-Notched / Low cutting force MSR... MSR...M APMT 250600ER-NB3 APMT 250600ER-NB4 APMT 250616ER-NB3P APMT 250616ER-NB4P For custom-ordered cutter APMT 250616EL-NB3 APMT 250616EL-NB4 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO M116 Caution when installing Notched Insert It is important to install the appropriate notched insert into the correct position. If it is installed in incorrect position, the tool cannot cut the workpiece and it may damage the toolholder body. For MSR, Notched Insert location indicator is marked at insert installed area. Please bear the following in mind when installing inserts to toolholders. (Indication is marked near the insert pocket for MSR.) 1. (3) is for APMT2506OOER-NB3 2. (4) is for APMT2506OOER-NB4 (No. of Inserts - Example) Description Обозначение No. of Inserts No. of Flutes No. of Inserts Notched NB3 NB4 MSR 100R-1 6 6 3 3 100R-2 12 6 6 100R-4 24 12 12 Caution when installing the Insert with Corner-R(re) 4.0 When using inserts with Corner-R(re) 4.0mm, additional modifications of the cutter body will be necessary. Ref. to the table below for the recommended modifications. Insert Corner-R(re) (mm) Additional Processing Dimension to Body Corner (mm) 4.0 R2.0 Round- shaped additional processing is recommended. When applying chamfer shaped additional processing, do not cut away too much. Body corner / Additionally processed , i Insert with large Pre-processing corner-R(re) Post-processing M : Std. Item Стандартная позиция M115 Milling
