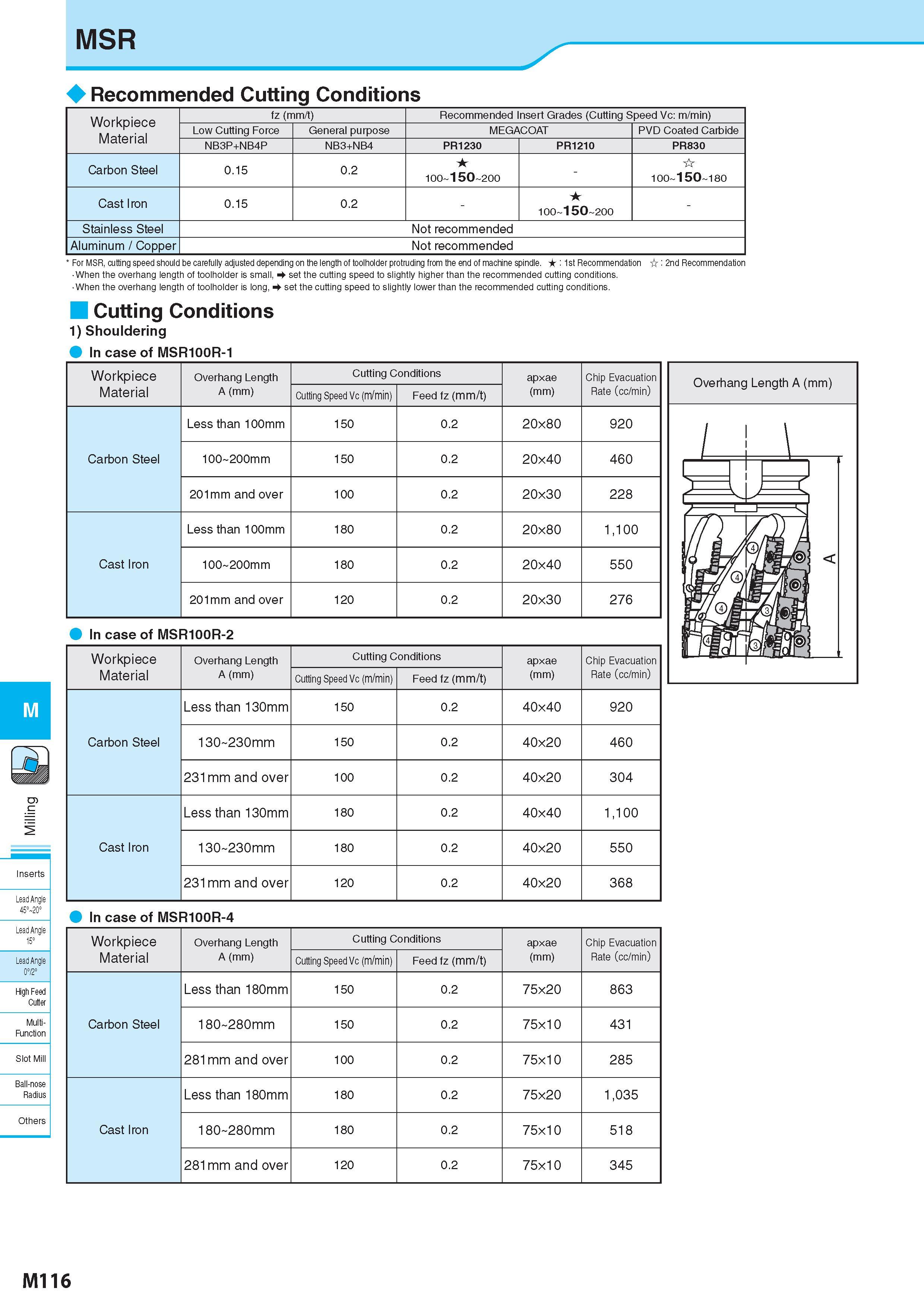

MSR M Inserts Lead Angle 45°'20c Lead Angle 15° ' Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Low Cutting Force General purpose MEGACOAT PVD Coated Carbide NB3P+NB4P NB3+NB4 PR1230 PR1210 PR830 Carbon Steel 0.15 0.2 100 150 200 - 100 150 180 Cast Iron 0.15 0.2 - 100 150 200 - Stainless Steel Not recommended Aluminum / Copper Not recommended For MSR, cutting speed should be carefully adjusted depending on the length of toolholder protruding from the end of machine spindle. : 1st Recommendation : 2nd Recommendation When the overhang length of toolholder is small, set the cutting speed to slightly higher than the recommended cutting conditions. When the overhang length of toolholder is long, set the cutting speed to slightly lower than the recommended cutting conditions. Cutting Conditions 1) Shouldering In case of MSR100R-1 Workpiece Overhang Length Cutting Conditions apxae Chip Evacuation Material A (mm) Cutting Speed Vc (m/min) Feed fz (mm/t) (mm) Rate (cc/min) Less than 100mm 150 0.2 20x80 920 Carbon Steel 100 200mm 150 0.2 20x40 460 201mm and over 100 0.2 20x30 228 Less than 100mm 180 0.2 20x80 1,100 Cast Iron 100 200mm 180 0.2 20x40 550 201mm and over 120 0.2 20x30 276 In case of MSR100R-2 Workpiece Overhang Length Cutting Conditions apxae Chip Evacuation Material A (mm) Cutting Speed Vc (m/min) Feed fz (mm/t) (mm) Rate (cc/min) Less than 130mm 150 0.2 40x40 920 Carbon Steel 130 230mm 150 0.2 40x20 460 231mm and over 100 0.2 40x20 304 Less than 130mm 180 0.2 40x40 1,100 Cast Iron 130 230mm 180 0.2 40x20 550 231mm and over 120 0.2 40x20 368 Overhang Length A (mm) In case of MSR100R-4 Workpiece Overhang Length Cutting Conditions apxae Chip Evacuation Material A (mm) Cutting Speed Vc (m/min) Feed fz (mm/t) (mm) Rate (cc/min) Less than 180mm 150 0.2 75x20 863 Carbon Steel 180 280mm 150 0.2 75x10 431 281mm and over 100 0.2 75x10 285 Less than 180mm 180 0.2 75x20 1,035 Cast Iron 180 280mm 180 0.2 75x10 518 281mm and over 120 0.2 75x10 345 M116
