864 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M114

Каталог KYOCERA 2017 Инструмент режущий Стр. M114 0864 Lab2u

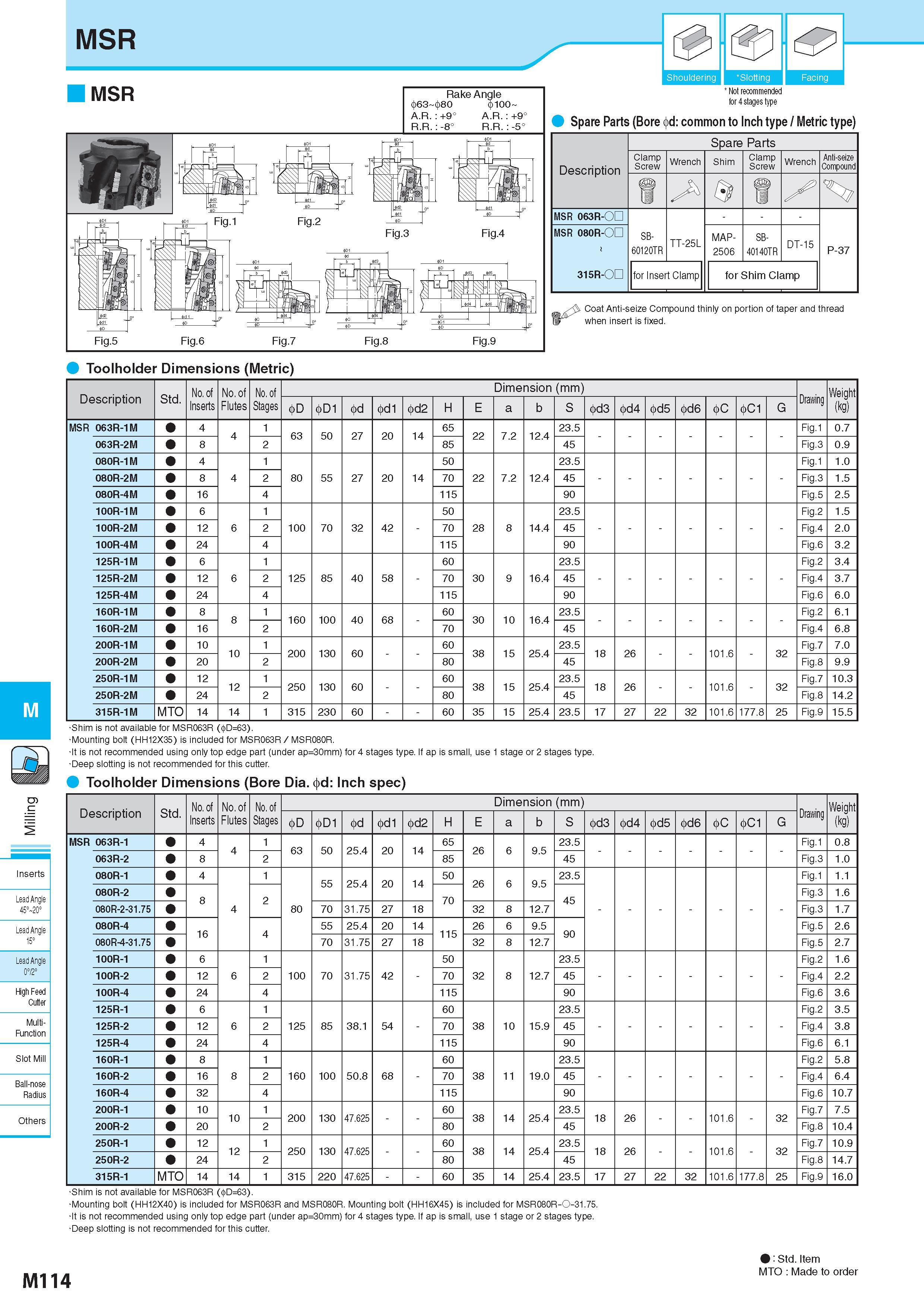

M Inserts Lead Angle 45°'20c Lead Angle 15° ' Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Shouldering Facing Spare Parts Description Обозначение Clamp Screw Wrench Shim Clamp Screw Wrench Anti-seize Compound u J X MSR 063R-CO MSR 080R-OT I SB- 60120TR TT-25L MAP- 2506 SB- 40140TR DT-15 P-37 315R-OT for Insert Clamp for Shim Clamp Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. MSR MSR Rake Angle 063-080 0100- A.R. : +9° A.R. : +9° R.R. : -8° R.R. : -5° Spare Parts (Bore 0d: common to Inch type / Metric type) Toolholder Dimensions (Metric) Description Обозначение Std. No. of Inserts No. of Flutes No. of Stages Dimension (mm) Размеры в мм Drawing Weight (kg) Вес инструмента в кг (kg) D 0D1 0d 0d1 0d2 H E a b S 0d3 0d4 0d5 0d6 0C 0C1 G MSR 063R-1M 4 4 63 50 27 20 14 65 22 7.2 12.4 23.5 Fig.1 0.7 063R-2M 8 2 85 45 Fig.3 0.9 080R-1M 4 4 80 55 27 20 14 50 22 7.2 12.4 23.5 Fig.1 1.0 080R-2M 8 2 70 45 Fig.3 1.5 080R-4M 16 4 115 90 Fig.5 2.5 100R-1M 6 6 100 70 32 42 - 50 28 8 14.4 23.5 Fig.2 1.5 100R-2M 12 2 70 45 Fig.4 2.0 100R-4M 24 4 115 90 Fig.6 3.2 125R-1M 6 6 125 85 40 58 - 60 30 9 16.4 23.5 Fig.2 3.4 125R-2M 12 2 70 45 Fig.4 3.7 125R-4M 24 4 115 90 Fig.6 6.0 160R-1M 8 8 160 100 40 68 - 60 30 10 16.4 23.5 Fig.2 6.1 160R-2M 16 2 70 45 Fig.4 6.8 200R-1M 10 10 200 130 60 - 60 38 15 25.4 23.5 18 26 - 101.6 - 32 Fig.7 7.0 200R-2M 20 2 80 45 Fig.8 9.9 250R-1M 12 12 250 130 60 - 60 38 15 25.4 23.5 18 26 - 101.6 - 32 Fig.7 10.3 250R-2M 24 2 80 45 Fig.8 14.2 315R-1M MTO 14 14 315 230 60 60 35 15 25.4 23.5 17 27 22 32 101.6 177.8 25 Fig.9 15.5 Shim is not available for MSR063R (0D=63). -Mounting bolt (HH12X35) is included for MSR063R / MSR080R. It is not recommended using only top edge part (under ap=30mm) for 4 stages type. If ap is small, use 1 stage or 2 stages type. Deep slotting is not recommended for this cutter. Toolholder Dimensions (Bore Dia. 0d: Inch spec) ascription Std. No. of No. of No. of Dimension (mm) Размеры в мм Drawing Weight (kg) Вес инструмента в кг (kg) Inserts Flutes Stages 0D 0D1 0d 0d1 0d2 H E a b S 0d3 0d4 0d5 0d6 0C 0C1 G 063R-1 4 4 63 50 25.4 20 14 65 26 6 9.5 23.5 Fig.1 0.8 063R-2 8 2 85 45 Fig.3 1.0 080R-1 4 55 25.4 20 14 50 26 6 9.5 23.5 Fig.1 1.1 080R-2 8 2 70 45 Fig.3 1.6 080R-2-31.75 4 80 70 31.75 27 18 32 8 12.7 Fig.3 1.7 080R-4 16 4 55 25.4 20 14 115 26 6 9.5 90 Fig.5 2.6 080R-4-31.75 70 31.75 27 18 32 8 12.7 Fig.5 2.7 100R-1 6 50 23.5 Fig.2 1.6 100R-2 12 6 2 100 70 31.75 42 - 70 32 8 12.7 45 Fig.4 2.2 100R-4 24 4 115 90 Fig.6 3.6 125R-1 6 60 23.5 Fig.2 3.5 125R-2 12 6 2 125 85 38.1 54 - 70 38 10 15.9 45 Fig.4 3.8 125R-4 24 4 115 90 Fig.6 6.1 160R-1 8 60 23.5 Fig.2 5.8 160R-2 16 8 2 160 100 50.8 68 - 70 38 11 19.0 45 Fig.4 6.4 160R-4 32 4 115 90 Fig.6 10.7 200R-1 10 10 200 130 47.625 60 38 14 25.4 23.5 18 26 101.6 32 Fig.7 7.5 200R-2 20 2 80 45 Fig.8 10.4 250R-1 12 12 250 130 47.625 60 38 14 25.4 23.5 18 26 101.6 32 Fig.7 10.9 250R-2 24 2 80 45 Fig.8 14.7 315R-1 MTO 14 14 315 220 47.625 60 35 14 25.4 23.5 17 27 22 32 101.6 177.8 25 Fig.9 16.0 Shim is not available for MSR063R (0D=63). -Mounting bolt (HH12X40) is included for MSR063R and MSR080R. Mounting bolt (HH16X45) is included for MSR080R-0-31.75. It is not recommended using only top edge part (under ap=30mm) for 4 stages type. If ap is small, use 1 stage or 2 stages type. Deep slotting is not recommended for this cutter. M114 : Std. Item Стандартная позиция MTO : Made to order
