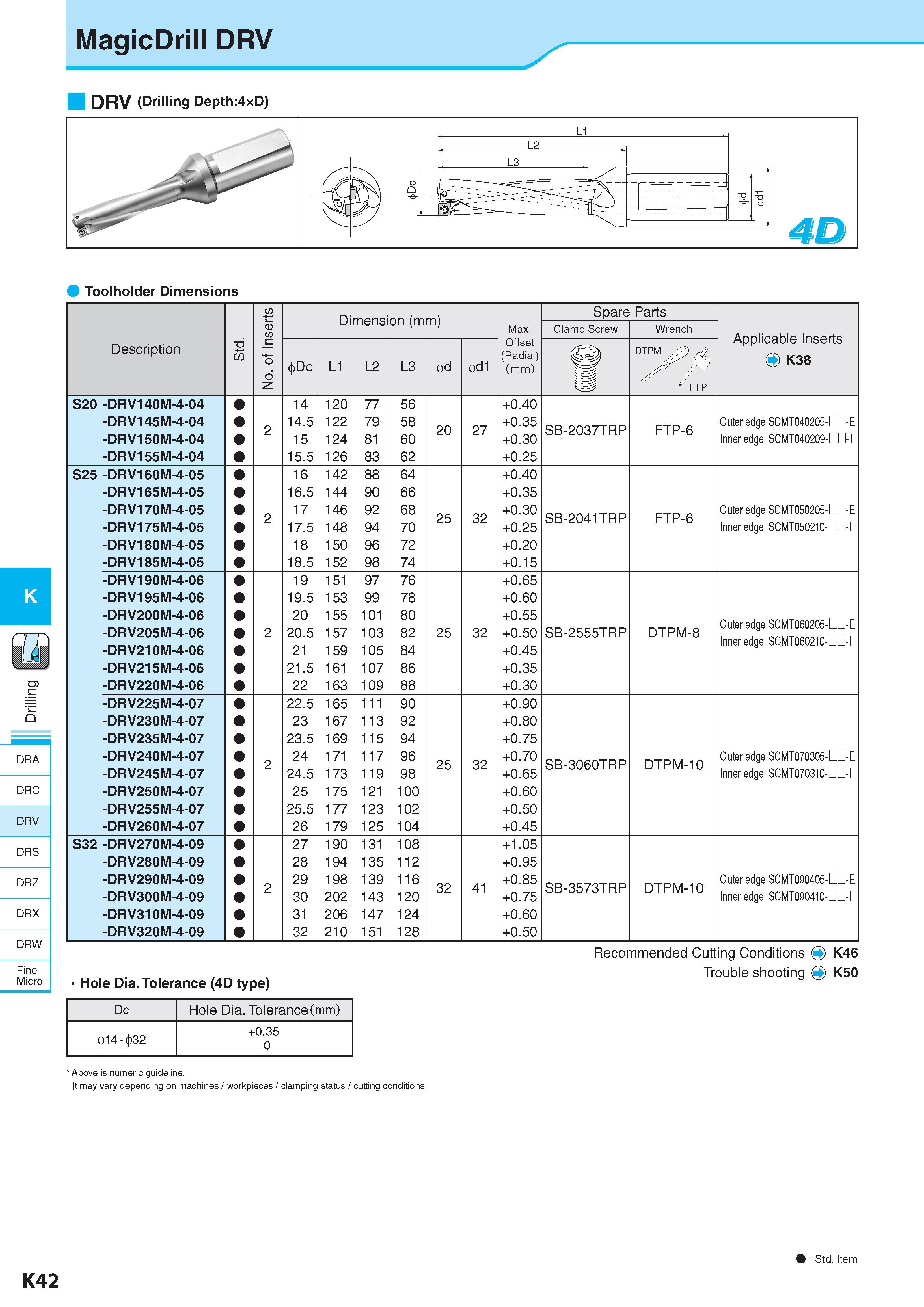

MagicDrill DRV DRV (Drilling Depth:4xD) Toolholder Dimensions K C Q DRA DRC DRV DRS DRZ DRX DRW Fine Micro No. of Inserts Dimension (mm) Размеры в мм Spare Parts Max. Clamp Screw Wrench Applicable Inserts O K38 Description Обозначение ;o GO Dc L1 L2 L3 d d1 Offset (Radial) (mm) u FTP S20 -DRV140M-4-04 14 120 77 56 +0.40 -DRV145M-4-04 2 14.5 122 79 58 20 27 +0.35 SB-2037TRP FTP-6 Outer edge SCMT040205-DD-E -DRV150M-4-04 15 124 81 60 +0.30 Inner edge SCMT040209- - -DRV155M-4-04 15.5 126 83 62 +0.25 S25 -DRV160M-4-05 16 142 88 64 +0.40 -DRV165M-4-05 16.5 144 90 66 +0.35 -DRV170M-4-05 2 17 146 92 68 25 32 +0.30 SB-2041TRP FTP-6 Outer edge SCMT050205-DD-E -DRV175M-4-05 17.5 148 94 70 +0.25 Inner edge SCMT050210-DD-I -DRV180M-4-05 18 150 96 72 +0.20 -DRV185M-4-05 18.5 152 98 74 +0.15 -DRV190M-4-06 19 151 97 76 +0.65 -DRV195M-4-06 19.5 153 99 78 +0.60 -DRV200M-4-06 20 155 101 80 +0.55 Outer edge SCMT060205-DD-E Inner edge SCMT060210-DD-I -DRV205M-4-06 2 20.5 157 103 82 25 32 +0.50 SB-2555TRP DTPM-8 -DRV210M-4-06 21 159 105 84 +0.45 -DRV215M-4-06 21.5 161 107 86 +0.35 -DRV220M-4-06 22 163 109 88 +0.30 -DRV225M-4-07 22.5 165 111 90 +0.90 -DRV230M-4-07 23 167 113 92 +0.80 -DRV235M-4-07 23.5 169 115 94 +0.75 -DRV240M-4-07 2 24 171 117 96 25 32 +0.70 SB-3060TRP DTPM-10 Outer edge SCMT070305-DD-E -DRV245M-4-07 24.5 173 119 98 +0.65 Inner edge SCMT070310-DD-I -DRV250M-4-07 25 175 121 100 +0.60 -DRV255M-4-07 25.5 177 123 102 +0.50 -DRV260M-4-07 26 179 125 104 +0.45 S32 -DRV270M-4-09 27 190 131 108 +1.05 -DRV280M-4-09 28 194 135 112 +0.95 -DRV290M-4-09 2 29 198 139 116 32 41 +0.85 SB-3573TRP DTPM-10 Outer edge SCMT090405-DD-E -DRV300M-4-09 30 202 143 120 +0.75 Inner edge SCMT090410-DD-I -DRV310M-4-09 31 206 147 124 +0.60 -DRV320M-4-09 32 210 151 128 +0.50 Hole Dia. Tolerance (4D type) Recommended Cutting Conditions Рекомендованные режимы резания на станках O K46 Trouble shooting O K50 Dc Hole Dia. Tolerance(mm) 14- 32 +0.35 0 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. K42 : Std. Item
