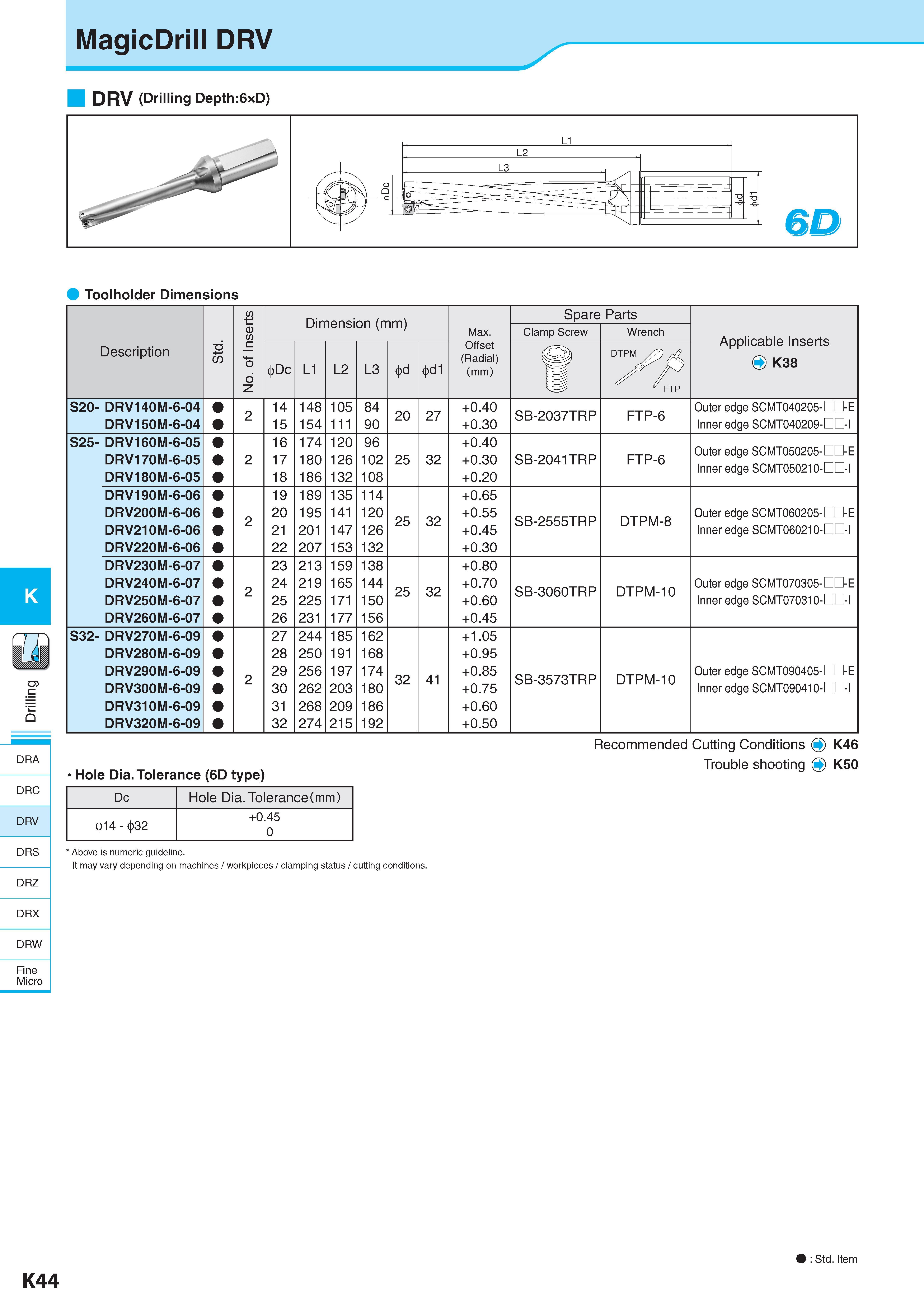

K DRA DRC DRV DRS DRZ DRX DRW Fine Micro MagicDrill DRV DRV (Drilling Depth:6xD) Toolholder Dimensions No. of Inserts Dimension (mm) Размеры в мм Spare Parts Std. Max. Clamp Screw Wrench Applicable Inserts O K38 Description Обозначение Dc L1 L2 L3 d d1 Offset (Radial) (mm) u dtpm FTP S20- DRV140M-6-04 2 14 148 105 84 20 27 +0.40 SB-2037TRP FTP-6 Outer edge SCMT040205- DD-E DRV150M-6-04 15 154 111 90 +0.30 Inner edge SCMT040209- DD-I S25- DRV160M-6-05 16 174 120 96 +0.40 Outer edge SCMT050205- DD-E Inner edge SCMT050210- DD-I DRV170M-6-05 2 17 180 126 102 25 32 +0.30 SB-2041TRP FTP-6 DRV180M-6-05 18 186 132 108 +0.20 DRV190M-6-06 19 189 135 114 +0.65 DRV200M-6-06 2 20 195 141 120 25 32 +0.55 SB-2555TRP DTPM-8 Outer edge SCMT060205- DD-E DRV210M-6-06 21 201 147 126 +0.45 Inner edge SCMT060210- DD-I DRV220M-6-06 22 207 153 132 +0.30 DRV230M-6-07 23 213 159 138 +0.80 DRV240M-6-07 2 24 219 165 144 25 32 +0.70 SB-3060TRP DTPM-10 Outer edge SCMT070305- DD-E DRV250M-6-07 25 225 171 150 +0.60 Inner edge SCMT070310- DD-I DRV260M-6-07 26 231 177 156 +0.45 S32- DRV270M-6-09 27 244 185 162 +1.05 DRV280M-6-09 28 250 191 168 +0.95 DRV290M-6-09 2 29 256 197 174 32 41 +0.85 SB-3573TRP DTPM-10 Outer edge SCMT090405- DD-E DRV300M-6-09 30 262 203 180 +0.75 Inner edge SCMT090410- DD-I DRV310M-6-09 31 268 209 186 +0.60 DRV320M-6-09 32 274 215 192 +0.50 Hole Dia. Tolerance (6D type) Recommended Cutting Conditions Рекомендованные режимы резания на станках O K46 Trouble shooting Q K50 Dc Hole Dia. Tolerance(mm) 14 - 4>32 +0.45 0 : Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. K44 : Std. Item
