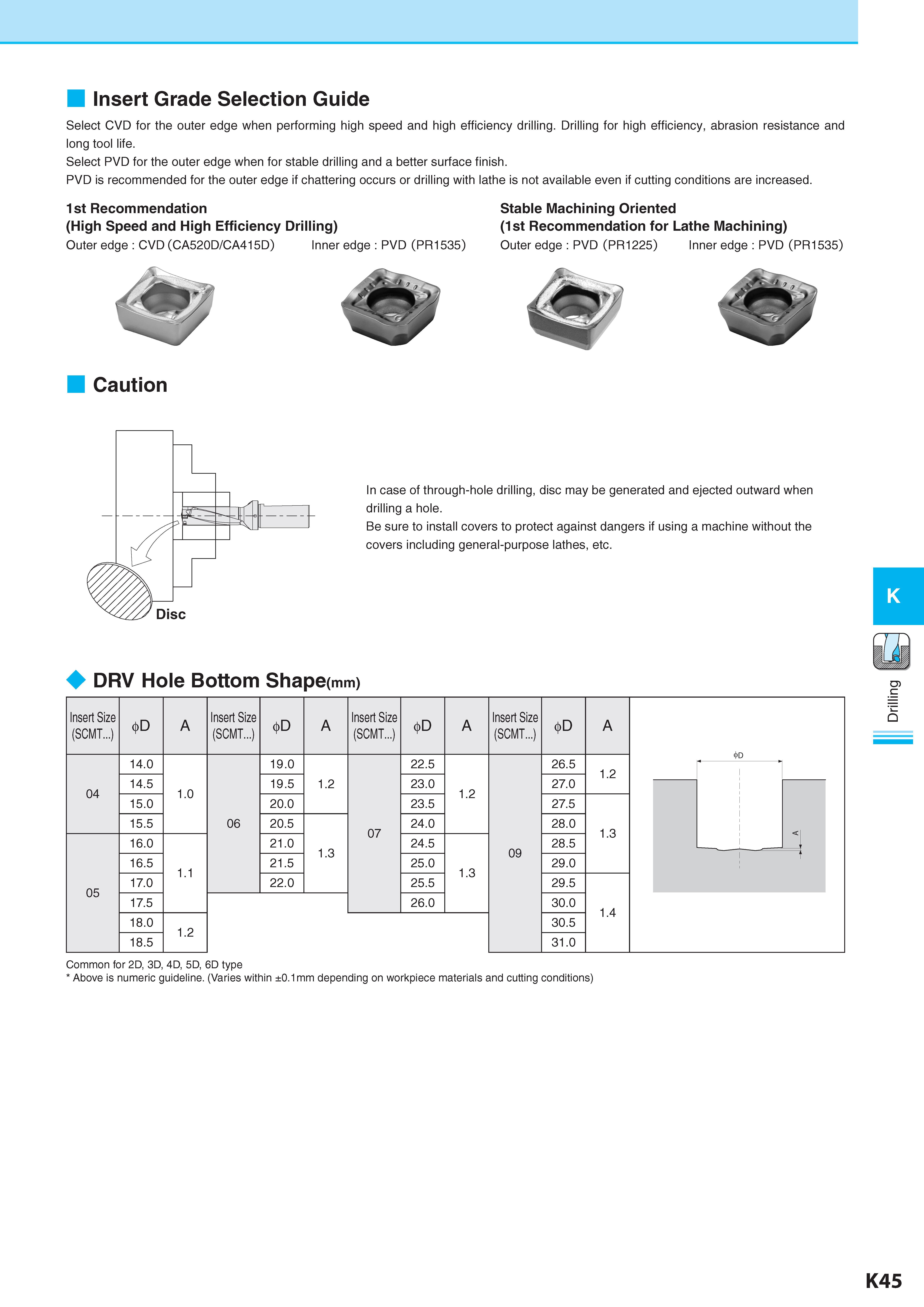

Insert Grade Selection Guide Select CVD for the outer edge when performing high speed and high efficiency drilling. Drilling for high efficiency, abrasion resistance and long tool life. Select PVD for the outer edge when for stable drilling and a better surface finish. PVD is recommended for the outer edge if chattering occurs or drilling with lathe is not available even if cutting conditions are increased. 1st Recommendation Stable Machining Oriented (High Speed and High Efficiency Drilling) (1st Recommendation for Lathe Machining) Outer edge : CVD (CA520D/CA415D) Inner edge : PVD (PR1535) Outer edge : PVD (PR1225) Inner edge : PVD (PR1535) Caution In case of through-hole drilling, disc may be generated and ejected outward when drilling a hole. Be sure to install covers to protect against dangers if using a machine without the covers including general-purpose lathes, etc. DRV Hole Bottom Shape(mm) Insert Size (SCMT...) D A Insert Size (SCMT...) 4>D A Insert Size (SCMT...) 4>D A Insert Size (SCMT...) D A 04 14.0 1.0 06 19.0 1.2 07 22.5 1.2 09 26.5 1.2 VI D 14.5 19.5 23.0 27.0 J 15.0 20.0 23.5 27.5 1.3 15.5 20.5 1.3 24.0 28.0 05 16.0 1.1 21.0 24.5 1.3 28.5 16.5 21.5 25.0 29.0 17.0 22.0 25.5 29.5 1.4 17.5 26.0 30.0 18.0 1.2 30.5 18.5 31.0 Common for 2D, 3D, 4D, 5D, 6D type Above is numeric guideline. (Varies within ±0.1mm depending on workpiece materials and cutting conditions) K45 Drilling
