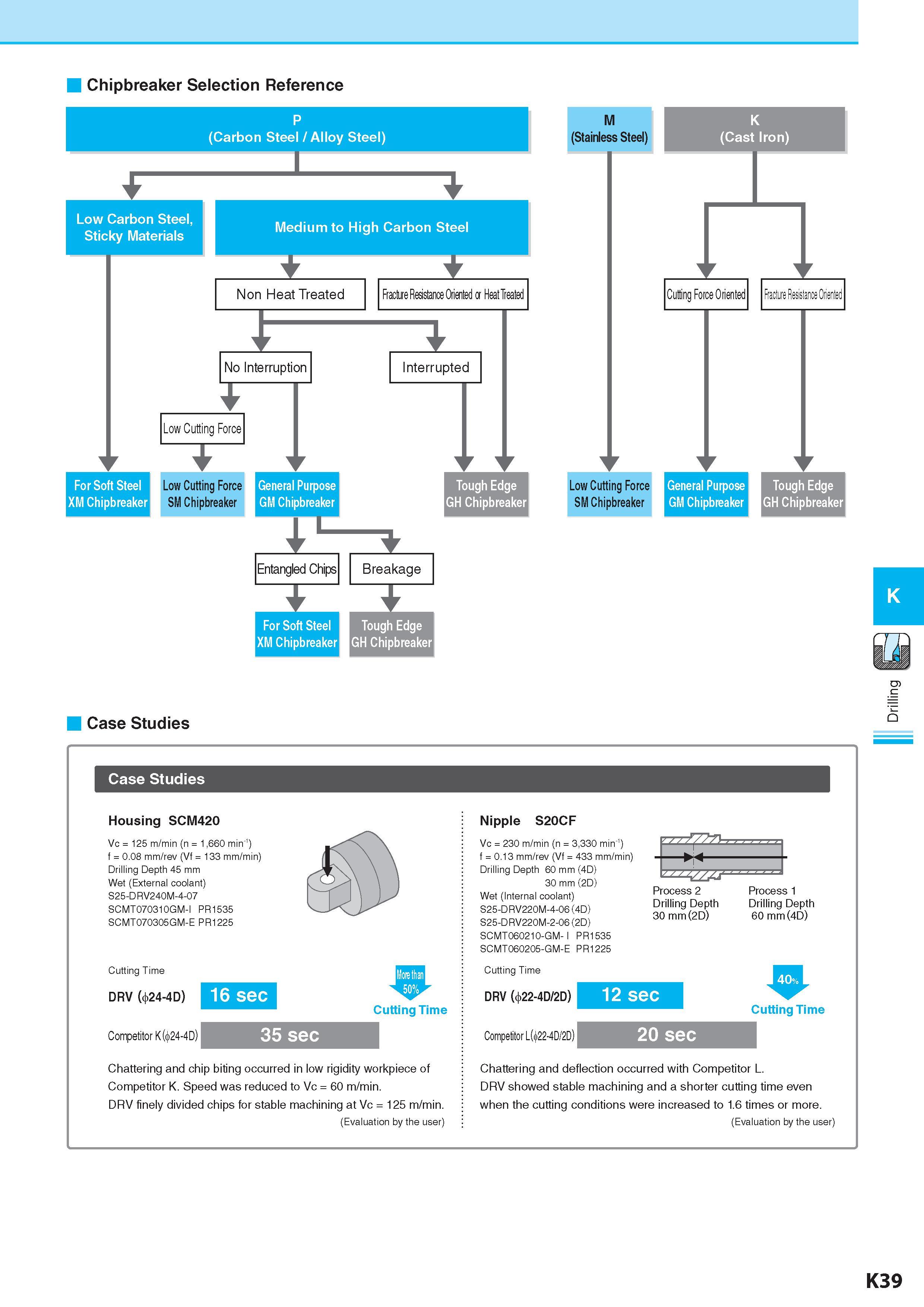

596 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K39

Каталог KYOCERA 2017 Инструмент режущий Стр. K39 0596 Lab2u

Chipbreaker Стружколом сменной пластины Selection Reference P (Carbon Steel / Alloy Steel) M (Stainless Steel) Low Carbon Steel, Sticky Materials Medium to High Carbon Steel Non Heat Treated I Fracture Resistance Oriented or Heat Treated No Interruption Low Cutting Force Interrupted K (Cast Iron) 1 r 1 r Cutting For 1 ;e Oriented 1 Fracture Resis 1 tance Oriented 1 For Soft Steel Low Cutting Force General Purpose Tough Edge Low Cutting Force 1 General Purpose 1 1 Tough Edge XM Chipbreaker Стружколом сменной пластины SM Chipbreaker Стружколом сменной пластины GM Chipbreaker Стружколом сменной пластины GH Chipbreaker Стружколом сменной пластины SM Chipbreaker Стружколом сменной пластины 1 GM Chipbreaker Стружколом сменной пластины 1 IgH Chipbreaker Стружколом сменной пластины 3 Entangled Chips Breakage For Soft Steel XM Chipbreaker Стружколом сменной пластины Tough Edge GH Chipbreaker Стружколом сменной пластины Case Studies Case Studies Housing SCM420 Vc = 125 m/min (n = 1,660 min-1) f = 0.08 mm/rev (Vf = 133 mm/min) Drilling Depth 45 mm Wet (External coolant) S25-DRV240M-4-07 SCMT070310GM-I PR1535 SCMT070305GM-E PR1225 Cutting Time DRV ( 24-4D) Competitor K( 24-4D) 16 sec Cutting Time 35 sec Chattering and chip biting occurred in low rigidity workpiece of Competitor K. Speed was reduced to Vc = 60 m/min. DRV finely divided chips for stable machining at Vc = 125 m/min. (Evaluation by the user) Nipple S20CF Vc = 230 m/min (n = 3,330 min-1) f = 0.13 mm/rev (Vf = 433 mm/min) Drilling Depth 60 mm (4D) 30 mm (2D) Wet (Internal coolant) S25-DRV220M-4-06(4D) S25-DRV220M-2-06(2D) SCMT060210-GM- I PR1535 SCMT060205-GM-E PR1225 Cutting Time DRV ( 22-4D/2D) Competitor L( 22-4D/2D) -M- izzz zz Process 2 Drilling Depth 30 mm (2D) 12 sec 20 sec Process 1 Drilling Depth 60 mm(4D) 40% Cutting Time Chattering and deflection occurred with Competitor L. DRV showed stable machining and a shorter cutting time even when the cutting conditions were increased to 1.6 times or more. (Evaluation by the user) K39 Drilling
