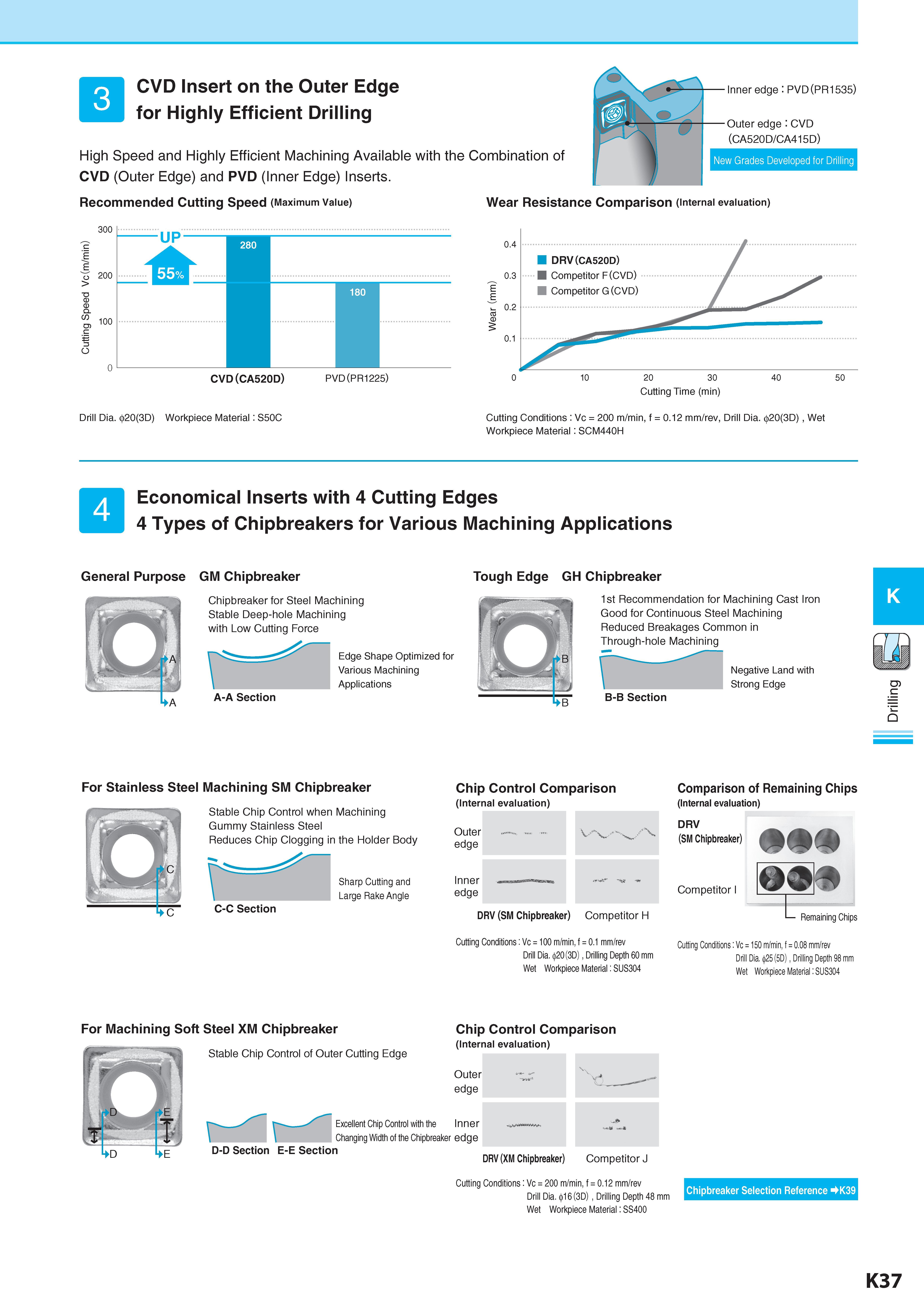

CVD Insert on the Outer Edge for Highly Efficient Drilling -Outer edge : CVD (CA520D/CA415D) High Speed and Highly Efficient Machining Available with the Combination of CVD (Outer Edge) and PVD (Inner Edge) Inserts. Recommended Cutting Speed (Maximum Value) Wear Resistance Comparison (Internal evaluation) UP CVD (CA520D) Drill Dia. 020(3D) Workpiece Material: S50C PVD(PR1225) Inner edge : PVD(PR1535) New Grades Developed for Drilling Cutting Time (min) Cutting Conditions : Vc = 200 m/min, f = 0.12 mm/rev, Drill Dia. 20(3D) , Wet Workpiece Material: SCM440H 300 200 0 Economical Inserts with 4 Cutting Edges 4 Types of Chipbreakers for Various Machining Applications General Purpose GM Chipbreaker Стружколом сменной пластины Tough Edge GH Chipbreaker Стружколом сменной пластины Chipbreaker for Steel Machining Stable Deep-hole Machining with Low Cutting Force Edge Shape Optimized for Various Machining Applications A-A Section 1st Recommendation for Machining Cast Iron Good for Continuous Steel Machining Reduced Breakages Common in Through-hole Machining Negative Land with Strong Edge B-B Section For Stainless Steel Machining SM Chipbreaker Стружколом сменной пластины Stable Chip Control when Machining Gummy Stainless Steel Reduces Chip Clogging in the Holder Body Sharp Cutting and Large Rake Angle C-C Section Chip Control Comparison (Internal evaluation) Outer edge Inner edge DRV (SM Chipbreaker) Competitor H Cutting Conditions: Vc = 100 m/min, f = 0.1 mm/rev Drill Dia. 020 (3D), Drilling Depth 60 mm Wet Workpiece Material: SUS304 Comparison of Remaining Chips (Internal evaluation) DRV (SM Chipbreaker) Competitor I Remaining Chips Cutting Conditions: Vc = 150 m/min, f = 0.08 mm/rev Drill Dia. 25 (5D), Drilling Depth 98 mm Wet Workpiece Material: SUS304 For Machining Soft Steel XM Chipbreaker Стружколом сменной пластины Stable Chip Control of Outer Cutting Edge Chip Control Comparison (Internal evaluation) Outer - edge D-D Section E-E Section Excellent Chip Control with the Inner Changing Width of the Chipbreaker Стружколом сменной пластины edge DRV (XM Chipbreaker) Competitor J Cutting Conditions: Vc = 200 m/min, f = 0.12 mm/rev Drill Dia. 016 (3D) , Drilling Depth 48 mm Wet Workpiece Material: SS400 Chipbreaker Стружколом сменной пластины Selection Reference 4K39 K37 Drilling
