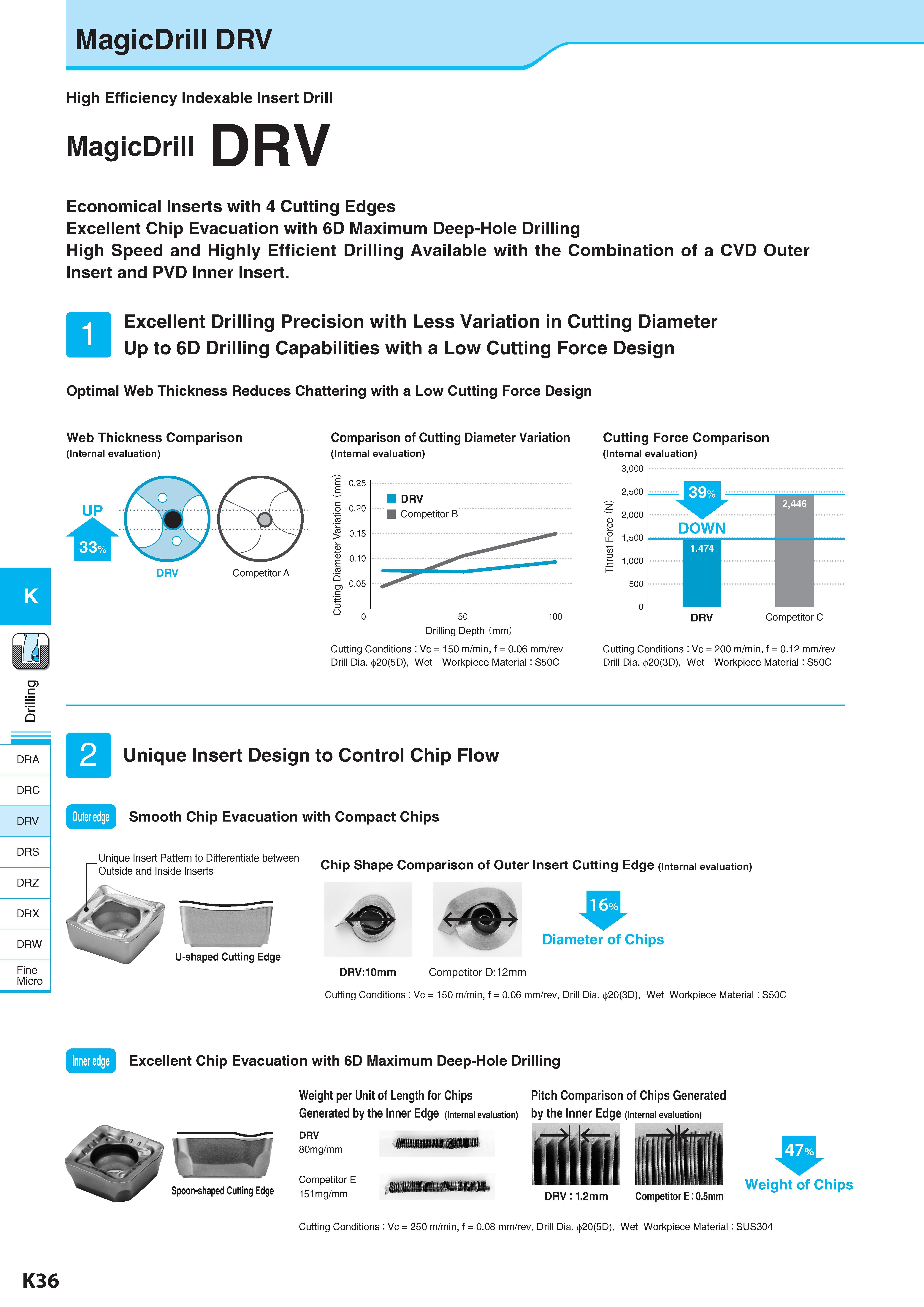

MagicDrill DRV K DRA DRC DRV DRS DRZ DRX DRW Fine Micro High Efficiency Indexable Insert Drill MagicDrill DRV Economical Inserts with 4 Cutting Edges Excellent Chip Evacuation with 6D Maximum Deep-Hole Drilling High Speed and Highly Efficient Drilling Available with the Combination of a CVD Outer Insert and PVD Inner Insert. Excellent Drilling Precision with Less Variation in Cutting Diameter Up to 6D Drilling Capabilities with a Low Cutting Force Design Optimal Web Thickness Reduces Chattering with a Low Cutting Force Design Web Thickness Comparison (Internal evaluation) Comparison of Cutting Diameter Variation (Internal evaluation) Cutting Conditions : Vc = 150 m/min, f = 0.06 mm/rev Drill Dia. 20(5D), Wet Workpiece Material: S50C Cutting Force Comparison (Internal evaluation) 3,000 ....................... 2,500 ......... f 2,°oo I DOWN GO j= 1,000 H :LB DRV Competitor C Cutting Conditions : Vc = 200 m/min, f = 0.12 mm/rev Drill Dia. 20(3D), Wet Workpiece Material: S50C Unique Insert Design to Control Chip Flow Outer edge Smooth Chip Evacuation with Compact Chips Unique Insert Pattern to Differentiate between Outside and Inside Inserts U-shaped Cutting Edge Chip Shape Comparison of Outer Insert Cutting Edge (Internal evaluation) FfrJ Diameter of Chips DRV:10mm Competitor D:12mm Cutting Conditions : Vc = 150 m/min, f = 0.06 mm/rev, Drill Dia. 20(3D), Wet Workpiece Material: S50C Excellent Chip Evacuation with 6D Maximum Deep-Hole Drilling Spoon-shaped Cutting Edge Weight (kg) Вес инструмента в кг per Unit of Length for Chips Pitch Comparison of Chips Generated Generated by the Inner Edge (Internal evaluation) by the Inner Edge (Internal evaluation) Z- jrtLte. iniiBi 151 mg/mm DRV: 1.2mm Competitor E: 0.5mm 47% Weight (kg) Вес инструмента в кг of Chips Cutting Conditions : Vc = 250 m/min, f = 0.08 mm/rev, Drill Dia. 20(5D), Wet Workpiece Material: SUS304 K36
