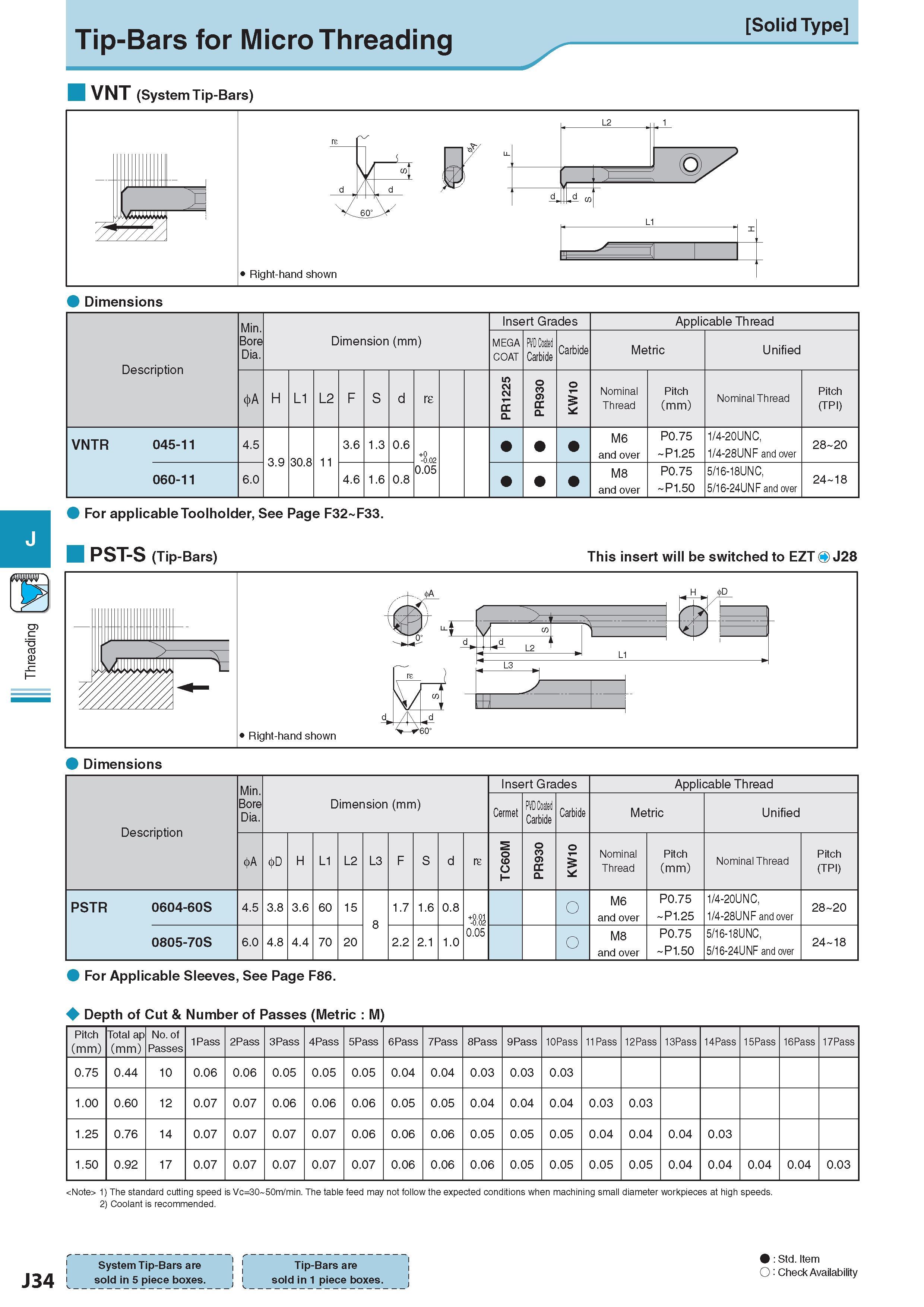

Threading J34 Tip-Bars for Micro Threading Solld Type VNT (System Tip-Bars) Показано правое исполнение инструмента Dimensions Description Обозначение Min. Bore Dia. Dimension (mm) Размеры в мм Insert Grades Applicable Thread MEGA COAT PVD Coated Carbide Carbide Metric Unified A H L1 L2 F S d re U) IT CL 0 at H. a. 0 1 <: K Nominal Thread Pitch (mm) Nominal Thread Pitch (TPI) VNTR 045-11 4.5 3.9 30.8 11 3.6 1.3 0.6 +0 -0.02 0.05 M6 and over P0.75 P1.25 1/4-20UNC, 1/4-28UNF and over 28 20 060-11 6.0 4.6 1.6 0.8 M8 and over P0.75 P1.50 5/16-18UNC, 5/16-24UNF and over 24 18 For applicable Toolholder, See Page F32 F33. PST-S (Tip-Bars) This insert will be switched to EZT J28 Dimensions Min. Bore Dia. Insert Grades Applicable Thread Description Обозначение Dimension (mm) Размеры в мм Cermet PVD Coated Carbide Carbide Metric Unified A D H L1 L2 L3 F S d re TC60M PR930 KW10 Nominal Thread Pitch (mm) Nominal Thread Pitch (TPI) PSTR 0604-60S 4.5 3.8 3.6 60 15 8 1.7 1.6 0.8 +0.01 -0.02 O M6 and over P0.75 P1.25 1/4-20UNC, 1/4-28UNF and over 28 20 0805-70S 6.0 4.8 4.4 70 20 2.2 2.1 1.0 0.05 o M8 and over P0.75 P1.50 5/16-18UNC, 5/16-24UNF and over 24 18 For Applicable Sleeves, See Page F86. Depth of Cut & Number of Passes (Metric : M Pitch (mm) Total ap (mm) No. of Passes 1Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 0.75 0.44 10 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 0.03 1.00 0.60 12 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.04 0.04 0.04 0.03 0.03 1.25 0.76 14 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.03 1.50 0.92 17 0.07 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.04 0.03 1) The standard cutting speed is Vc=30 50m/min. The table feed may not follow the expected conditions when machining small diameter workpieces at high speeds. 2) Coolant is recommended. System Tip-Bars are ' Tip-Bars are ' 5 ' m .. ....... ... . . . O Check Availability sold in 5 piece boxes. i sold in 1 piece boxes.
