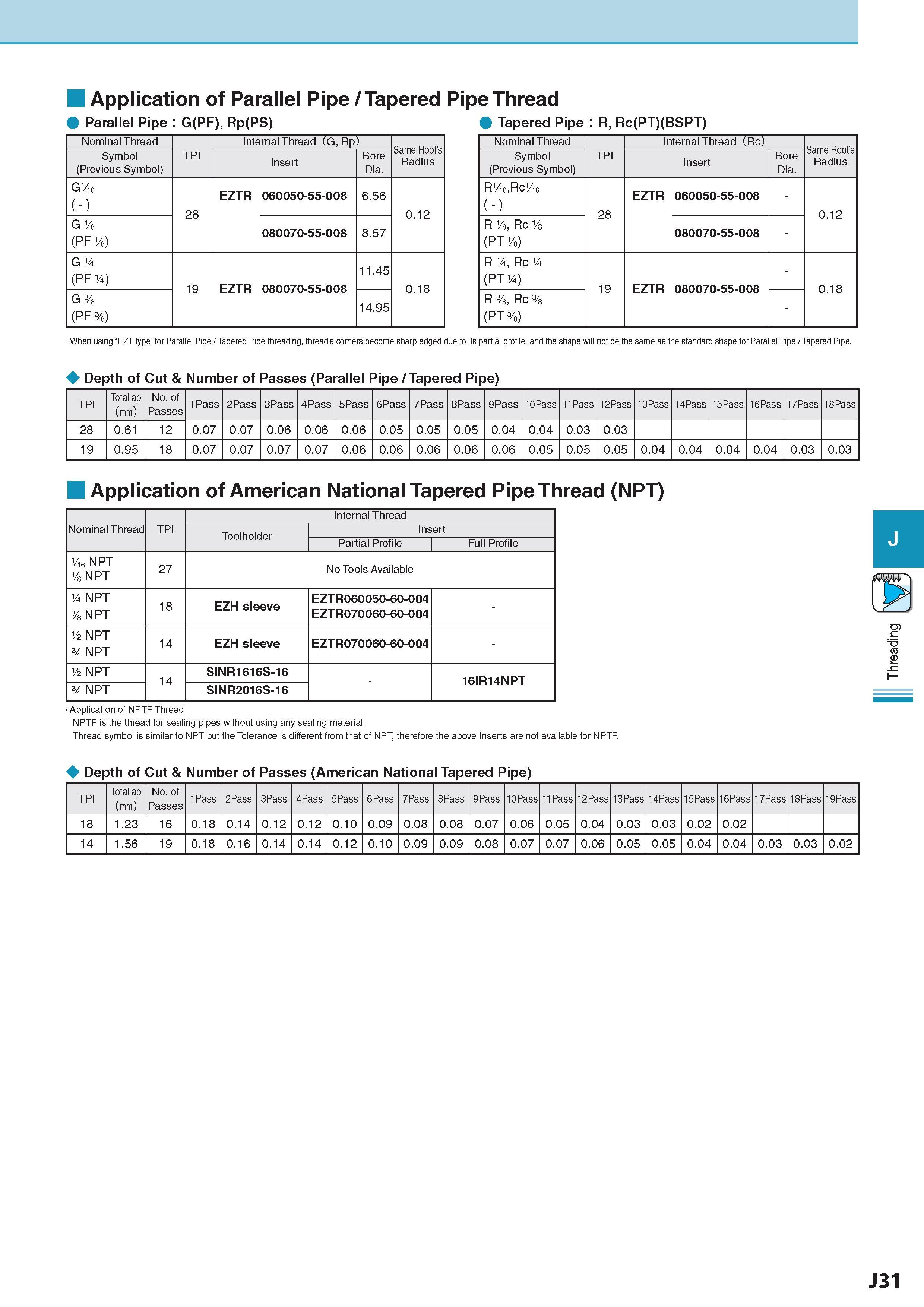

Application of Parallel Pipe / Tapered Pipe Thread Parallel Pipe : G(PF), Rp(PS) Tapered Pipe : R, Rc(PT)(BSPT) Nominal Thread TPI Internal Thread (G, Rp) Same Root's Radius Symbol (Previous Symbol) Insert Bore Dia. G1/46 ( - ) 28 EZTR 060050-55-008 6.56 0.12 G V8 (PF %) 080070-55-008 8.57 G 1/4 (PF 1/4) 19 EZTR 080070-55-008 11.45 0.18 G % (PF %) 14.95 Nominal Thread TPI Internal Thread (Rc) Same Root's Radius Symbol (Previous Symbol) Insert Bore Dia. R1/16,Rc1/16 ( - ) 28 EZTR 060050-55-008 - 0.12 R Vs, Rc Vs (PT %) 080070-55-008 - R 1/4, Rc 1/4 (PT 1/4) 19 EZTR 080070-55-008 - 0.18 R %, Rc % (PT =/8) - When using “EZT type" for Parallel Pipe / Tapered Pipe threading, thread's comens become sharp edged due to its partial profile, and the shape will not be the same as the standard shape for Parallel Pipe / Tapered Pipe. Depth of Cut & Number of Passes (Parallel Pipe / Tapered Pipe) TPI Total ap (mm) No. of Passes 1Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 18Pass 28 0.61 12 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 19 0.95 18 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.04 0.03 0.03 Application of American National Tapered Pipe Thread (NPT) D Application of NPTF Thread NPTF is the thread for sealing pipes without using any sealing material. Thread symbol is similar to NPT but the Tolerance is different from that of NPT, therefore the above Inserts are not available for NPTF Depth of Cut & Number of Passes (American National Tapered Pipe) Nominal Thread TPI Internal Thread Toolholder Insert Partial Profile Full Profile 1/16 NPT 1/8 NPT 27 No Tools Available 1/4 NPT % NPT 18 EZH sleeve EZTR060050-60-004 EZTR070060-60-004 - 1/2 NPT 3/4 NPT 14 EZH sleeve EZTR070060-60-004 - 1/2 NPT 14 SINR1616S-16 - 16IR14NPT 3/4 NPT SINR2016S-16 TPI Total ap (mm) No. of Passes 1Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 18Pass 19Pass 18 1.23 16 0.18 0.14 0.12 0.12 0.10 0.09 0.08 0.08 0.07 0.06 0.05 0.04 0.03 0.03 0.02 0.02 14 1.56 19 0.18 0.16 0.14 0.14 0.12 0.10 0.09 0.09 0.08 0.07 0.07 0.06 0.05 0.05 0.04 0.04 0.03 0.03 0.02 J31 Threading
