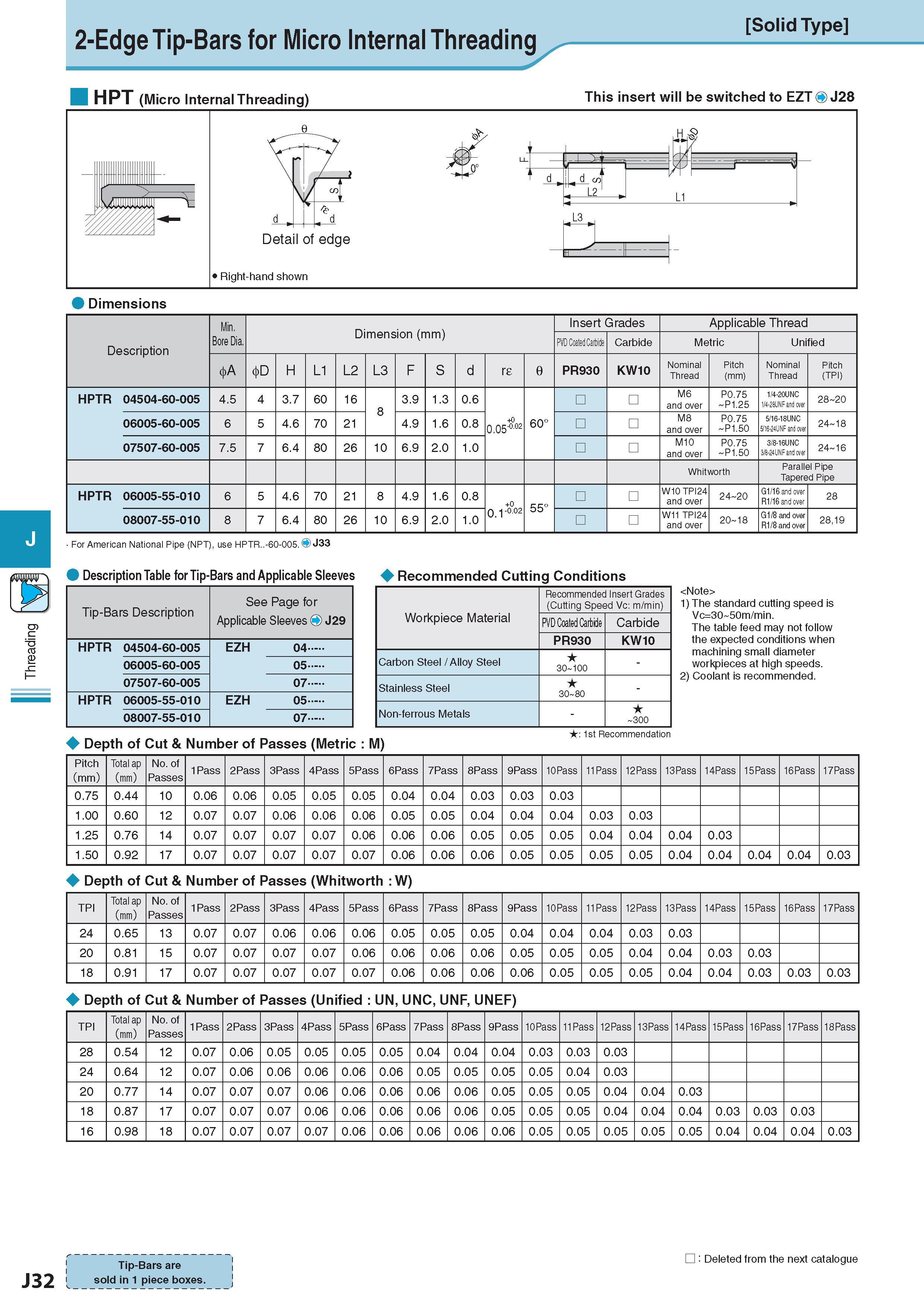

2-Edge Tip-Bars for Micro Internal Threading Solid Type HPT (Micro Internal Threading) This insert will be switched to EZT O J28 Dimensions c T3 Description Обозначение Min. Bore Dia. Dimension (mm) Размеры в мм Insert Grades Applicable Thread PVD Coated Caibide Carbide Metric Unified A D H L1 L2 L3 F S d re e PR930 KW10 Nominal Thread Pitch (mm) Nominal Thread Pitch (TPI) HPTR 04504-60-005 4.5 4 3.7 60 16 8 3.9 1.3 0.6 +0 0.05-002 6 O 0 M6 and over P0.75 P1.25 1/4-20UNC 1/4-28UNF and over 28 20 06005-60-005 6 5 4.6 70 21 4.9 1.6 0.8 M8 and over P0.75 P1.50 5/16-18UNC 5/16-24UNF and over 18 T 4 2 07507-60-005 7.5 7 6.4 80 26 10 6.9 2.0 1.0 M10 and over P0.75 P1.50 3/8-16UNC 3/8-24UNF and over 16 T 4 2 Whitworth Parallel Pipe Tapered Pipe HPTR 06005-55-010 6 5 4.6 70 21 8 4.9 1.6 0.8 +0 0.1-002 55° W10 TPI24 and over 24 20 G1/16 and over R1/16 and over 28 08007-55-010 8 7 6.4 80 26 10 6.9 2.0 1.0 W11 TPI24 and over 18 T 0 2 G1/8 and over R1/8 and over 28,19 For American National Pipe (NPT), use HPTR..-60-005.0 J33 Description Обозначение Table for Tip-Bars and Applicable Sleeves Recommended Cutting Conditions Рекомендованные режимы резания на станках 1) The standard cutting speed is Vc=30 50m/min. The table feed may not follow the expected conditions when machining small diameter workpieces at high speeds. 2) Coolant is recommended. Tip-Bars Description Обозначение See Page for Applicable Sleeves 4 J29 HPTR 04504-60-005 EZH 04 06005-60-005 05 07507-60-005 07 HPTR 06005-55-010 EZH 05 08007-55-010 07 Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Workpiece Material Обрабатываемый материал PVD Coated Carbide Carbide PR930 KW10 Carbon Steel / Alloy Steel 30 100 - Stainless Steel 30 80 - Non-ferrous Metals - 300 Depth of Cut & Number of Passes (Metric : M 1st Recommendation Pitch (mm) Total ap (mm) No. of Passes 1Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 0.75 0.44 10 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 0.03 1.00 0.60 12 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.04 0.04 0.04 0.03 0.03 1.25 0.76 14 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.03 1.50 0.92 17 0.07 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.04 0.03 Depth of Cut & Number of Passes (Whitworth : W) TPI Total ap (mm) No. of Passes 1Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 24 0.65 13 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.03 0.03 20 0.81 15 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 18 0.91 17 0.07 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 0.03 Depth of Cut & Number of Passes (Unified : UN, UNC, UNF, UNEF) TPI Total ap (mm) No. of Passes 1Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 18Pass 28 0.54 12 0.07 0.06 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.03 0.03 0.03 24 0.64 12 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.05 0.04 0.03 20 0.77 14 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 18 0.87 17 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.03 0.03 0.03 16 0.98 18 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.03 j Tip-Bars are J32 l sold in 1 piece boxes. : Deleted from the next catalogue
