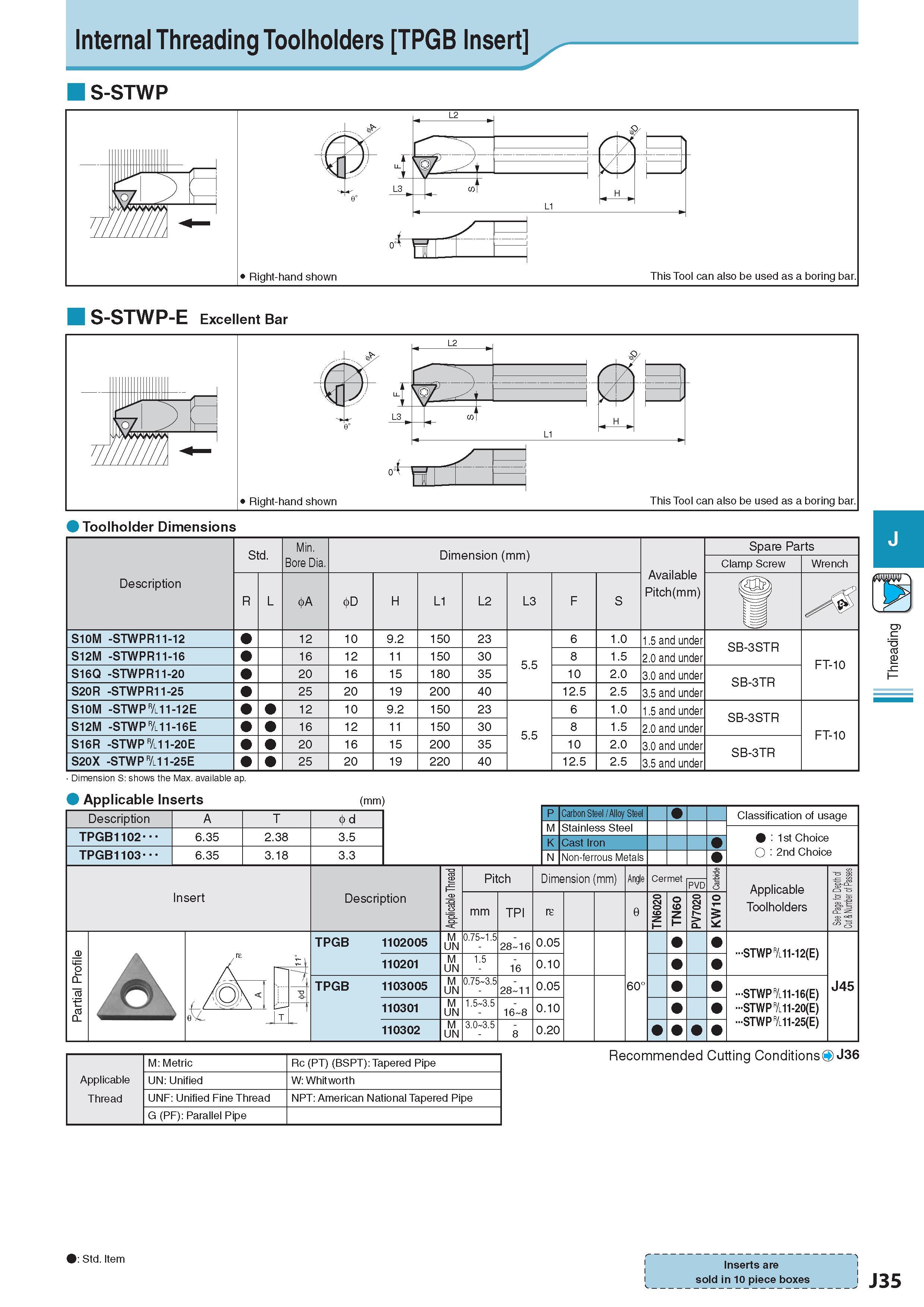

Internal Threading Toolholders TPGB Insert S-STWP S-STWP-E Excellent Bar Description Обозначение Std. Min. Bore Dia. Dimension (mm) Размеры в мм Available Pitch(mm) Spare Parts Clamp Screw Wrench R L A D H L1 L2 L3 F S u S10M -STWPR11-12 12 10 9.2 150 23 5.5 6 1.0 1.5 and under SB-3STR FT-10 S12M -STWPR11-16 16 12 11 150 30 8 1.5 2.0 and under S16Q -STWPR11-20 20 16 15 180 35 10 2.0 3.0 and under SB-3TR S20R -STWPR11-25 25 20 19 200 40 12.5 2.5 3.5 and under S10M -STWP&11-12E 12 10 9.2 150 23 5.5 6 1.0 1.5 and under SB-3STR FT-10 S12M -STWP&11-16E 16 12 11 150 30 8 1.5 2.0 and under S16R -STWP&11-20E 20 16 15 200 35 10 2.0 3.0 and under SB-3TR S20X -STWP&11-25E 25 20 19 220 40 12.5 2.5 3.5 and under g in di Dimension S: shows the Max. available ap. Applicable Inserts (mm) Description Обозначение TPGB1102- TPGB1103- A 6.35 6.35 2.38 3.18 3.5 3.3 Carbon Steel / Alloy Steel Stainless Steel Cast Iron Non-ferrous Metals Classification of usage :1st Choice O: 2nd Choice Insert Description Обозначение Pitch TPI Dimension (mm) Размеры в мм Angle Applicable Toolholders TPGB 1102005 0.75 1.5 28 16 0.05 110201 1.5 16 0.10 TPGB 1103005 0.75 3.5 28 11 0.05 60 110301 1.5 3.5 16 8 0.10 110302 3.0 3.5 0.20 ..STWP&11-12(E) ..STWP&11-16(E) ..STWP&11-20(E) ..STWP&11-25(E) J45 M: Metric Rc (PT) (BSPT): Tapered Pipe Applicable UN: Unified W: Whitworth Thread UNF: Unified Fine Thread NPT: American National Tapered Pipe G (PF): Parallel Pipe Recommended Cutting Conditions Рекомендованные режимы резания на станкахC) J36 T PVD 0 mm : Std. Item Стандартная позиция r inserts are sold in 10 piece boxes J35
