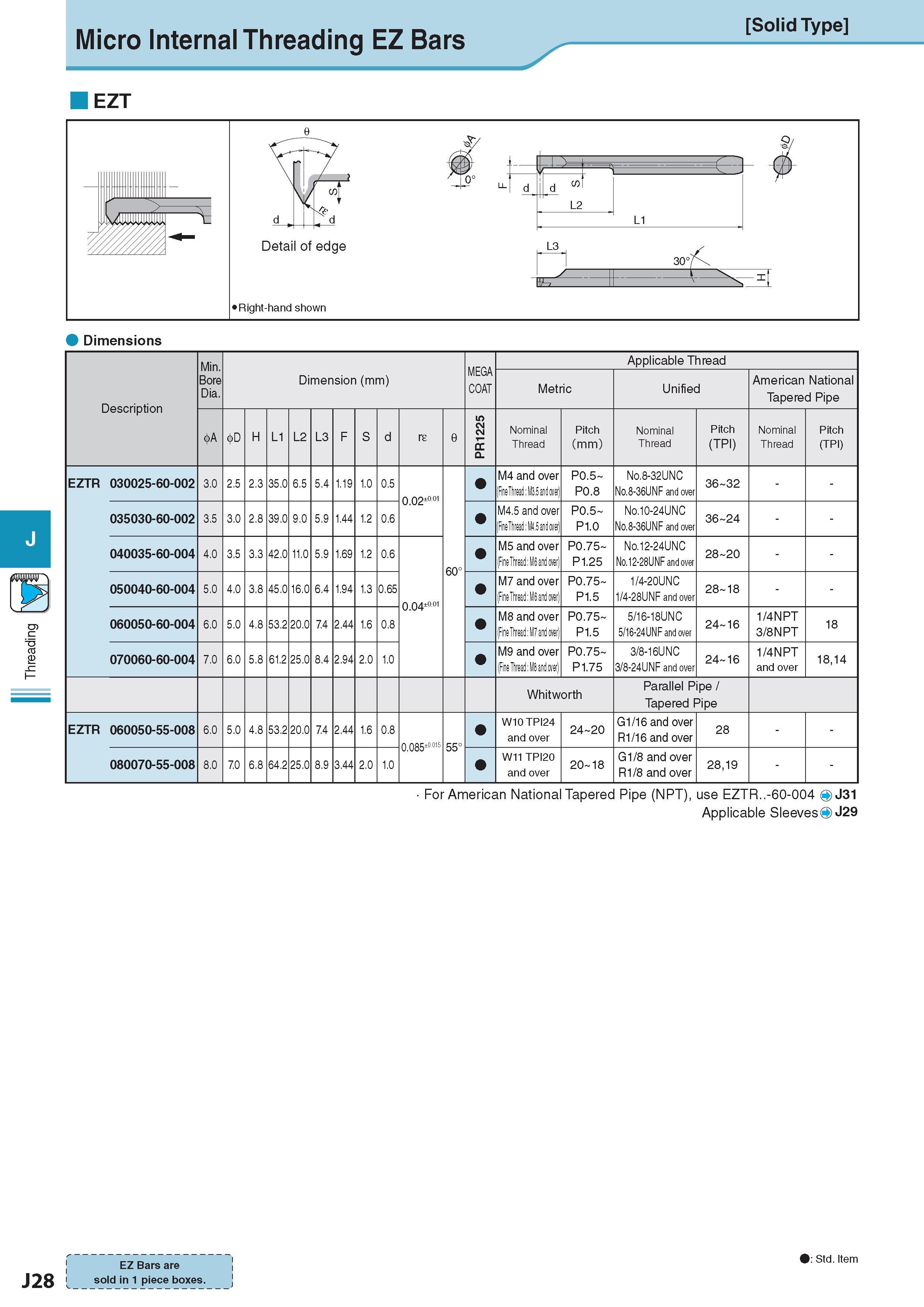

Threading J28 Micro Internal Threading EZ Bars Solld Type EZT Dimensions Description Обозначение Min. Bore Dia. Dimension (mm) Размеры в мм MEGA COAT Applicable Thread Metric Unified American National Tapered Pipe A H L1 L2 L3 F S d re e in R CL Nominal Thread Pitch (mm) Nominal Thread Pitch (TPI) Nominal Thread Pitch (TPI) EZTR 030025-60-002 3.0 2.5 2.3 35.0 6.5 5.4 1.19 1.0 0.5 0.02±o.oi 60° M4 and over (FineThread : M3.5 and over) P0.5 P0.8 No.8-32UNC No.8-36UNF and over 36 32 035030-60-002 3.5 3.0 2.8 39.0 9.0 5.9 1.44 1.2 0.6 M4.5 and over (FineThread : M4.5 and over) P0.5 P1.0 No.10-24UNC No.8-36UNF and over 36 24 040035-60-004 4.0 3.5 3.3 42.0 11.0 5.9 1.69 1.2 0.6 0.04±o.oi M5 and over (Fine Thread : U6 and over) P0.75 P1.25 No.12-24UNC No.12-28UNF and over 28 20 050040-60-004 5.0 4.0 3.8 45.0 16.0 6.4 1.94 1.3 0.65 M7 and over (Fine Thread : U6 and over) P0.75 P1.5 1/4-20UNC 1/4-28UNF and over 28 18 060050-60-004 6.0 5.0 4.8 53.2 20.0 7.4 2.44 1.6 0.8 M8 and over (Fine Thread : M7 and over) P0.75 P1.5 5/16-18UNC 5/16-24UNF and over 24 16 1/4NPT 3/8NPT 18 070060-60-004 7.0 6.0 5.8 61.2 25.0 8.4 2.94 2.0 1.0 M9 and over (Fine Thread : M8 and over) P0.75 P1.75 3/8-16UNC 3/8-24UNF and over 24 16 1/4NPT and over 18,14 Whitworth Parallel Pipe / Tapered Pipe EZTR 060050-55-008 6.0 5.0 4.8 53.2 20.0 7.4 2.44 1.6 0.8 0.085±0 015 55° W10 TPI24 and over 24 20 G1/16 and over R1/16 and over 28 080070-55-008 8.0 7.0 6.8 64.2 25.0 8.9 3.44 2.0 1.0 W11 TPI20 and over 20 18 G1/8 and over R1/8 and over 28,19 For American National Tapered Pipe (NPT), use EZTR..-60-004 OJ31 Applicable Sleeves O J29 0 i : Std. Item Стандартная позиция EZ Bars are i sold in 1 piece boxes. \
