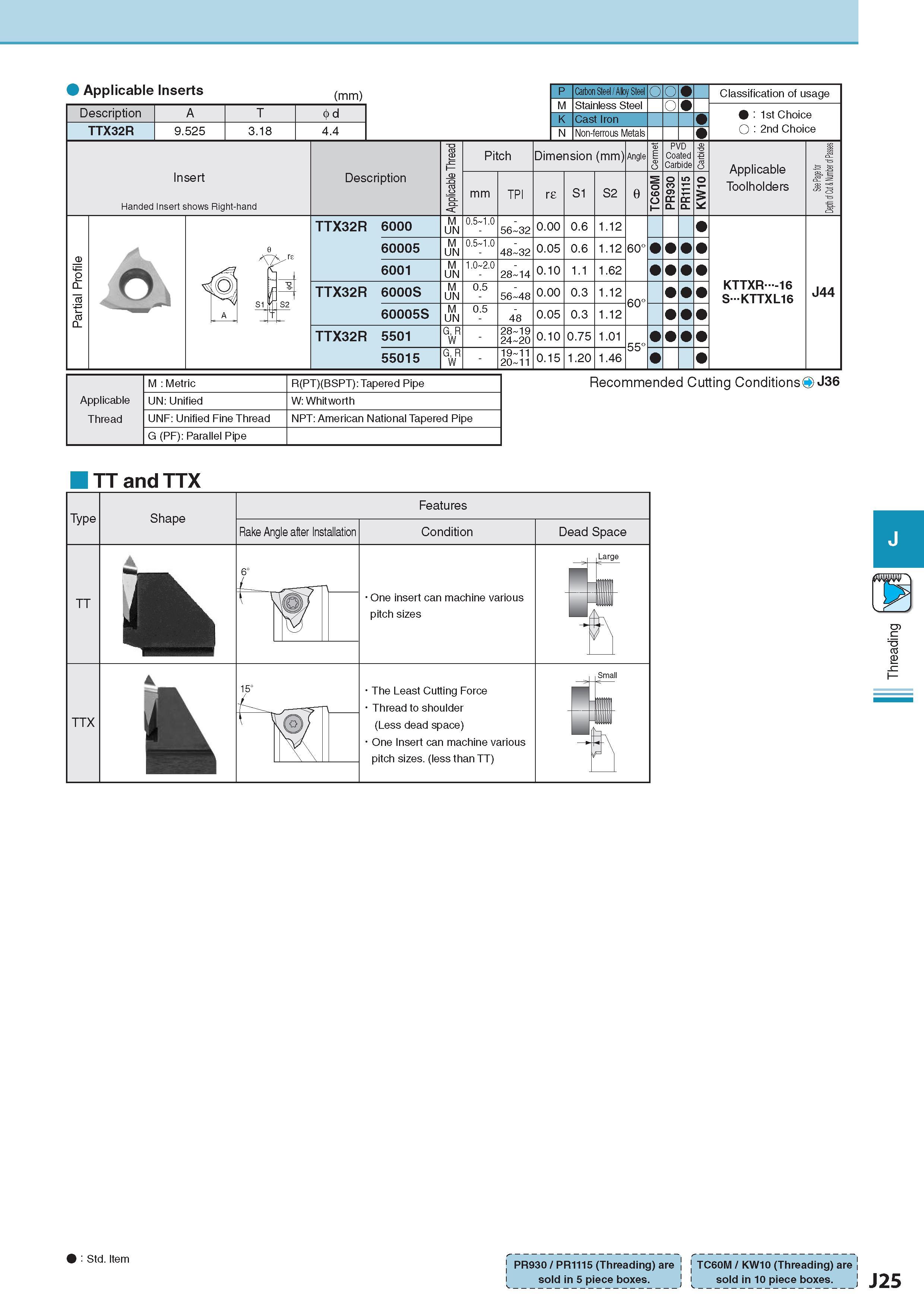

Applicable Inserts (mm) Description Обозначение A T TTX32R 9.525 3.18 4.4 Carbon Steel / Alloy Steel Stainless Steel Cast Iron Non-ferrous Metals o o o Classification of usage :1st Choice O: 2nd Choice Insert Handed Insert shows Right-hand Description Обозначение Pitch TPI Dimension (mm) Размеры в мм r e S1 S2 Angle PVD Coated Carbide Applicable Toolholders TTX32R 6000 0.5 1.0 56 32 0.00 0.6 1.12 6 60005 0.5 1.0 48 32 0.05 0.6 1.12 60° 6001 1.0 2.0 28 14 0.10 1.1 1.62 TTX32R 6000S 0.5 56 48 0.00 0.3 1.12 60005S 0.5 48 0.05 0.3 1.12 60° TTX32R 5501 G, R W 28 19 24 20 0.10 0.75 1.01 55015 G, R W 19 11 20 11 0.15 1.20 1.46 55° KTTXR...-16 S...KTTXL16 J44 Applicable Thread M : Metric R(PT)(BSPT): Tapered Pipe UN: Unified W: Whitworth UNF: Unified Fine Thread NPT: American National Tapered Pipe G (PF): Parallel Pipe Recommended Cutting Conditions Рекомендованные режимы резания на станкахO J36 Type TT TTX T and TTX Shape k Features Rake Angle after Installation Condition One insert can machine various pitch sizes The Least Cutting Force Thread to shoulder (Less dead space) One Insert can machine various pitch sizes. (less than TT) Dead Space Large P 0 mm S1 S2 6° 5 . Std.Item I PR930 / PR1115 (Threading) are ' TC60M / KW10 (Threading) are sold in 5 piece boxes. J i sold in 10 piece boxes. J J25 Threading
