528 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.J23

Каталог KYOCERA 2017 Инструмент режущий Стр. J23 0528 Lab2u

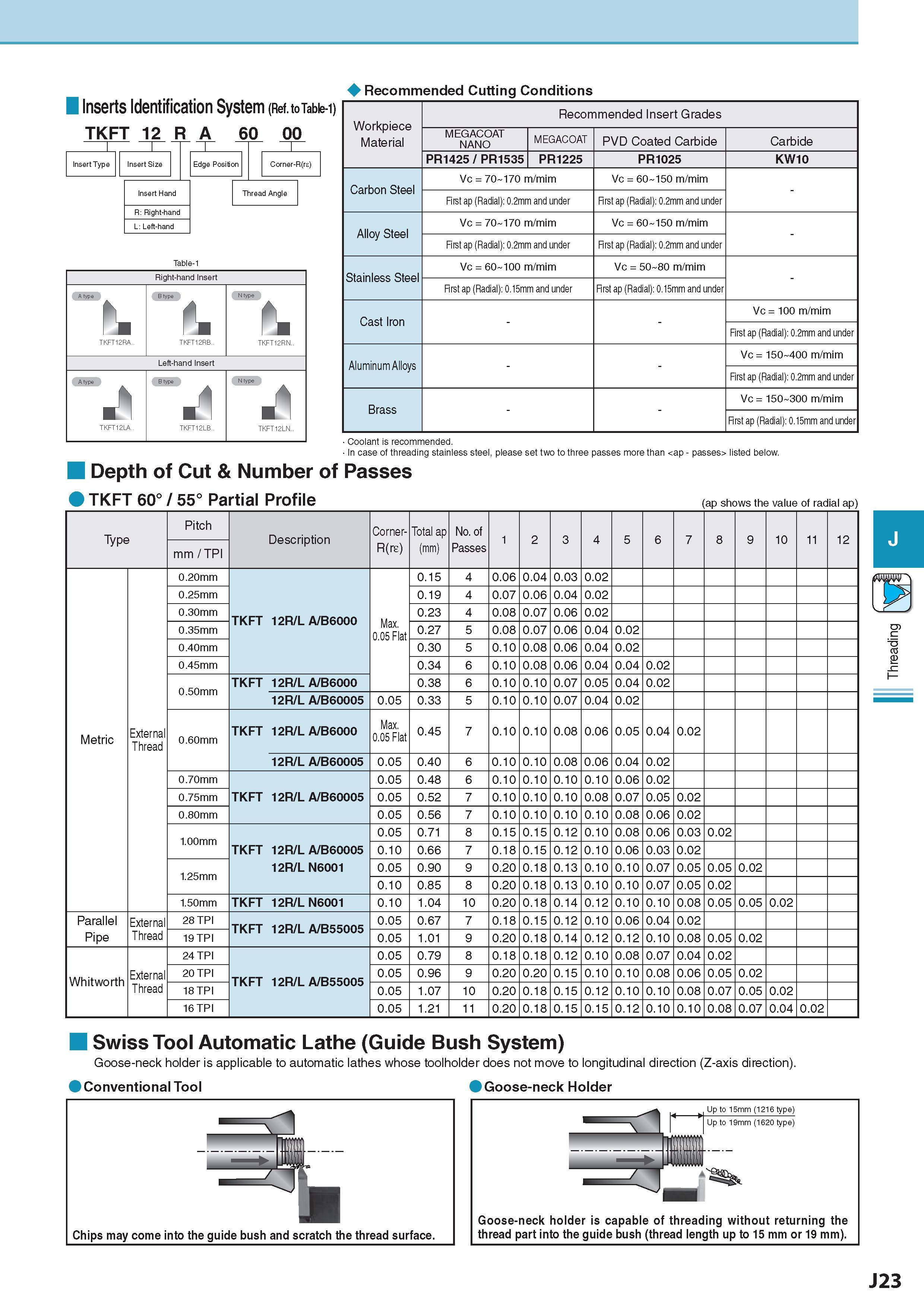

Inserts Identification System (Ref. to Table-1) TKFT 12 R A 60 00 Recommended Cutting Conditions Рекомендованные режимы резания на станках Right-hand Insert A type B type N type N TKFT12RA.. r. TKFT12RB.. rk TKFT12RN.. Left-hand Insert A type B type N type TKFT12LA.. A TKFT12LB.. A TKFT12LN.. Workpiece Material Обрабатываемый материал Recommended Insert Grades MEGACOAT NANO MEGACOAT PVD Coated Carbide Carbide PR1425 / PR1535 PR1225 PR1025 KW10 Carbon Steel Vc = 70-170 m/mim Vc = 60-150 m/mim - First ap (Radial): 0.2mm and under First ap (Radial): 0.2mm and under Alloy Steel Vc = 70-170 m/mim Vc = 60-150 m/mim - First ap (Radial): 0.2mm and under First ap (Radial): 0.2mm and under Stainless Steel Vc = 60-100 m/mim Vc = 50-80 m/mim - First ap (Radial): 0.15mm and under First ap (Radial): 0.15mm and under Cast Iron Vc = 100 m/mim First ap (Radial): 0.2mm and under Aluminum Alloys Vc = 150-400 m/mim First ap (Radial): 0.2mm and under Brass Vc = 150-300 m/mim First ap (Radial): 0.15mm and under Depth of Cut & Number of TKFT 60° / 55° Partial Profile Coolant is recommended. In case of threading stainless steel, please set two to three passes more than listed below. Passes (ap shows the value of radial ap) Type Pitch Description Обозначение Corner- Total ap No. of 1 2 3 4 5 6 7 8 9 10 11 12 mm / TPI R(re) (mm) Passes 0.20mm 0.15 4 0.06 0.04 0.03 0.02 0.25mm 0.19 4 0.07 0.06 0.04 0.02 0.30mm TKFT 12R/L A/B6000 Max. 0.05 Flat 0.23 4 0.08 0.07 0.06 0.02 0.35mm 0.27 5 0.08 0.07 0.06 0.04 0.02 0.40mm 0.30 5 0.10 0.08 0.06 0.04 0.02 0.45mm 0.34 6 0.10 0.08 0.06 0.04 0.04 0.02 0.50mm TKFT 12R/L A/B6000 0.38 6 0.10 0.10 0.07 0.05 0.04 0.02 12R/L A/B60005 0.05 0.33 5 0.10 0.10 0.07 0.04 0.02 Metric External Thread 0.60mm TKFT 12R/L A/B6000 Max. 0.05 Flat 0.45 7 0.10 0.10 0.08 0.06 0.05 0.04 0.02 12R/L A/B60005 0.05 0.40 6 0.10 0.10 0.08 0.06 0.04 0.02 0.70mm 0.05 0.48 6 0.10 0.10 0.10 0.10 0.06 0.02 0.75mm TKFT 12R/L A/B60005 0.05 0.52 7 0.10 0.10 0.10 0.08 0.07 0.05 0.02 0.80mm 0.05 0.56 7 0.10 0.10 0.10 0.10 0.08 0.06 0.02 1.00mm 0.05 0.71 8 0.15 0.15 0.12 0.10 0.08 0.06 0.03 0.02 TKFT 12R/L A/B60005 0.10 0.66 7 0.18 0.15 0.12 0.10 0.06 0.03 0.02 1.25mm 12R/L N6001 0.05 0.90 9 0.20 0.18 0.13 0.10 0.10 0.07 0.05 0.05 0.02 0.10 0.85 8 0.20 0.18 0.13 0.10 0.10 0.07 0.05 0.02 1.50mm TKFT 12R/L N6001 0.10 1.04 10 0.20 0.18 0.14 0.12 0.10 0.10 0.08 0.05 0.05 0.02 Parallel External 28 TPI TKFT 12R/L A/B55005 0.05 0.67 7 0.18 0.15 0.12 0.10 0.06 0.04 0.02 Pipe Thread 19 TPI 0.05 1.01 9 0.20 0.18 0.14 0.12 0.12 0.10 0.08 0.05 0.02 24 TPI 0.05 0.79 8 0.18 0.18 0.12 0.10 0.08 0.07 0.04 0.02 Whitworth External 20 TPI TKFT 12R/L A/B55005 0.05 0.96 9 0.20 0.20 0.15 0.10 0.10 0.08 0.06 0.05 0.02 Thread 18 TPI 0.05 1.07 10 0.20 0.18 0.15 0.12 0.10 0.10 0.08 0.07 0.05 0.02 16 TPI 0.05 1.21 11 0.20 0.18 0.15 0.15 0.12 0.10 0.10 0.08 0.07 0.04 0.02 Swiss Tool Automatic Lathe (Guide Bush System) Goose-neck holder is applicable to automatic lathes whose toolholder does not move to longitudinal direction (Z-axis direction). Conventional Tool Goose-neck Holder Chips may come into the guide bush and scratch the thread surface. Up to 15mm (1216 type) Goose-neck holder is capable of threading without returning the thread part into the guide bush (thread length up to 15 mm or 19 mm). J23 Threading
