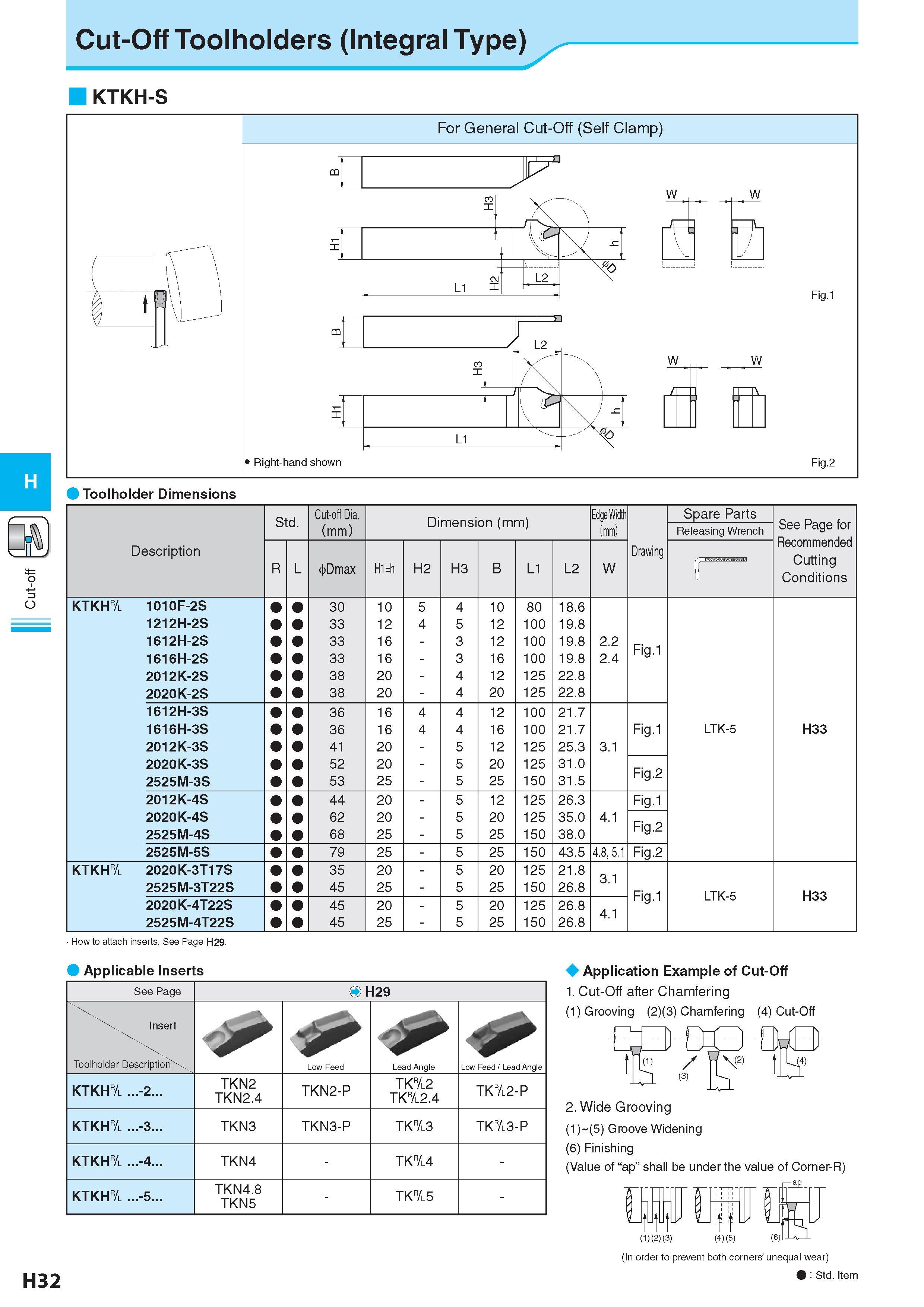

H ff -o ut C H32 Cut-Off Toolholders (Integral Type) KTKH-S Toolholder Dimensions Std. Cut-off Dia. Dimension (mm) Размеры в мм Edge Width Spare Parts See Page for Recommended Cutting Conditions Рекомендованные режимы резания на станках (mm) (mm) Releasing Wrench Description Обозначение R L Dmax H1=h H2 H3 B L1 L2 W Drawing i KTKH& 1010F-2S 1212H-2S 30 33 10 12 5 4 4 5 10 12 80 100 18.6 19.8 1612H-2S 33 16 - 3 12 100 19.8 2.2 Fig.1 1616H-2S 33 16 - 3 16 100 19.8 2.4 2012K-2S 38 20 - 4 12 125 22.8 2020K-2S 38 20 - 4 20 125 22.8 1612H-3S 36 16 4 4 12 100 21.7 1616H-3S 36 16 4 4 16 100 21.7 Fig.1 LTK-5 H33 2012K-3S 41 20 - 5 12 125 25.3 3.1 2020K-3S 52 20 - 5 20 125 31.0 Fig.2 2525M-3S 53 25 - 5 25 150 31.5 2012K-4S 44 20 - 5 12 125 26.3 Fig.1 2020K-4S 62 20 - 5 20 125 35.0 4.1 Fig.2 2525M-4S 68 25 - 5 25 150 38.0 2525M-5S 79 25 - 5 25 150 43.5 4.8, 5.1 Fig.2 KTKH& 2020K-3T17S 35 20 - 5 20 125 21.8 3.1 2525M-3T22S 45 25 - 5 25 150 26.8 Fig.1 LTK-5 H33 2020K-4T22S 45 20 - 5 20 125 26.8 4.1 2525M-4T22S 45 25 - 5 25 150 26.8 How to attach inserts, See Page H29. Applicable Inserts See Page H29 Insert Toolholder Description\ & Low Feed Lead Angle Low Feed / Lead Angle KTKH& ...-2... TKN2 TKN2.4 TKN2-P TK&2 TK&2.4 TK&2-P KTKH& ...-3... TKN3 TKN3-P TK&3 TK&3-P KTKH& ...-4... TKN4 - TK&4 - KTKH& ...-5... TKN4.8 TKN5 - TK&5 - Application Example of Cut-Off 1. Cut-Off after Chamfering (1) Grooving (2)(3) Chamfering (4) Cut-Off IB / rf\2) (3) 2. Wide Grooving (1) (5) Groove Widening (6) Finishing (Value of “ap” shall be under the value of Corner-R) £ f f (1)(2)(3) (4)(5) (6)1. (In order to prevent both corners’ unequal wear) : Std. Item
