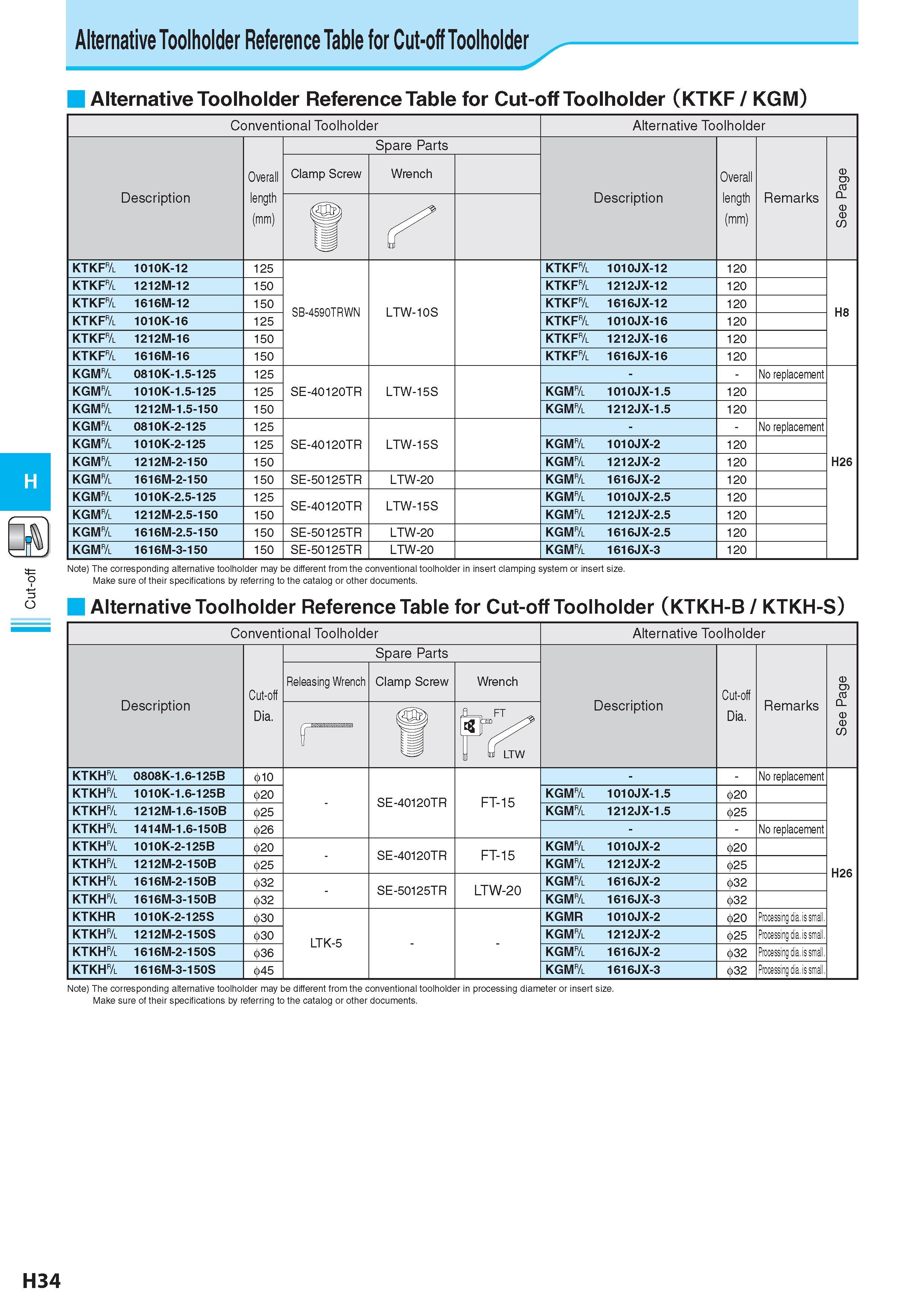

Cut-off Alternative Toolholder Reference Table for Cut-off Toolholder Alternative Toolholder Reference Table for Cut-off Toolholder (KTKF / KGM) Conventional Toolholder Alternative Toolholder Description Обозначение Overall length (mm) Spare Parts Description Обозначение Overall length (mm) Remarks Примечания See Page Clamp Screw Wrench fif KTKF& 1010K-12 125 SB-4590TRWN LTW-10S KTKF& 1010JX-12 120 H8 KTKF& 1212M-12 150 KTKF& 1212JX-12 120 KTKF& 1616M-12 150 KTKF& 1616JX-12 120 KTKF& 1010K-16 125 KTKF& 1010JX-16 120 KTKF& 1212M-16 150 KTKF& 1212JX-16 120 KTKF& 1616M-16 150 KTKF& 1616JX-16 120 KGM& 0810K-1.5-125 125 SE-40120TR LTW-15S No replacement H26 KGM& 1010K-1.5-125 125 KGM& 1010JX-1.5 120 KGM& 1212M-1.5-150 150 KGM& 1212JX-1.5 120 KGM& 0810K-2-125 125 SE-40120TR LTW-15S No replacement KGM& 1010K-2-125 125 KGM& 1010JX-2 120 KGM& 1212M-2-150 150 KGM& 1212JX-2 120 KGM& 1616M-2-150 150 SE-50125TR LTW-20 KGM& 1616JX-2 120 KGM& 1010K-2.5-125 125 SE-40120TR LTW-15S KGM& 1010JX-2.5 120 KGM& 1212M-2.5-150 150 KGM& 1212JX-2.5 120 KGM& 1616M-2.5-150 150 SE-50125TR LTW-20 KGM& 1616JX-2.5 120 KGM& 1616M-3-150 150 SE-50125TR LTW-20 KGM& 1616JX-3 120 Note) The corresponding alternative toolholder may be different from the conventional toolholder in insert clamping system or insert size. Make sure of their specifications by referring to the catalog or other documents. Alternative Toolholder Reference Table for Cut-off Toolholder (KTKH-B / KTKH-S) Conventional Toolholder Alternative Toolholder Description Обозначение Cut-off Dia. Spare Parts Description Обозначение Cut-off Dia. Remarks Примечания See Page Releasing Wrench Clamp Screw Wrench f HI L FT y U LTW KTKH& 0808K-1.6-125B 10 - SE-40120TR FT-15 No replacement H26 KTKH& 1010K-1.6-125B 4>20 KGM& 1010JX-1.5 4>20 KTKH& 1212M-1.6-150B 25 KGM& 1212JX-1.5 25 KTKH& 1414M-1.6-150B 26 No replacement KTKH& 1010K-2-125B 20 - SE-40120TR FT-15 KGM& 1010JX-2 20 KTKH& 1212M-2-150B 25 KGM& 1212JX-2 25 KTKH& 1616M-2-150B 32 - SE-50125TR LTW-20 KGM& 1616JX-2 32 KTKH& 1616M-3-150B 32 KGM& 1616JX-3 32 KTKHR 1010K-2-125S 4>30 LTK-5 KGMR 1010JX-2 20 Processing dia. is small. KTKH& 1212M-2-150S 30 KGM& 1212JX-2 25 Processing dia. is small. KTKH& 1616M-2-150S 36 KGM& 1616JX-2 32 Processing dia, is small. KTKH& 1616M-3-150S 45 KGM& 1616JX-3 32 Processing dia, is small, Note) The corresponding alternative toolholder may be different from the conventional toolholder in processing diameter or insert size. Make sure of their specifications by referring to the catalog or other documents. H34
