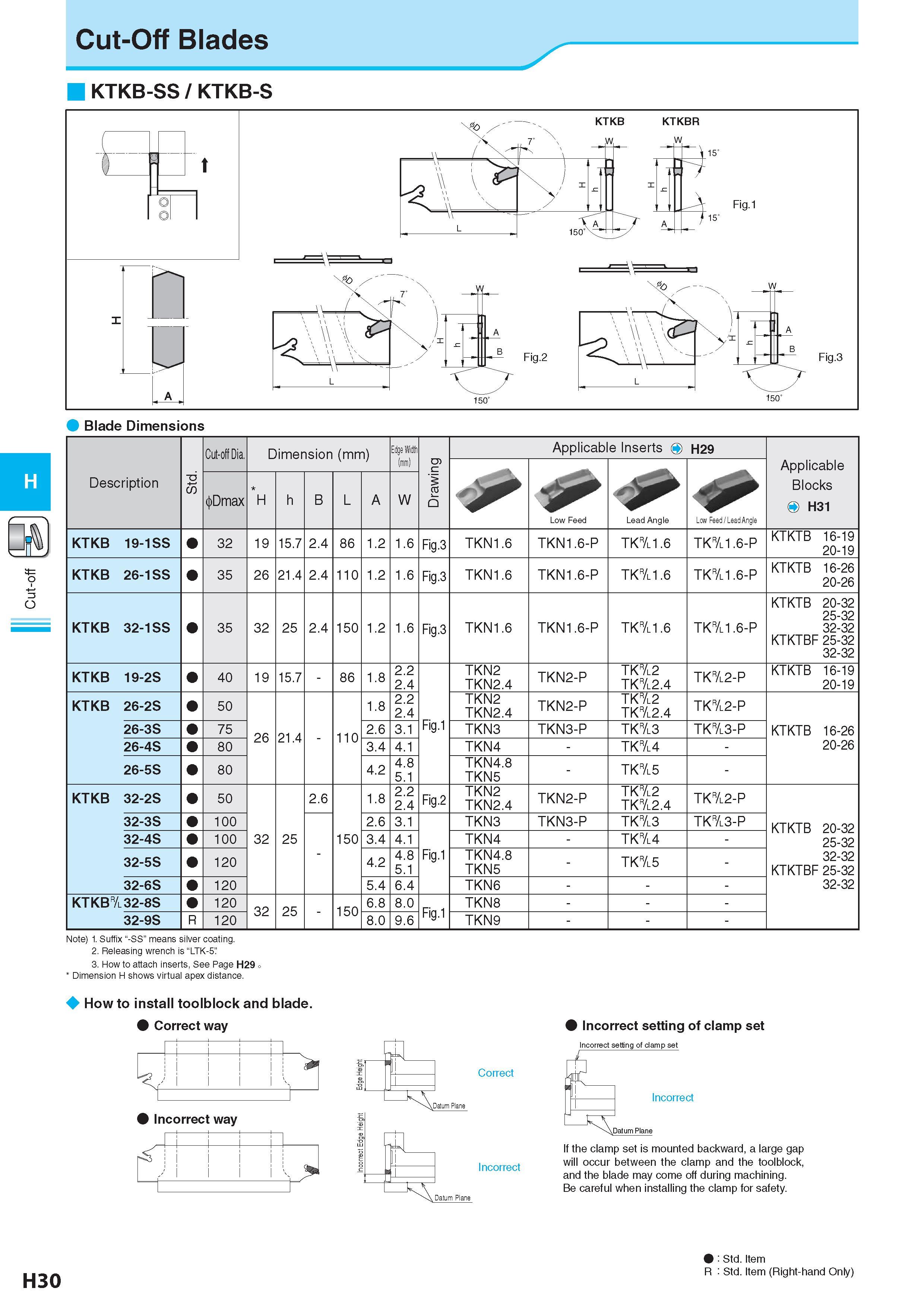

Cut-off Cut-Off Blades KTKB-SS / KTKB-S Blade Dimensions H Description Обозначение T3 w Cut-off Dia. Dimension (mm) Размеры в мм Edge Width (mm) Drawing Applicable Inserts H29 Applicable Blocks < > H31 & Low Feed Lead Angle Low Feed / Lead Angle 4>Dmax H h B L A W KTKB 19-1SS 32 19 15.7 2.4 86 1.2 1.6 Fig.3 TKN1.6 TKN1.6-P TK&1.6 TK&1.6-P KTKTB 16-19 20-19 KTKB 26-1SS 35 26 21.4 2.4 110 1.2 1.6 Fig.3 TKN1.6 TKN1.6-P TK&1.6 TK&1.6-P KTKTB 16-26 20-26 KTKB 32-1SS 35 32 25 2.4 150 1.2 1.6 Fig.3 TKN1.6 TKN1.6-P TK&1.6 TK&1.6-P KTKTB 20-32 25-32 32-32 KTKTBF 25-32 32-32 KTKB 19-2S 40 19 15.7 - 86 1.8 2.2 2.4 Fig.1 TKN2 TKN2.4 TKN2-P TK&2 TK&2.4 TK&2-P KTKTB 16-19 20-19 KTKB 26-2S 50 26 21.4 - 110 1.8 2.2 2.4 TKN2 TKN2.4 TKN2-P TK&2 TK&2.4 TK&2-P KTKTB 16-26 20-26 26-3S 75 2.6 3.1 TKN3 TKN3-P TK&3 TK&3-P 26-4S 80 3.4 4.1 TKN4 - TK&4 - 26-5S 80 4.2 4.8 5.1 TKN4.8 TKN5 - TK&5 - KTKB 32-2S 50 32 25 2.6 150 1.8 2.2 2.4 Fig.2 TKN2 TKN2.4 TKN2-P TK&2 TK&2.4 TK&2-P KTKTB 20-32 25-32 32-32 KTKTBF 25-32 32-32 32-3S 100 - 2.6 3.1 Fig.1 TKN3 TKN3-P TK&3 TK&3-P 32-4S 100 3.4 4.1 TKN4 - TK&4 - 32-5S 120 4.2 4.8 5.1 TKN4.8 TKN5 - TK&5 - 32-6S 120 5.4 6.4 TKN6 - KTKB&32-8S 120 32 25 - 150 6.8 8.0 Fig.1 TKN8 - 32-9S R 120 8.0 9.6 TKN9 - Note) 1. Suffix “-SS” means silver coating. 2. Releasing wrench is “LTK-5. 3. How to attach inserts, See Page H29 c Dimension H shows virtual apex distance. How to install toolblock and blade. Correct way Incorrect way Correct Incorrect Incorrect setting of clamp set Incorrect setting of clamp set Incorrect If the clamp set is mounted backward, a large gap will occur between the clamp and the toolblock, and the blade may come off during machining. Be careful when installing the clamp for safety. H30 : Std. Item Стандартная позиция R : Std. Item Стандартная позиция (Right-hand Only)
