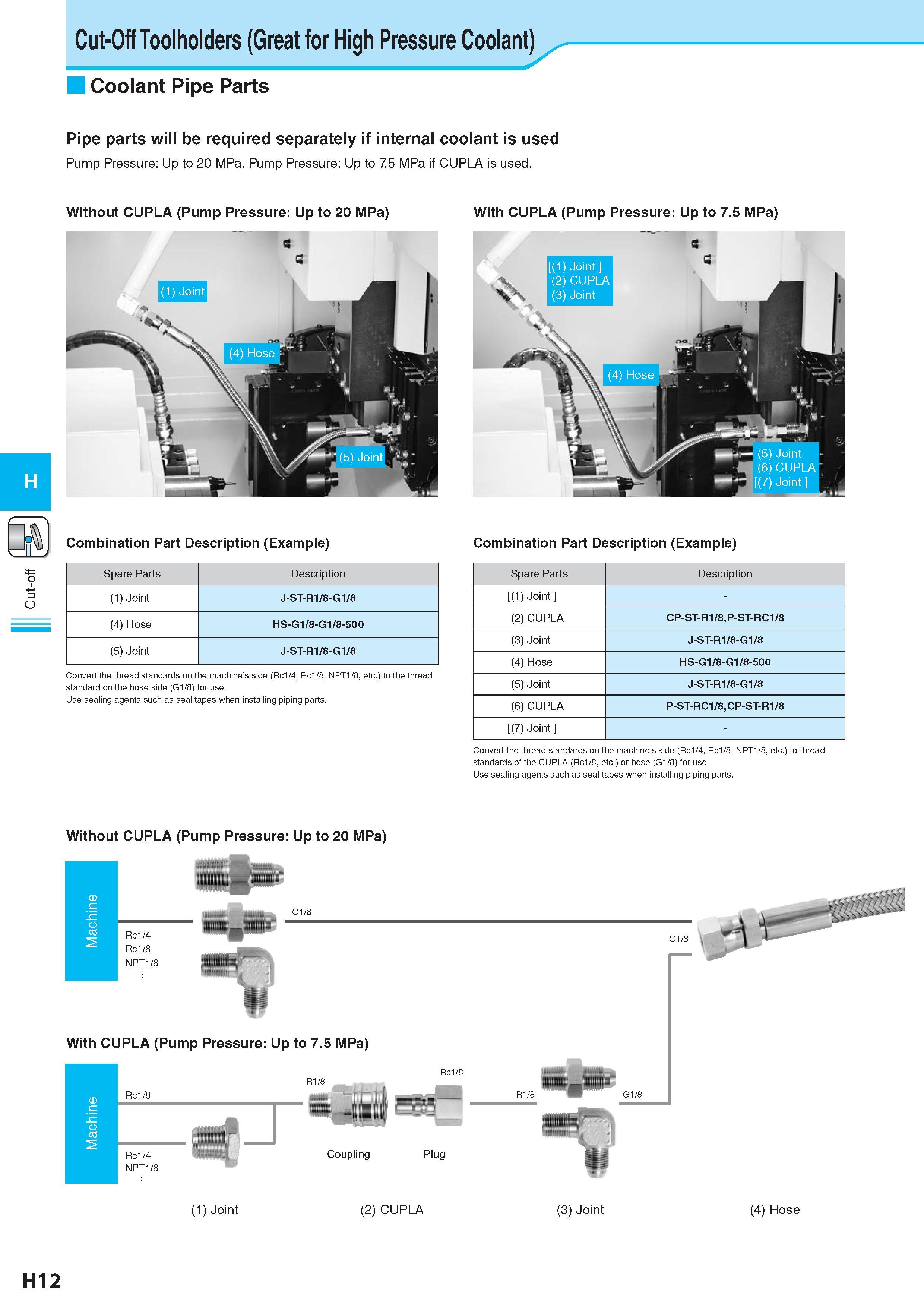

Cut-off Cut-Off Toolholders (Great for High Pressure Coolant) Coolant Pipe Parts Pipe parts will be required separately if internal coolant is used Pump Pressure: Up to 20 MPa. Pump Pressure: Up to 7.5 MPa if CUPLA is used. Without CUPLA (Pump Pressure: Up to 20 MPa) With CUPLA (Pump Pressure: Up to 7.5 MPa) Combination Part Description Обозначение (Example) Spare Parts Description Обозначение (1) Joint J-ST-R1/8-G1/8 (4) Hose HS-G1/8-G1/8-500 (5) Joint J-ST-R1/8-G1/8 Convert the thread standards on the machine’s side (Rc1/4, Rc1/8, NPT1/8, etc.) to the thread standard on the hose side (G1/8) for use. Use sealing agents such as seal tapes when installing piping parts. s a Combination Part Description Обозначение (Example) Spare Parts Description Обозначение (1) Joint - (2) CUPLA CP-ST-R1/8,P-ST-RC1/8 (3) Joint J-ST-R1/8-G1/8 (4) Hose HS-G1/8-G1/8-500 (5) Joint J-ST-R1/8-G1/8 (6) CUPLA P-ST-RC1/8,CP-ST-R1/8 (7) Joint - Convert the thread standards on the machine’s side (Rc1/4, Rc1/8, NPT1/8, etc.) to thread standards of the CUPLA (Rc1/8, etc.) or hose (G1/8) for use. Use sealing agents such as seal tapes when installing piping parts. Without CUPLA (Pump Pressure: Up to 20 MPa) With CUPLA (Pump Pressure: Up to 7.5 MPa) II li.l Coupling Plug Rc1/8 R1/8 G1/8 (1) Joint (2) CUPLA (3) Joint (4) Hose H12
