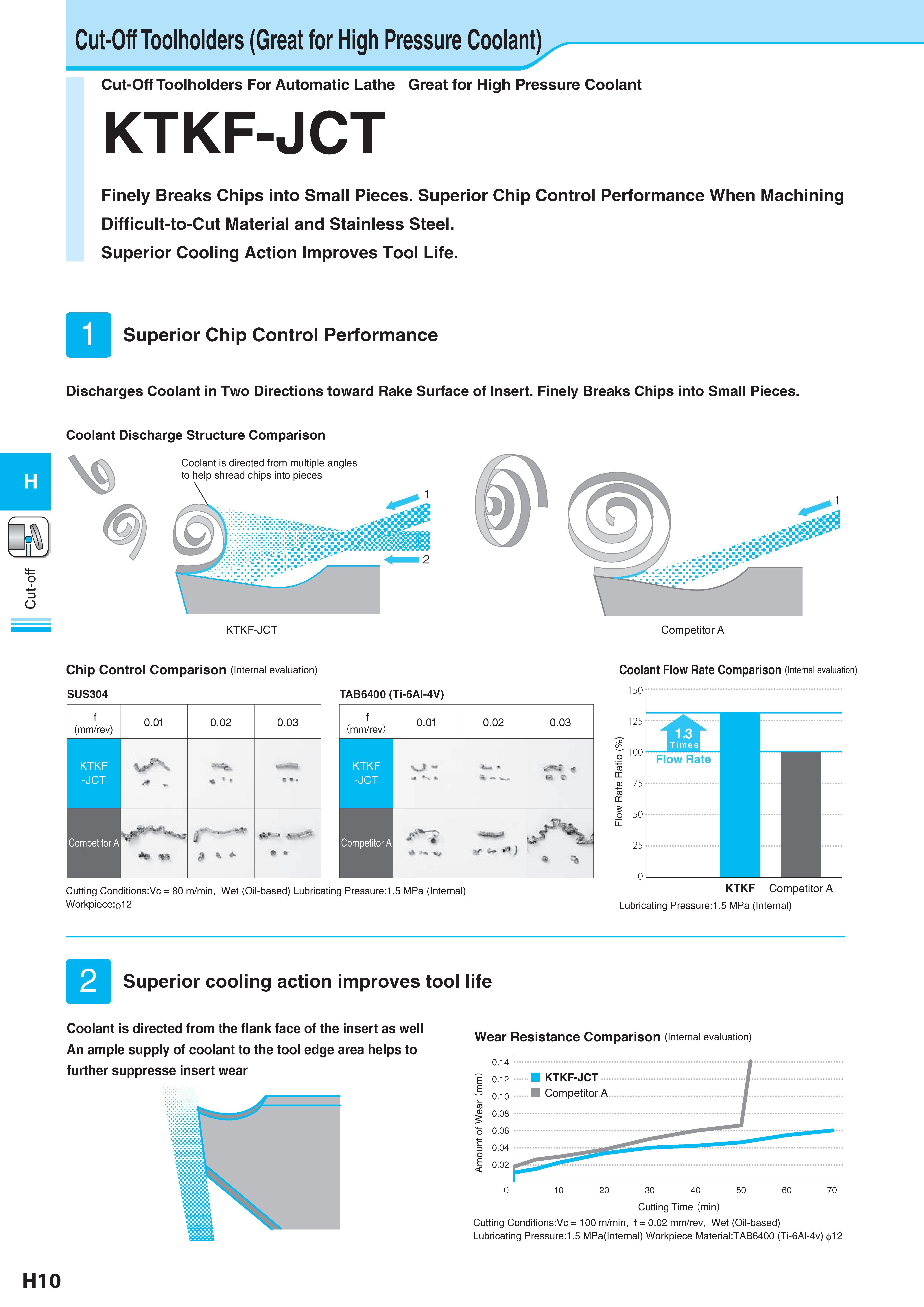

Cut-off Cut-Off Toolholders (Great for High Pressure Coolant) Cut-Off Toolholders For Automatic Lathe Great for High Pressure Coolant KTKF-JCT Finely Breaks Chips into Small Pieces. Superior Chip Control Performance When Machining Difficult-to-Cut Material and Stainless Steel. Superior Cooling Action Improves Tool Life. Superior Chip Control Performance Discharges Coolant in Two Directions toward Rake Surface of Insert. Finely Breaks Chips into Small Pieces. Coolant Discharge Structure Comparison Coolant is directed from multiple angles to help shread chips into pieces KTKF-JCT Chip Control Comparison (Internal evaluation) SUS304 TAB6400 (Ti-6Al-4V) Coolant Flow Rate Comparison (Internal evaluation) f (mm/rev) 0.01 0.02 0.03 KTKF -JCT 4 - Competitor A y r : ' > - a 0 % f (mm/rev) 0.01 0.02 0.03 KTKF v - -JCT B C Competitor A 4 llHfr. > it 4 ) -v -s' Cutting Conditions:Vc = 80 m/min, Wet (Oil-based) Lubricating Pressure:1.5 MPa (Internal) Workpiece: 12 KTKF Competitor A Lubricating Pressure:1.5 MPa (Internal) 2 Superior cooling action improves tool life Coolant is directed from the flank face of the insert as well An ample supply of coolant to the tool edge area helps to further suppresse insert wear Wear Resistance Comparison (Internal evaluation) Cutting Time (min) Cutting Conditions:Vc = 100 m/min, f = 0.02 mm/rev, Wet (Oil-based) Lubricating Pressure:1.5 MPa(Internal) Workpiece Material:TAB6400 (Ti-6Al-4v) 12 H10
