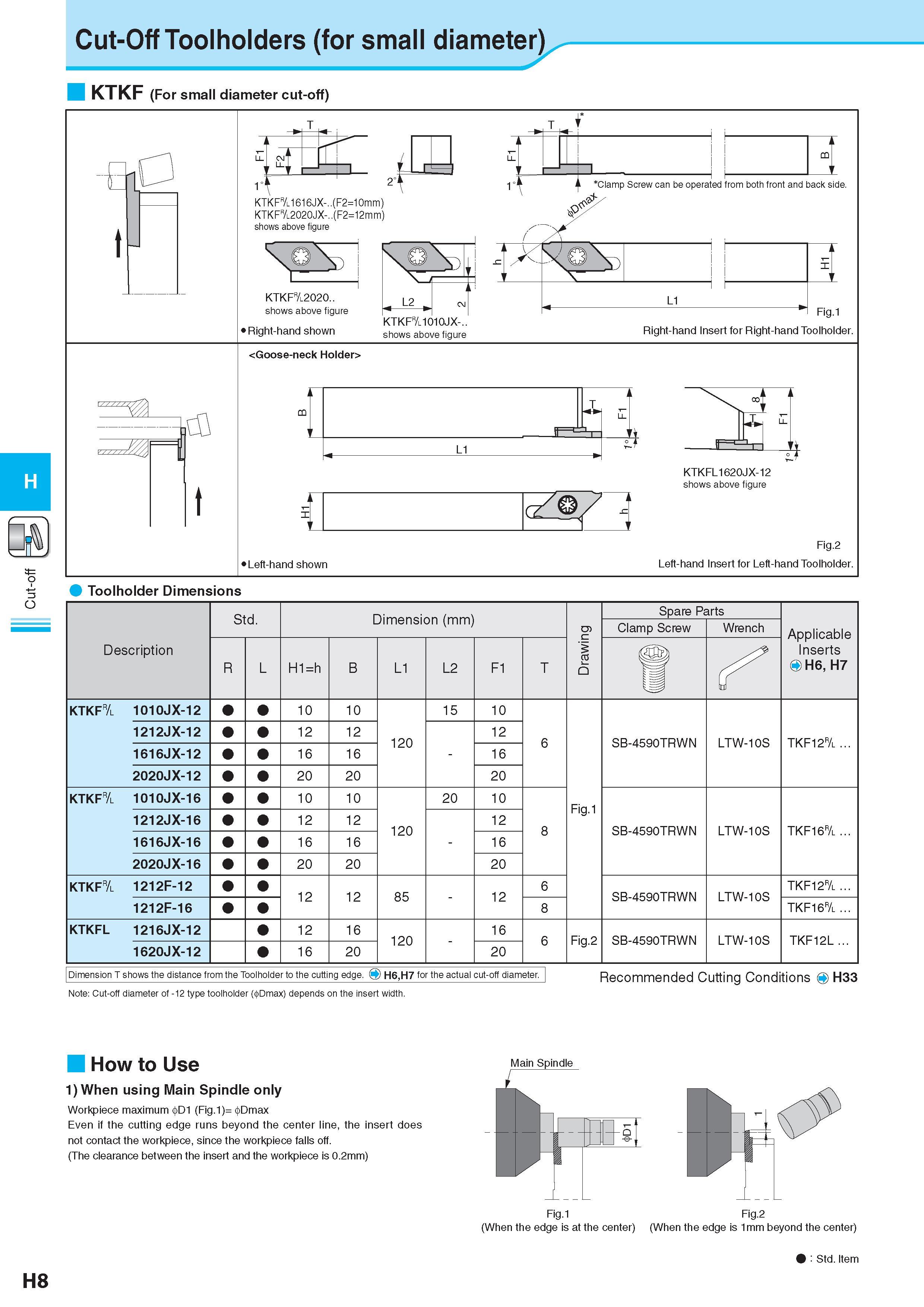

Cut-off Cut-Off Toolholders (for small diameter) KTKF (For small diameter cut-off) H KTKF&1616JX-..(F2=10mm) KTKF&2020JX-..(F2=12mm) shows above figure KTKF&2020.. shows above figure > Показано правое исполнение инструмента \ J T L2 KTKF&1010JX-. shows above figure it V H L- T i m L1 T. a KTKFL1620JX-12 shows above figure Left-hand shown Fig.2 Left-hand Insert for Left-hand Toolholder. Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Drawing Spare Parts Applicable Inserts O H6, H7 Clamp Screw Wrench R L H1=h B L1 L2 F1 T Uf r"’ KTKF& 1010JX-12 10 10 120 15 10 6 Fig.1 SB-4590TRWN LTW-10S TKF12& ... 1212JX-12 12 12 - 12 1616JX-12 16 16 16 2020JX-12 20 20 20 KTKF& 1010JX-16 10 10 120 20 10 8 SB-4590TRWN LTW-10S TKF16& ... 1212JX-16 12 12 - 12 1616JX-16 16 16 16 2020JX-16 20 20 20 KTKF& 1212F-12 12 12 85 - 12 6 SB-4590TRWN LTW-10S TKF12& ... 1212F-16 8 TKF16& ... KTKFL 1216JX-12 12 16 120 - 16 6 Fig.2 SB-4590TRWN LTW-10S TKF12L ... 1620JX-12 16 20 20 Dimension T shows the distance from the Toolholder to the cutting edge. H6,H7 for the actual cut-off diameter. Recommended Cutting Conditions Рекомендованные режимы резания на станках H33 Note: Cut-off diameter of -12 type toolholder ( Dmax) depends on the insert width. How to Use 1) When using Main Spindle only Workpiece maximum D1 (Fig.1)= Dmax Even if the cutting edge runs beyond the center line, the insert does not contact the workpiece, since the workpiece falls off. (The clearance between the insert and the workpiece is 0.2mm) Main Spindle w Fig.1 Fig.2 (When the edge is at the center) (When the edge is 1mm beyond the center) 9 : Std. Item Стандартная позиция H8
