486 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.H15

Каталог KYOCERA 2017 Инструмент режущий Стр. H15 0486 Lab2u

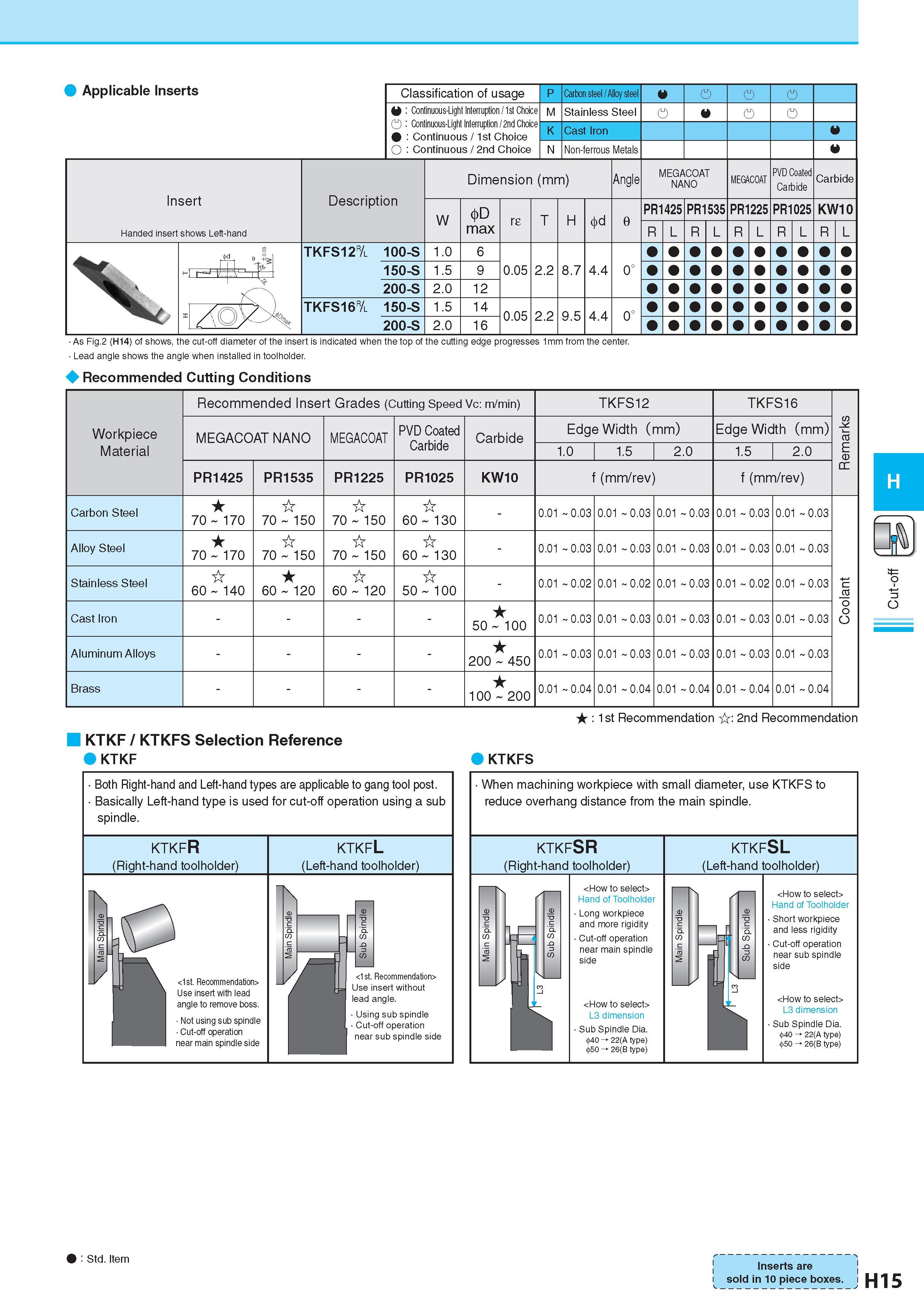

Applicable Inserts Classification of usage O : Conlinuous-Lighl Inlerruplion / 1st Choice O : Continuous-Light Inlerruplion / 2nd Choice : Continuous / 1st Choice O: Continuous / 2nd Choice Carbon steel / Alloy steel Stainless Steel Cast Iron Non-ferrous Metals o 0 O Insert Description Обозначение Dimension (mm) Размеры в мм Angle W D max re MEGACOAT NANO MEGACOAT PVD Coated Carbide Carbide PR1425 R L PR1535 PR1225 PR1025 KW10 R L R L R L R L TKFS12& 100-S 1.0 150-S 1.5 0.05 2.2 3.7 4.4 200-S 2.0 12 TKFS16& 150-S 1.5 14 200-S 2.0 0.05 2.2 9.5 4.4 As Fig.2 (H14) of shows, the cut-off diameter of the insert is indicated when the top of the cutting edge progresses 1mm from the center. Lead angle shows the angle when installed in toolholder. Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) TKFS12 TKFS16 Remarks Примечания MEGACOAT NANO MEGACOAT PVD Coated Carbide Carbide Edge Width (mm) Edge Width (mm) 1.0 1.5 2.0 1.5 2.0 PR1425 PR1535 PR1225 PR1025 KW10 f (mm/rev) Carbon Steel 70 170 70 150 70 150 60 130 - 0.01 0.03 0.01 0.03 0.01 0.03 0.01 0.03 0.01 0.03 Coolant Alloy Steel 70 170 70 150 70 150 60 130 - 0.01 0.03 0.01 0.03 0.01 0.03 0.01 0.03 0.01 0.03 Stainless Steel 60 140 60 120 60 120 50 100 - 0.01 0.02 0.01 0.02 0.01 0.03 0.01 0.02 0.01 0.03 Cast Iron 50 100 0.01 0.03 0.01 0.03 0.01 0.03 0.01 0.03 0.01 0.03 Aluminum Alloys 200 450 0.01 0.03 0.01 0.03 0.01 0.03 0.01 0.03 0.01 0.03 Brass 100 200 0.01 0.04 0.01 0.04 0.01 0.04 0.01 0.04 0.01 0.04 : 1st Recommendation : 2nd Recommendation KTKF / KTKFS Selection Reference KTKF KTKFS Both Right-hand and Left-hand types are applicable to gang tool post. Basically Left-hand type is used for cut-off operation using a sub spindle. KTKFR (Right-hand toolholder) <1st. Recommendation> Use insert with lead angle to remove boss. Not using sub spindle Cut-off operation near main spindle side KTKFL (Left-hand toolholder) <1st. Recommendation> Use insert without lead angle. Using sub spindle Cut-off operation near sub spindle side When machining workpiece with small diameter, use KTKFS to reduce overhang distance from the main spindle. KTKFSR (Right-hand toolholder) Hand of Toolholder Long workpiece and more rigidity Cut-off operation near main spindle side L3 dimension Sub Spindle Dia. Hand of Toolholder Short workpiece and less rigidity Cut-off operation near sub spindle side L3 dimension Sub Spindle Dia.
