485 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.H14

Каталог KYOCERA 2017 Инструмент режущий Стр. H14 0485 Lab2u

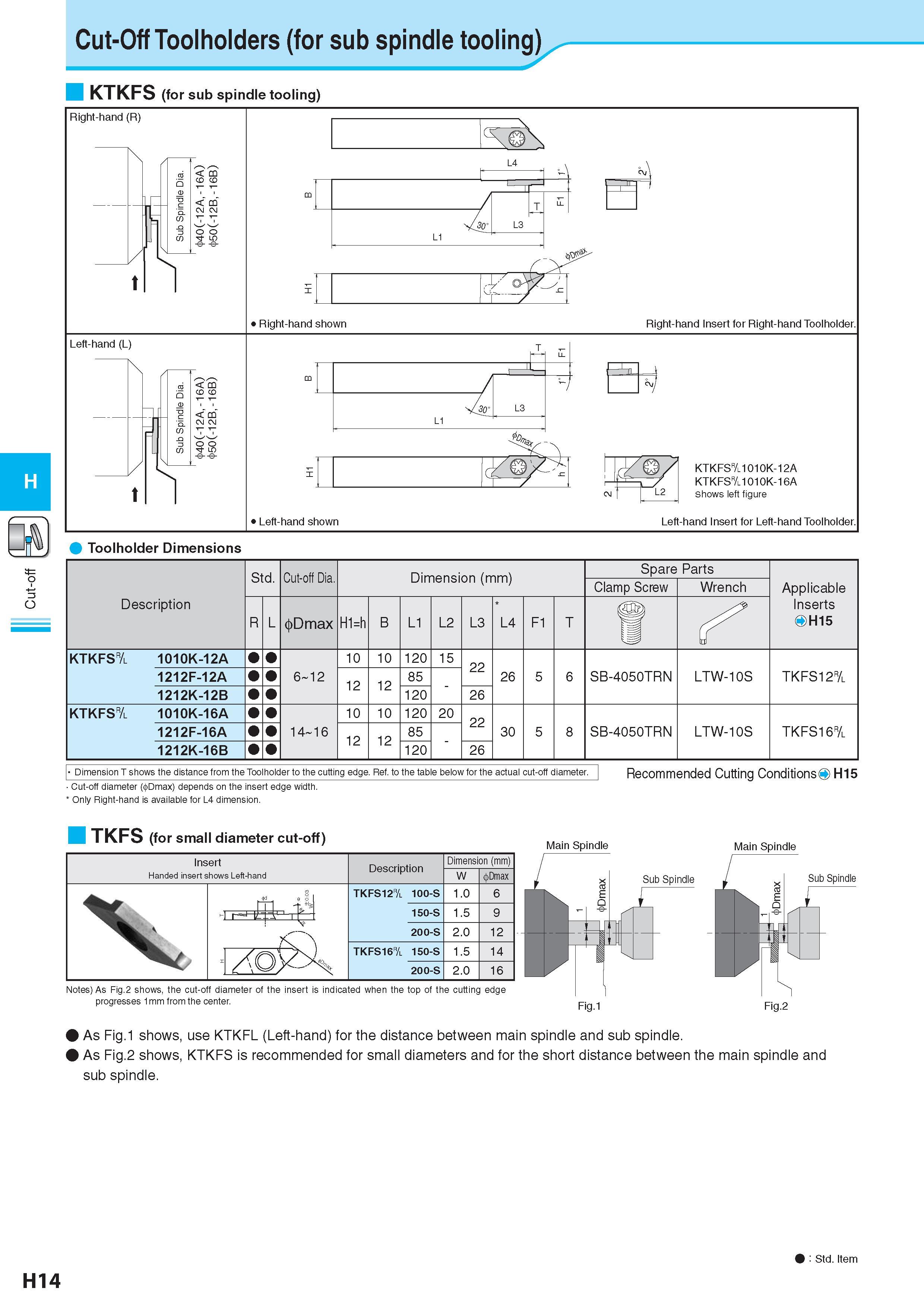

Cut-off Cut-Off Toolholders (for sub spindle tooling) Cut-off diameter (0Dmax) depends on the insert edge width. Only Right-hand is available for L4 dimension. TKFS (for small diameter cut-off) Insert Handed insert shows Left-hand Description Обозначение TKFS12& 100-S 150-S 200-S TKFS16& 150-S 200-S Dimension (mm) Размеры в мм W 1.0 1.5 2.0 1.5 2.0 0Dmax 12 14 16 Main Spindle Notes) As Fig.2 shows, the cut-off diameter of the insert is indicated when the top of the cutting edge progresses 1mm from the center. Main Spindle Sub Spindle Sub Spindle Fig.1 Fig.2 As Fig.1 shows, use KTKFL (Left-hand) for the distance between main spindle and sub spindle. As Fig.2 shows, KTKFS is recommended for small diameters and for the short distance between the main spindle and sub spindle. 6 9 H14 9 : Std. Item
