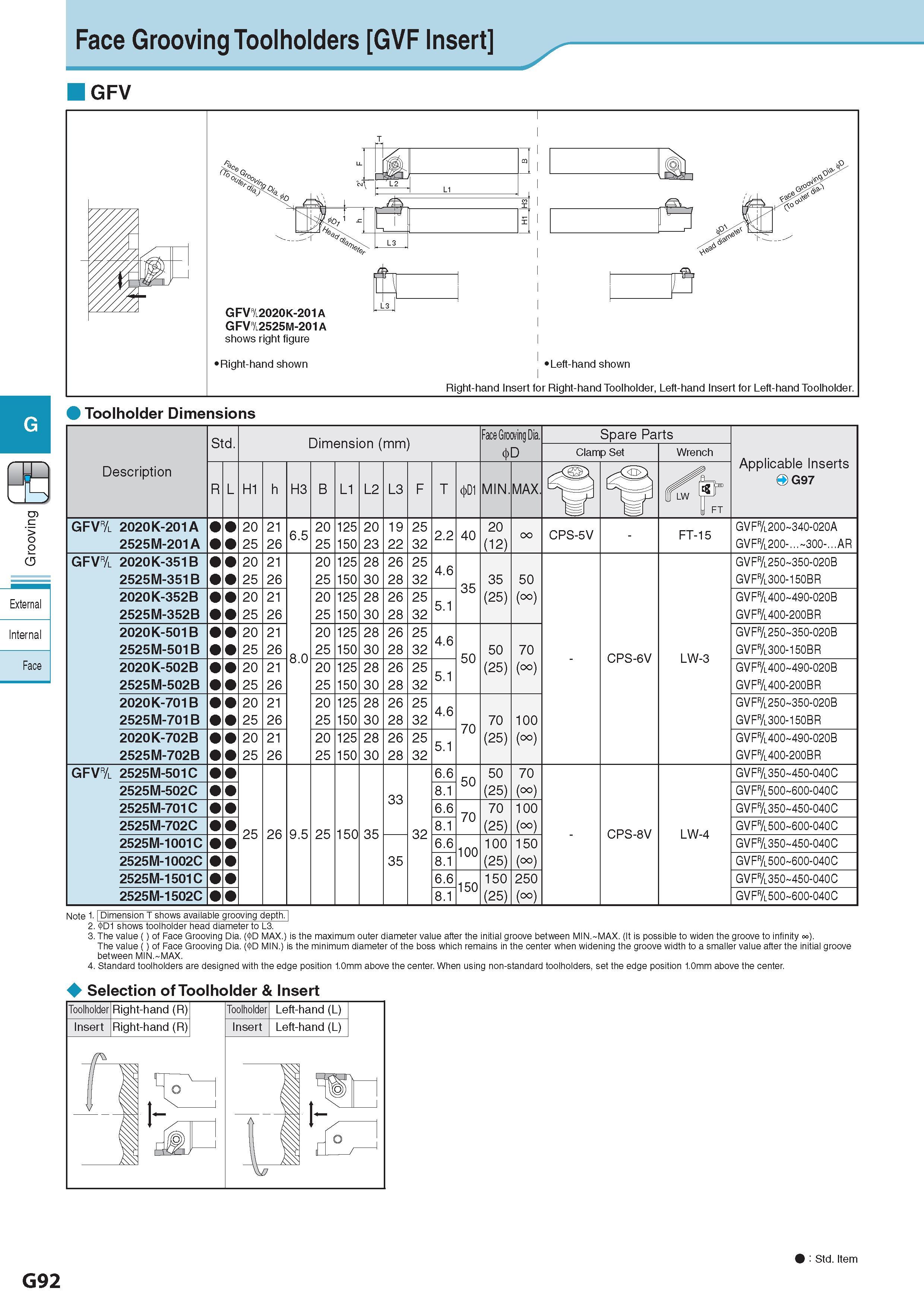

Face Grooving Toolholders GVF Insert GFV Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Face Grooving Dia. D Spare Parts Applicable Inserts O G97 Clamp Set Wrench R L H1 h H3 B L1 L2 L3 F T D1 MIN. MAX n 4r GFV& 2020K-201A 2525M-201A 20 25 21 26 6.5 20 25 125 150 20 23 19 22 25 32 2.2 40 20 (12) TO CPS-5V - FT-15 GVF&200 340-020A GVFr/l200-... 300-...AR GFV& 2020K-351B 2525M-351B 20 25 21 26 8.0 20 25 125 150 28 30 26 28 25 32 4.6 35 35 (25) 50 (to) - CPS-6V LW-3 GVF&250 350-020B GVF&300-150BR 2020K-352B 2525M-352B 20 25 21 26 20 25 125 150 28 30 26 28 25 32 5.1 GVF&400-490-020B GVF&400-200BR 2020K-501B 2525M-501B 20 25 21 26 20 25 125 150 28 30 26 28 25 32 4.6 50 50 (25) 70 (TO) GVF&250-350-020B GVF&300-150BR 2020K-502B 2525M-502B 20 25 21 26 20 25 125 150 28 30 26 28 25 32 5.1 GVF&400-490-020B GVF&400-200BR 2020K-701B 2525M-701B 20 25 21 26 20 25 125 150 28 30 26 28 25 32 4.6 70 70 (25) 100 (TO) GVF&250 350-020B GVF&300-150BR 2020K-702B 2525M-702B 20 25 21 26 20 25 125 150 28 30 26 28 25 32 5.1 GVF&400 490-020B GVF&400-200BR GFV& 2525M-501C 25 26 9.5 25 150 35 33 32 6.6 50 50 (25) 70 (TO) - CPS-8V LW-4 GVF&350 450-040C 2525M-502C 8.1 GVF&500 600-040C 2525M-701C 6.6 70 70 (25) 100 (TO) GVF&350 450-040C 2525M-702C 8.1 GVF&500 600-040C 2525M-1001C 35 6.6 100 100 (25) 150 (TO) GVF&350 450-040C 2525M-1002C 8.1 GVF&500 600-040C 2525M-1501C 6.6 150 150 (25) 250 (to) GVF&350 450-040C 2525M-1502C 8.1 GVF&500 600-040C External Internal Face G Ncte 1.1 Dimension T shews available grooving depth. 2. 4D1 shows toolholder head diameter to L3. 3. The value of Face Grooving Dia. (4D MAX.) is the maximum outer diameter value after the initial groove between MIN. MAX. (It is possible to widen the groove to infinity oo). The value of Face Grooving Dia. ( D MIN.) is the minimum diameter of the boss which remains in the center when widening the groove width to a smaller value after the initial groove between MIN. MAX. 4. Standard toolholders are designed with the edge position 1.0mm above the center. When using non-standard toolholders, set the edge position 1.0mm above the center. Selection of Toolholder & Insert G92 9 : Std. Item
