455 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.G94

Каталог KYOCERA 2017 Инструмент режущий Стр. G94 0455 Lab2u

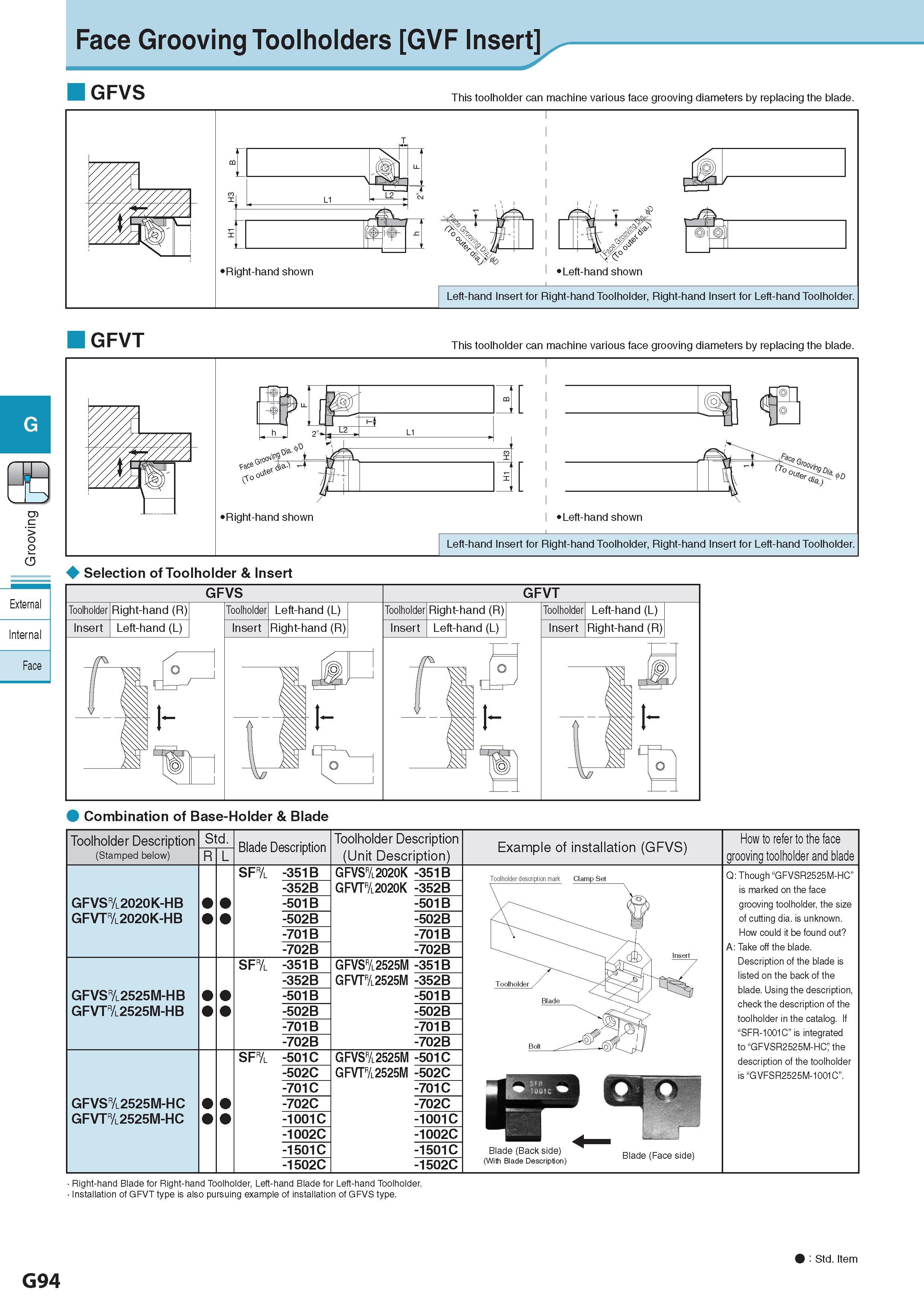

Face Grooving Toolholders GVF Insert GFVS This toolholder can machine various face grooving diameters by replacing the blade. GFVT This toolholder can machine various face grooving diameters by replacing the blade. pT L1 0° Показано правое исполнение инструмента Left-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. External Internal Face Selection of Toolholder & Insert Toolholder Description Обозначение (Stamped below) Std. R L Blade Description Обозначение Toolholder Description Обозначение (Unit Description) Example of installation (GFVS) How to refer to the face grooving toolholder and blade SF& -351B -352B GFVS&2020K -351B GFVT&2020K -352B Toolholder description mark Clamp Set GFVS&2020K-HB GFVT&2020K-HB -501B -501B -502B -502B -701B -701B -702B -702B SF& -351B -352B GFVS&2525M -351B GFVT&2525M -352B GFVS&2525M-HB GFVT&2525M-HB -501B -501B -502B -502B -701B -701B -702B -702B SF& -501C -502C GFVS&2525M -501C GFVT&2525M -502C -701C -701C GFVS&2525M-HC GFVT&2525M-HC -702C -702C -1001C -1001C -1002C -1002C -1501C -1501C Q: Though “GFVSR2525M-HC' is marked on the face grooving toolholder, the size of cutting dia. is unknown. How could it be found out A: Take off the blade. Description Обозначение of the blade is listed on the back of the blade. Using the description, check the description of the toolholder in the catalog. If “SFR-1001C" is integrated to “GFVSR2525M-HC’,’ the description of the toolholder is “GVFSR2525M-1001C”, -1502C -1502C Blade (Back side) (With Blade Description) Blade (Face side) Right-hand Blade for Right-hand Toolholder, Left-hand Blade for Left-hand Toolholder. Installation of GFVT type is also pursuing example of installation of GFVS type. G94 9 : Std. Item
