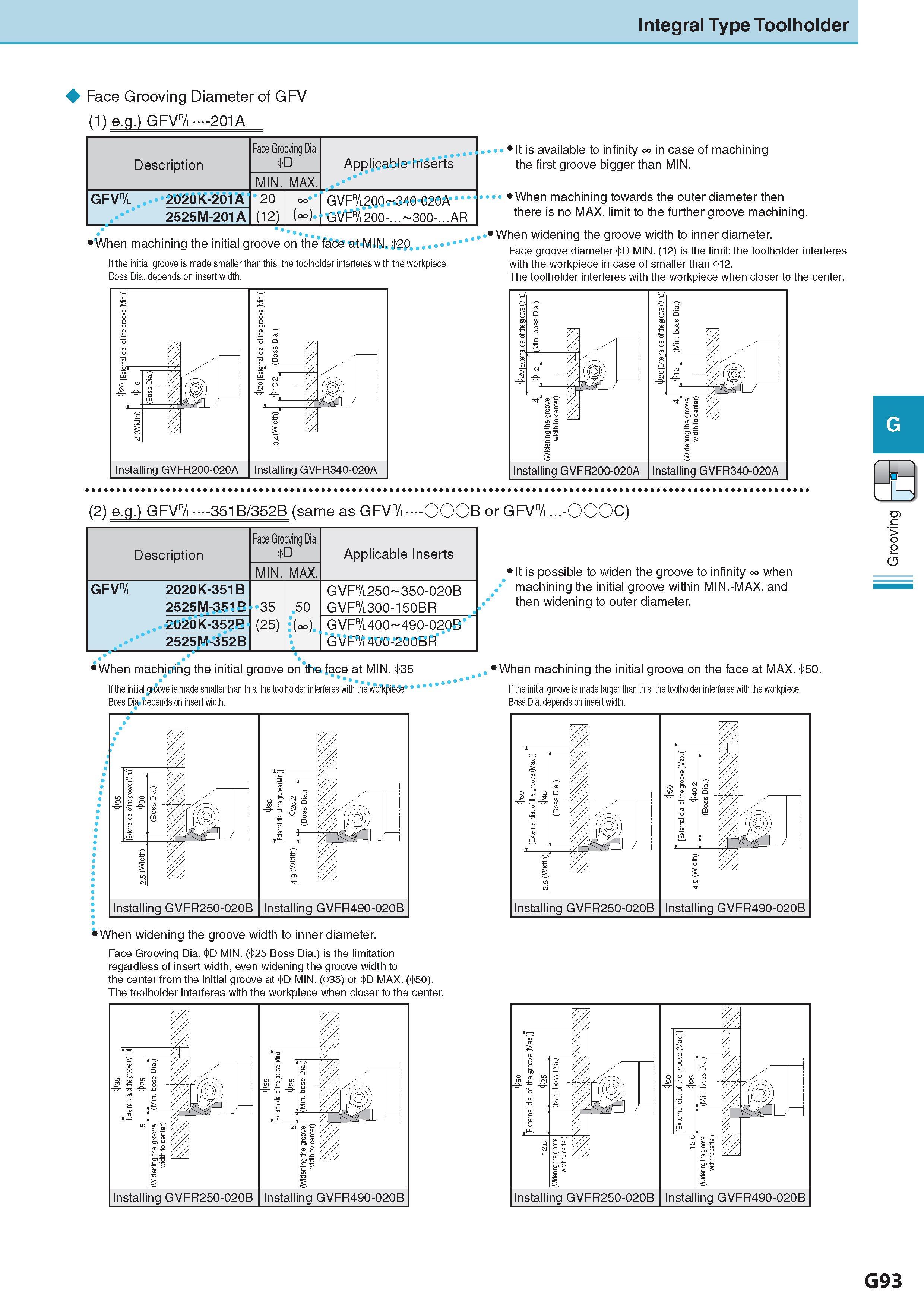

Integral Type Toolholder Face Grooving Diameter of GFV (1) e.g.) GFV& 201A Description Обозначение Face Grooving Dia. D Applicable Inserts MIN. MAX. GFV& .. 2020K-201A 2525M-201A 12 ) M GVF&200 340-020A GVFr/l200-... 300-...AR It is available to infinity m in case of machining the first groove bigger than MIN. When machining the initial groove on the face at MIN. ............................ If the initial groove is made smaller than this, the toolholder interferes with the workpiece. Boss Dia. depends on insert width. When machining towards the outer diameter then there is no MAX. limit to the further groove machining. When widening the groove width to inner diameter. Face groove diameter MIN. (12) is the limit; the toolholder interferes with the workpiece in case of smaller than 12. The toolholder interferes with the workpiece when closer to the center. Installing GVFR200-020A Installing GVFR340-020A rj (2) e.g.) GFV& -351B/352B (same as GFV& OOOB or GFV&...-OOOC) Description Обозначение Face Grooving Dia. D Applicable Inserts MIN. MAX. GFV& 2020K-351B 35 (25) 50 (m) GVF&250 350-020B GVF&300-150BR 2525M-351B 2020K-352B GVF&400 490-020B GVF&400-200BR 2525M-352B When machining the initial groove on the face at MIN. 35 If the initial groove is made smaller than this, the toolholder interferes with the workpiece. Boss Dia. depends on insert width. It is possible to widen the groove to infinity m when machining the initial groove within MIN.-MAX. and then widening to outer diameter. When machining the initial groove on the face at MAX. 50. If the initial groove is made larger than this, the toolholder interferes with the workpiece. Boss Dia. depends on insert width. When widening the groove width to inner diameter. Face Grooving Dia. D MIN. ( 25 Boss Dia.) is the limitation regardless of insert width, even widening the groove width to the center from the initial groove at D MIN. ( 35) or D MAX. (460). The toolholder interferes with the workpiece when closer to the center. G93 Grooving
