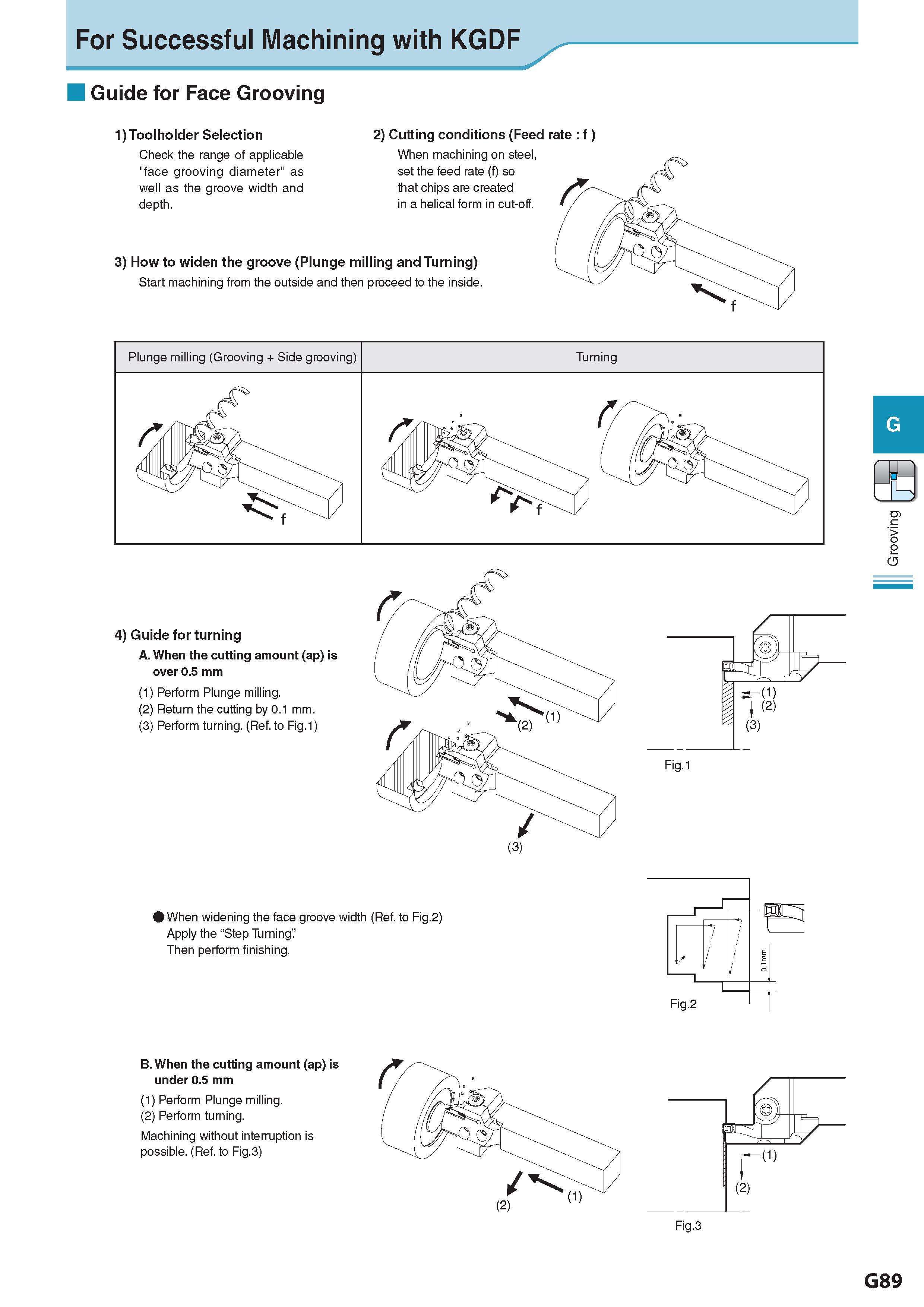

For SuccessfulMachining with KGDF Guide for Face Grooving 1) Toolholder Selection Check the range of applicable "face grooving diameter" as well as the groove width and depth. 2) Cutting conditions (Feed rate : f ) When machining on steel, set the feed rate (f) so that chips are created in a helical form in cut-off. 3) How to widen the groove (Plunge milling and Turning) Start machining from the outside and then proceed to the inside. rj 4) Guide for turning A. When the cutting amount (ap) is over 0.5 mm (1) Perform Plunge milling. (2) Return the cutting by 0.1 mm. (3) Perform turning. (Ref. to Fig.1) When widening the face groove width (Ref. to Fig.2) Apply the “Step Turning’.’ Then perform finishing. B. When the cutting amount (ap) is under 0.5 mm (1) Perform Plunge milling. (2) Perform turning. Machining without interruption is possible. (Ref. to Fig.3) G89 Grooving
