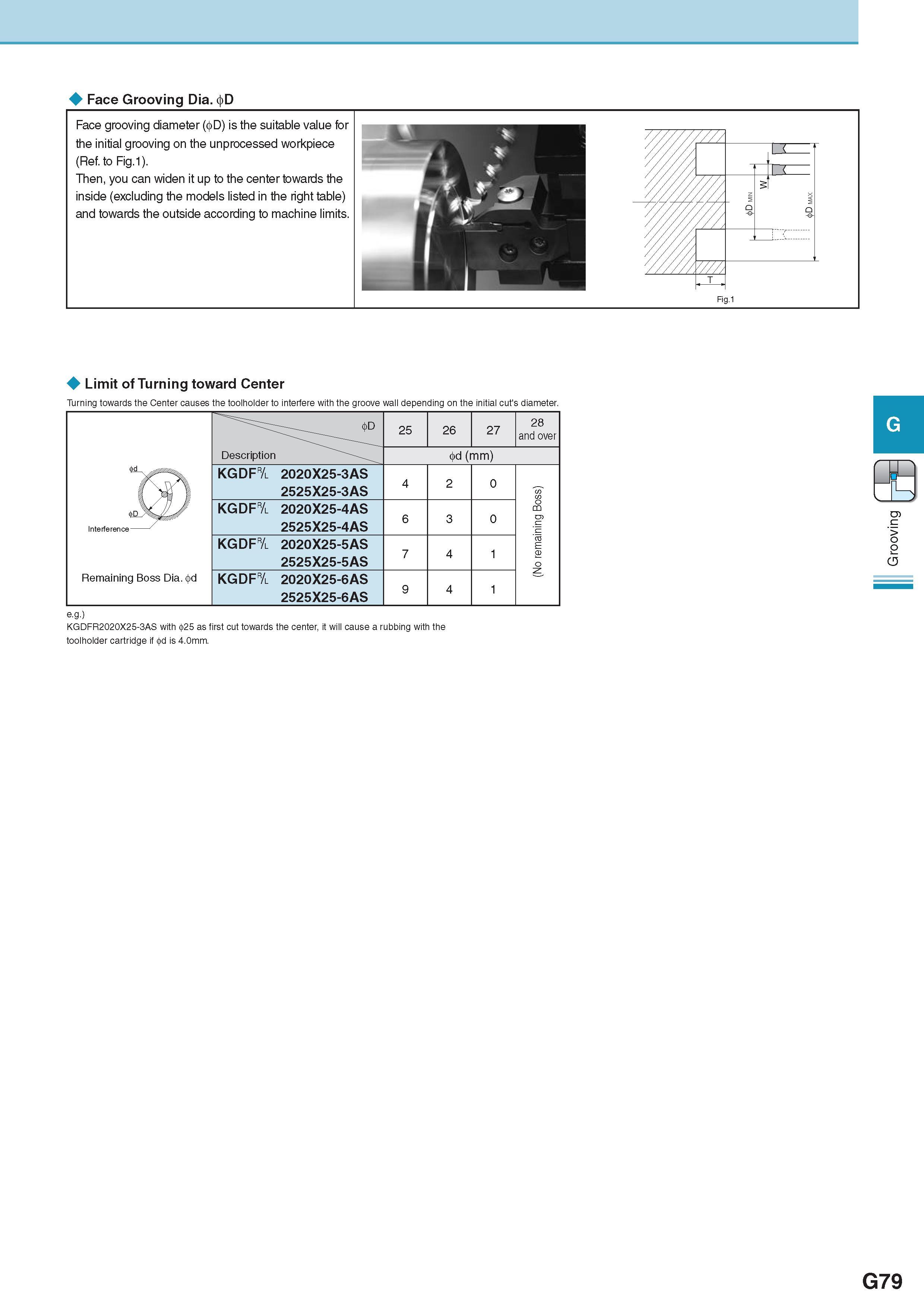

Face Grooving Dia. D Face grooving diameter (< >D) is the suitable value for the initial grooving on the unprocessed workpiece (Ref. to Fig.1). Then, you can widen it up to the center towards the inside (excluding the models listed in the right table) and towards the outside according to machine limits. Fig.1 Limit of Turning toward Center Turning towards the Center causes the toolholder to interfere with the groove wall depending on the initial cut's diameter. Remaining Boss Dia. 4 Description Обозначение 4D 25 26 27 28 and over 4>d (mm) KGDF& 2020X25-3AS 2525X25-3AS 4 2 0 (No remaining Boss) KGDF& 2020X25-4AS 2525X25-4AS 6 3 0 KGDF& 2020X25-5AS 2525X25-5AS 7 4 1 KGDF& 2020X25-6AS 2525X25-6AS 9 4 1 rj Interference e.g.) KGDFR2020X25-3AS with 425 as first cut towards the center, it will cause a rubbing with the toolholder cartridge if 4d is 4.0mm. G79 Grooving
