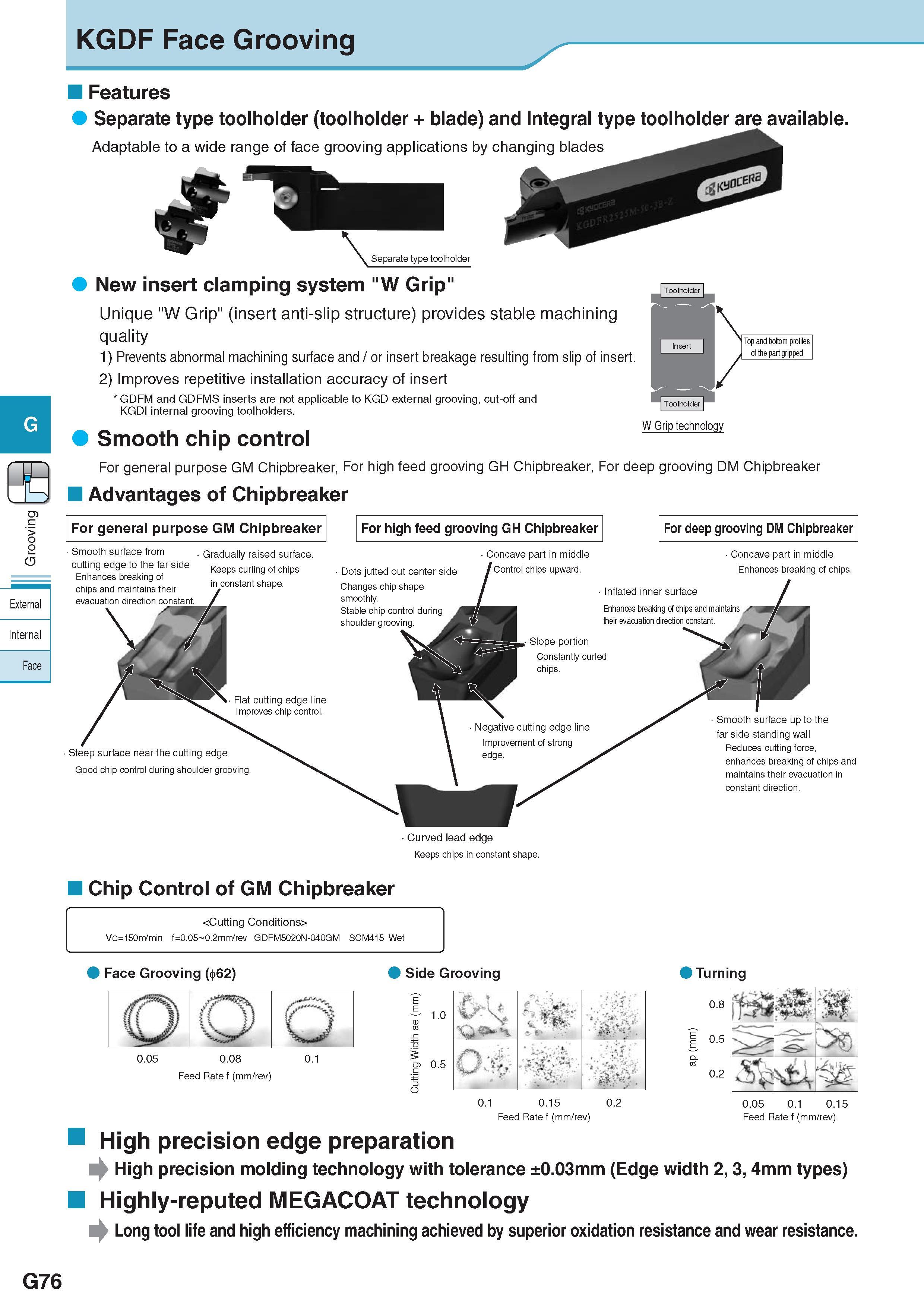

KGDF Face Grooving External Internal Face Features Separate type toolholder (toolholder + blade) and Integral type toolholder are available. Adaptable to a wide range of face grooving applications by changing blades Toolholder Top and bottom profiles of the part gripped New insert clamping system "W Grip" Unique "W Grip" (insert anti-slip structure) provides stable machining quality 1) Prevents abnormal machining surface and / or insert breakage resulting from slip of insert. 2) Improves repetitive installation accuracy of insert GDFM and GDFMS inserts are not applicable to KGD external grooving, cut-off and KGDI internal grooving toolholders. W Grip technology Smooth chip control For general purpose GM Chipbreaker, For high feed grooving GH Chipbreaker, For deep grooving DM Chipbreaker Стружколом сменной пластины Advantages of Chipbreaker Стружколом сменной пластины \ / For general purpose GM Chipbreaker Стружколом сменной пластины For high feed grooving GH Chipbreaker Стружколом сменной пластины For deep grooving DM Chipbreaker Стружколом сменной пластины Sm°oth surface from . Gradually raised surface. cutting edge to the far side Keeps curling of chips Enhances breaking of ...... in constant shape. chips and maintains their K evacuation direction constc Concave part in middle Control chips upward. Concave part in middle Enhances breaking of chips. Inflated inner surface Enhances breaking of chips and maintains their evacuation direction constant. Slope portion Constantly curled chips. Steep surface near the cutting edge Good chip control during shoulder grooving. Negative cutting edge line Improvement of strong edge. Smooth surface up to the far side standing wall Reduces cutting force, enhances breaking of chips and maintains their evacuation in constant direction. Curved lead edge Keeps chips in constant shape. Chip Control of GM Chipbreaker Стружколом сменной пластины Vc=150m/min f =0.05 0.2mm/rev GDFM5020N-040GM SCM415 Wet Face Grooving (4>62) Side Grooving Turning 0.05 0.08 0.1 Feed Rate f (mm/rev) 0.1 0.15 0.2 Feed Rate f (mm/rev) 0.05 0.1 0.15 Feed Rate f (mm/rev) High precision edge preparation High precision molding technology with tolerance ±0.03mm (Edge width 2, 3, 4mm types) Highly-reputed MEGACOAT technology Long tool life and high efficiency machining achieved by superior oxidation resistance and wear resistance. G G76
