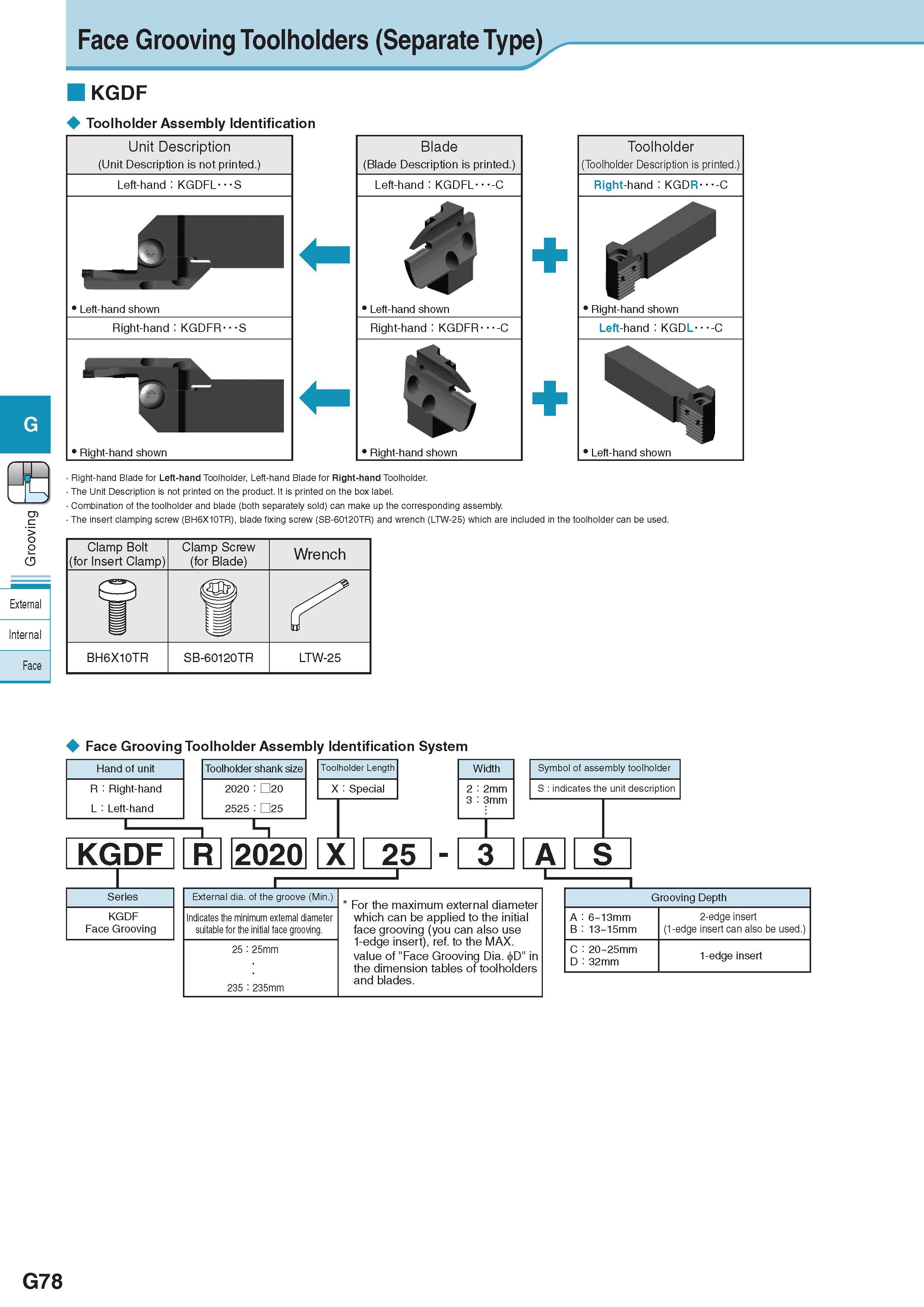

G > O o 5 External Internal Face Face Grooving Toolholders (Separate Type) KGDF Toolholder Assembly Identification Unit Description Обозначение (Unit Description Обозначение is not printed.) Left-hand : KGDFL -S Left-hand shown Right-hand : KGDFR -S Показано правое исполнение инструмента Blade (Blade Description Обозначение is printed.) Left-hand : KGDFL-C IT Left-hand shown Right-hand : KGDFR-C nr Показано правое исполнение инструмента + + Toolholder (Toolholder Description Обозначение is printed.) Right-hand : KGDR - -C Показано правое исполнение инструмента Left-hand : KGDL C Left-hand shown Right-hand Blade for Left-hand Toolholder, Left-hand Blade for Right-hand Toolholder. The Unit Description Обозначение is not printed on the product. It is printed on the box label. Combination of the toolholder and blade (both separately sold) can make up the corresponding assembly. The insert clamping screw (BH6X10TR), blade fixing screw (SB-60120TR) and wrench (LTW-25) which are included in the toolholder can be used. Clamp Bolt (for Insert Clamp) Clamp Screw (for Blade) Wrench f u BH6X10TR SB-60120TR LTW-25 Face Grooving Toolholder Assembly Identification System Hand of unit R : Right-hand L : Left-hand X Series KGDF Face Grooving Toolholder shank size 2020 : 20 2525 : 25 Toolholder Length X : Special Width 2 : 2mm 3 : 3mm Symbol of assembly toolholder S : indicates the unit description c 2020 X 25 - 3 A S External dia. of the groove (Min.) Indicates the minimum external diameter suitable for the initial face grooving. 25 : 25mm 235 : 235mm For the maximum external diameter which can be applied to the initial face grooving (you can also use 1-edge insert), ref. to the MAX. value of "Face Grooving Dia. D" in the dimension tables of toolholders and blades. Grooving Depth A : 6 13mm B : 13 15mm 2-edge insert (1-edge insert can also be used.) C : 20 25mm D: 32mm 1-edge insert G78
